B9E-150K lb N10 Double-Ended Shear Beam Load CellZemic B9E 150000 lb Double-Ended Shear Beam Load Cell (B9E-N10-150K-9B)
- Description
- Additional Information
- 01 / 03Double-Ended Shear Beam Load Cell
Double-Ended Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Zemic B9E-N10-150K-9B is the 150000 lb capacity Zemic B9E, a dual shear beam load cell, potted by adhesive inside, oil proof, waterproof and resistant to corrosive gas and media, for electronic truck scales, track scales, hopper scales and other electronic weighing devices, manufactured in stainless steel with IP67 ingress protection. This model is NTEP Class III L 10000.
150000 lbRated capacityStainless SteelMaterialIP67Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number B9E-N10-150K-9B Capacity 150000 lb Approval NTEP Class III L 10000 Rated output 3.0 ± 0.008 mV/V Dimensions 260.35 × 74.68 × 74.68 mm Material Stainless steel, potted by adhesive inside, dual shear beam Protection IP67 Signal Analog Input resistance 700 ± 7 Ω Output resistance 703 ± 4 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Cable 4-conductor shielded, 9 m, 5 mm diameter Wiring Input (+) red, Input (−) black, Output (+) green, Output (−) white Accuracy class N10 (NTEP Class III L, 10000 divisions) Maximum verification intervals (nmax) 10000 Mounting Double-ended: 2 × Ø60.96 mm end journals (Ø52.32 mm at the groove); R25.4 mm top center notch 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic B9E 150000 lb Double-Ended Shear Beam Load Cell (B9E-N10-150K-9B) 24223 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther B9E capacities.
Capacity Manufacturer part number SKU Approval Price 50000 lb B9E-N10-50K-9B 24217 NTEP Class III L 10000 $1,349.00 60000 lb B9E-N10-60K-9B 24218 NTEP Class III L 10000 $1,349.00 65000 lb B9E-N10-65K-9B 24219 NTEP Class III L 10000 $1,349.00 75000 lb B9E-N10-75K-9B 24220 NTEP Class III L 10000 $1,349.00 100000 lb B9E-N10-100K-9B 24221 NTEP Class III L 10000 $1,349.00 125000 lb B9E-N10-125K-9B 24222 NTEP Class III L 10000 $1,349.00 DIMENSIONSOutline dimensions.

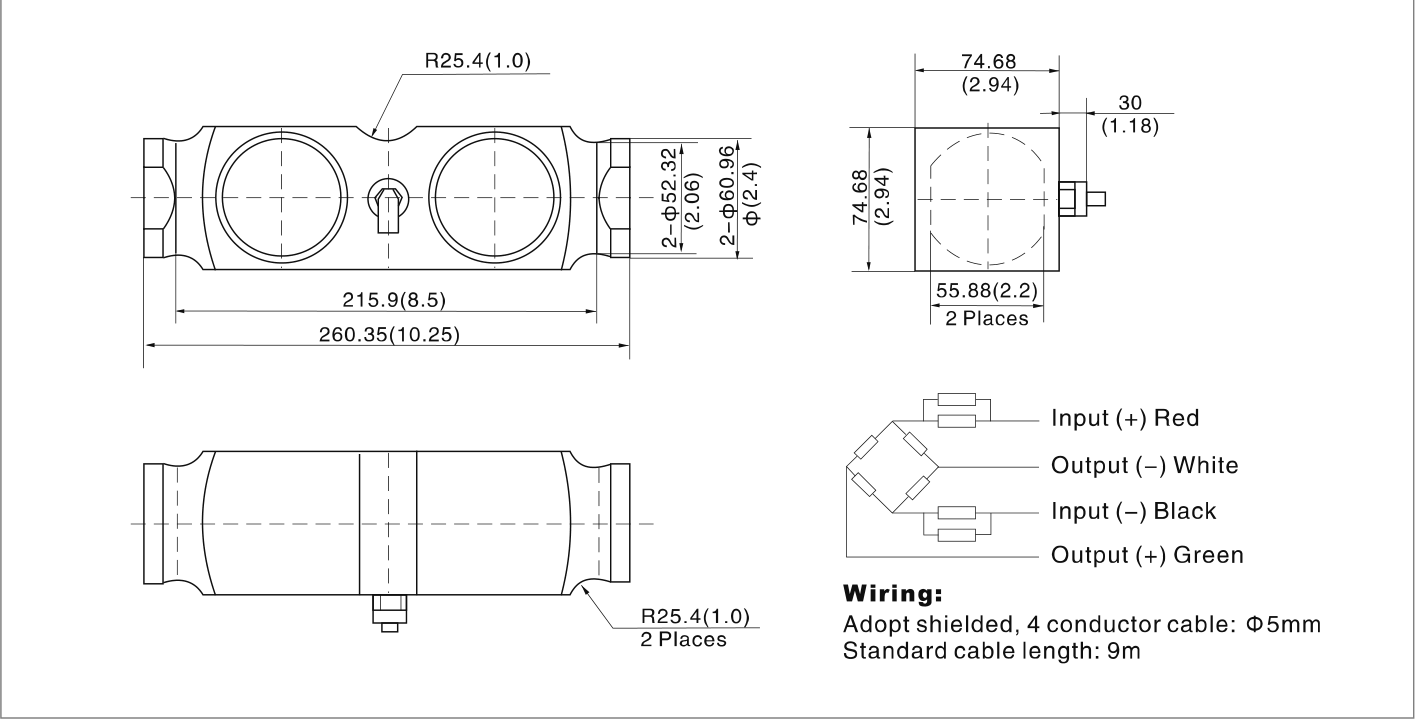

Source: Zemic B9E datasheet Signal Analog Protection class IP67 Material Stainless Steel Compensated temp range −10 to +40 °C Input impedance 700 ± 7 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 10000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 703 ± 4 Ω Rated capacity 150000 lb Rated output 3.0 ± 0.008 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.0 %FS Manufacturer Zemic Accuracy N10 Number of Wires 4 wires Manufacturer's Part Number B9E-N10-150K-9B Approval NTEP Short name B9E-150K lb N10 Double-Ended Shear Beam Load Cell Hero chips IP67; Stainless Steel; Analog signal; NTEP Class III L 10000; 4 wires
