Zemic BM11-C3-5KG-3B-SC 5 kg Shear Beam Load Cell
Zemic · Load cell

BM11 Shear Beam Load Cell · 5 kg · BM11-C3-5KG-3B-SC

SKU 23000
IP68; Stainless Steel; Analog signal; C3; 2 mV/V; NTEP
358.00
$358.00
  • 23000 - Zemic BM11-C3-5KG-3B-SC 5 kg Shear Beam Load Cell
  • Type: Shear Beam Load Cell
  • Manufacturer part number: BM11-C3-5KG-3B-SC
  • Capacity: 5 kg
  • Material: Stainless steel
  • Protection: IP68
  • Approval: C3 (excluded from OIML) · NTEP 07-020A1

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 03Shear Beam Load Cell

    Shear Beam Load Cell for confirmed-fit replacement and scale builds.

    The Zemic BM11-C3-5KG-3B-SC is a 5 kg capacity variation of the Zemic BM11 shear beam load cell family, manufactured in stainless steel with IP68 ingress protection. This model is accuracy class C3 (excluded from OIML R60 approval at this capacity).

    5 kg
    Rated capacity
    Stainless steel
    Material
    IP68
    Protection
    02 / 03Technical data

    Verified specifications for this SKU.

    ManufacturerZemic
    Manufacturer part numberBM11-C3-5KG-3B-SC
    Capacity5 kg
    ApprovalC3 (excluded from OIML) · NTEP 07-020A1
    Rated output2.0 ± 0.02 mV/V
    DimensionsD 23 mm x H 20 mm, mounting hole 8.2 mm
    MaterialStainless steel
    ProtectionIP68
    SignalAnalog
    Input impedance460 ± 50 Ω
    Output impedance350 ± 3.5 Ω
    Insulation resistance≥ 5000 MΩ @ 50 VDC
    Recommended excitation5 ~ 12 VDC
    Maximum excitation18 VDC
    Compensated temperature−10 to +40 °C
    Operating temperature−35 to +65 °C
    Safe overload150 %FS
    Ultimate overload300 %FS
    03 / 03Part number reference

    Order code and fit FAQ.

    ProductOrder code
    Zemic BM11-C3-5KG-3B-SC 5 kg Shear Beam Load Cell23000

    Is the SKU enough to confirm replacement?

    Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

    Can WeightechUSA help identify a match?

    Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

    Talk to a WeightechUSA load-cell specialist.

    Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

    Email SalesView DatasheetCall +1 (954) 666-0877 × 305

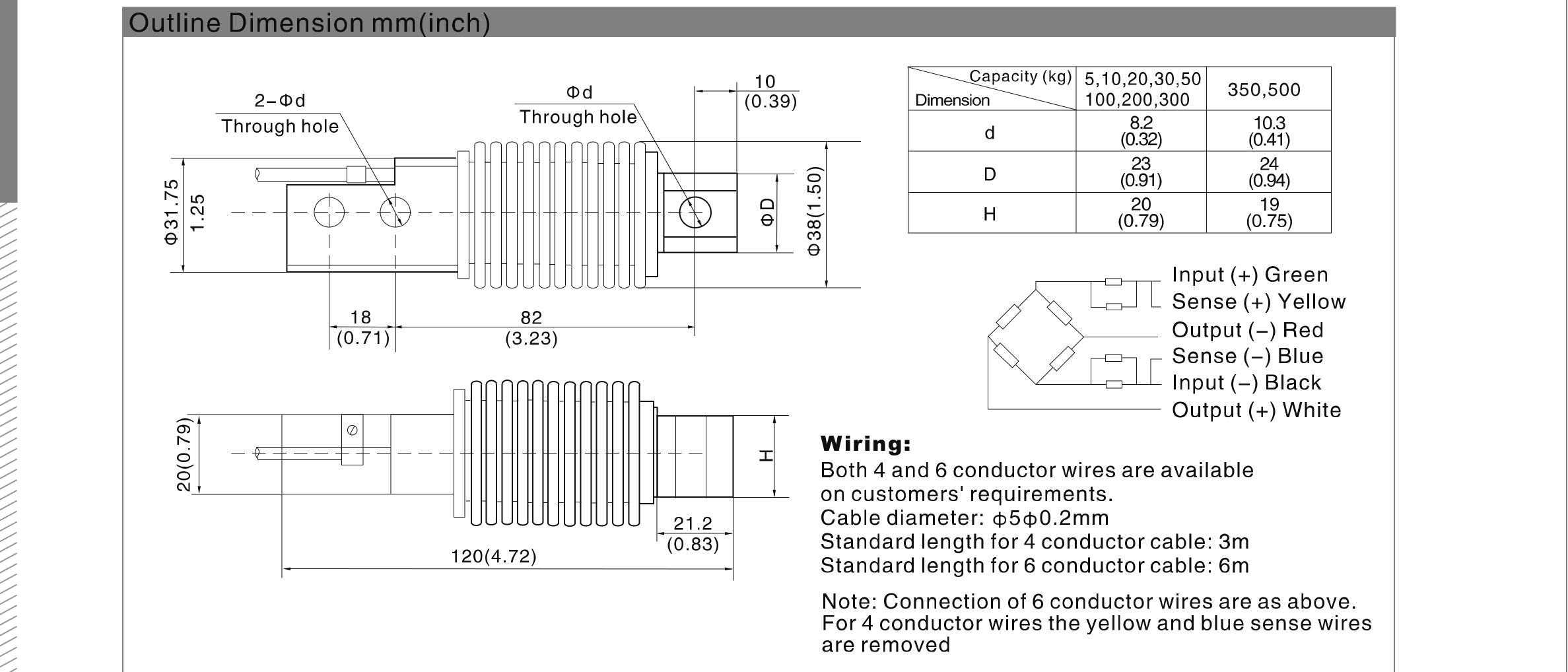

    DIMENSIONS

    Outline dimensions.

    Zemic BM11-C3-5KG-3B-SC shear beam load cell dimensions drawing
    Source: Zemic BM11 datasheet
