Zemic BM14A-C3-40t-10B-SC 40 t Compression Load Cell
Zemic · Load cell

BM14A Compression Load Cell · 40000 kg · BM14A-C3-40t-10B-SC

SKU 15102
921.00
☎ x305
$921.00
  • 15102 - Zemic BM14A-C3-40t-10B-SC 40 t Compression Load Cell
  • Type: Compression Load Cell
  • Manufacturer part number: BM14A-C3-40t-10B-SC
  • Capacity: 40 t
  • Material: Stainless steel
  • Protection: IP68 (EN 60529)
  • Approval: OIML R60 C3

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 03Compression Load Cell

    Compression Load Cell for confirmed-fit replacement and scale builds.

    The Zemic BM14A-C3-40t-10B-SC is a 40 t capacity variation of the Zemic BM14A compression load cell family, manufactured in stainless steel with IP68 (EN 60529) ingress protection. This model is OIML R60 C3.

    40 t
    Rated capacity
    Stainless steel
    Material
    IP68 (EN 60529)
    Protection
    02 / 03Technical data

    Verified specifications for this SKU.

    ManufacturerZemic
    Manufacturer part numberBM14A-C3-40t-10B-SC
    Capacity40 t
    ApprovalOIML R60 C3
    Rated output2.0 ± 0.002 mV/V
    Dimensions82.5 x 127 mm
    MaterialStainless steel
    ProtectionIP68 (EN 60529)
    SignalAnalog
    Input impedance450 ± 4.5 Ω
    Output impedance480 ± 4.8 Ω
    Insulation resistance≥ 5000 MΩ @ 50 VDC
    Zero balance≤ ± 1.0 %FS
    Compensated temperature−10 to +40 °C
    Operating temperature−35 to +65 °C
    Recommended excitation5 ~ 12 VDC
    Maximum excitation18 VDC
    Safe overload150 %FS
    Ultimate overload300 %FS
    03 / 03Part number reference

    Order code and fit FAQ.

    ProductOrder code
    Zemic BM14A-C3-40t-10B-SC 40 t Compression Load Cell15102

    Is the SKU enough to confirm replacement?

    Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

    Can WeightechUSA help identify a match?

    Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

    Talk to a WeightechUSA load-cell specialist.

    Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

    Email SalesView DatasheetCall +1 (954) 666-0877 × 305

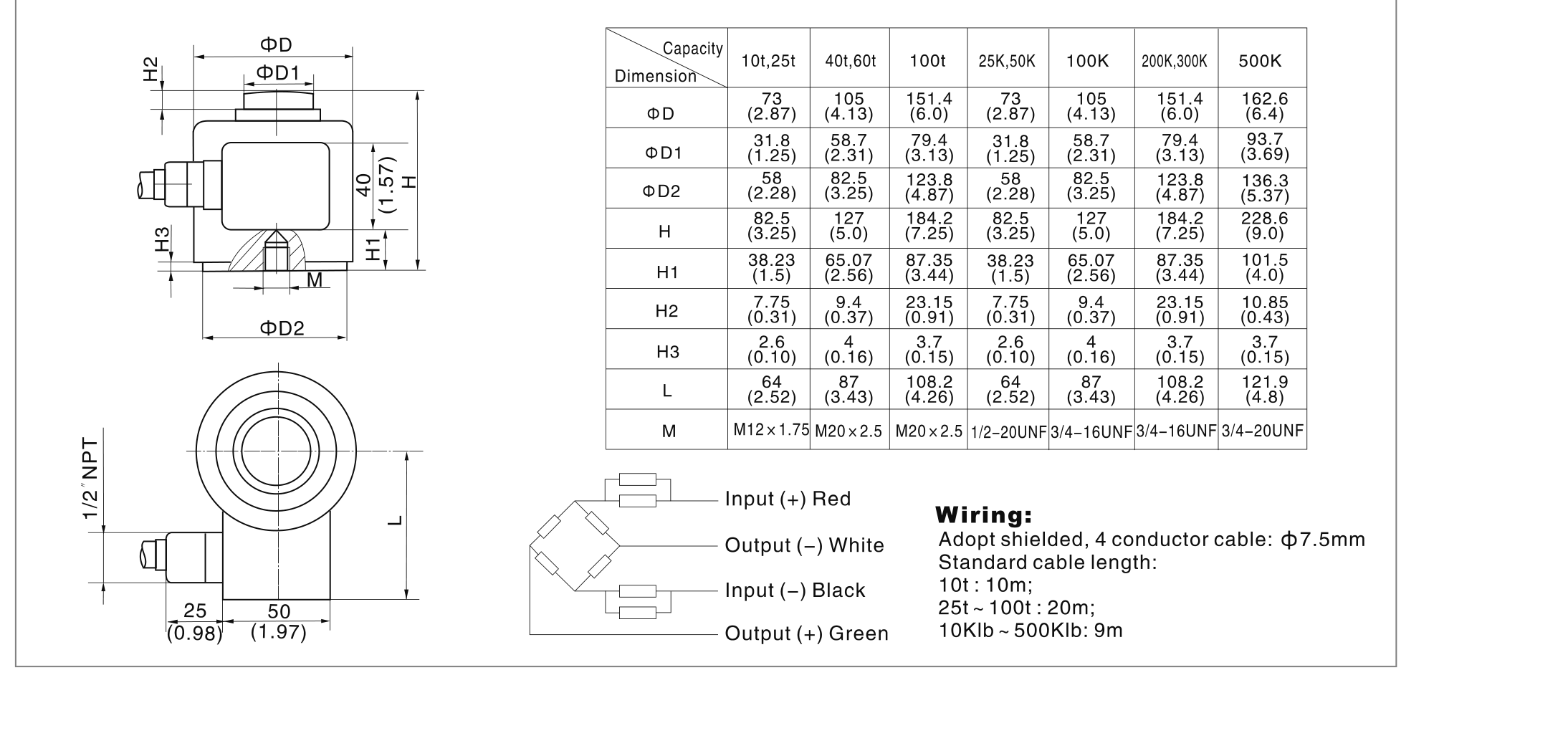

    DIMENSIONS

    Outline dimensions.

    Zemic BM14A-C3-40t-10B-SC compression load cell dimensions drawing
    Source: Zemic BM14A datasheet
