Zemic · Load cell

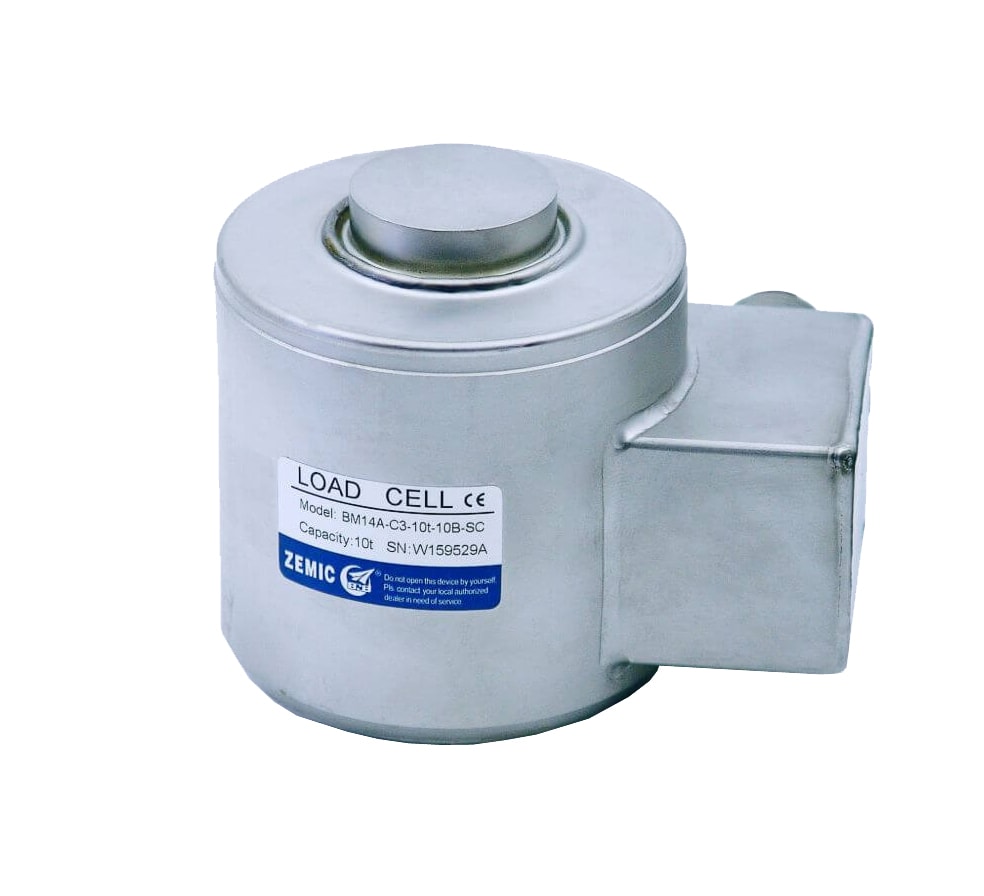

BM14A Compression Load Cell · 10000 lb · BM14A-N10-10K-9YBZemic BM14A-N10-10K-9YB 10,000 lb Compression Load Cell
SKU bm14a-5
10,000 lb; IP68; Stainless Steel; Analog signal
899.00
- Description
- Additional Information
- 01 / 03Compression Load Cell
Compression Load Cell for confirmed-fit replacement and scale builds.
The Zemic BM14A-N10-10K-9YB is a 10,000 lb capacity variation of the Zemic BM14A compression load cell family, manufactured in stainless steel with IP68 (EN 60529) ingress protection.
10,000 lbRated capacityStainless steelMaterialIP68 (EN 60529)Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number BM14A-N10-10K-9YB Capacity 10,000 lb Rated output 2.0 ± 0.002 mV/V Material Stainless steel Protection IP68 (EN 60529) Signal Analog Input impedance 450 ± 4.5 Ω Output impedance 480 ± 4.8 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ± 1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 ~ 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic BM14A-N10-10K-9YB 10,000 lb Compression Load Cell bm14a-5 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305DIMENSIONSOutline dimensions.
Source: Zemic BM14A datasheet Signal Analog Protection class IP68 Material Stainless Steel Input impedance 450 ± 5 Ω Internal Battery -- Excitation voltage 5 ~ 12 V Maximum safe overload 150 %FS Output impedance 480 ± 5 Ω Rated capacity 10,000 lb Rated output 2.0 ± 0.002 mV/V Ultimate central overload 300 %FS Manufacturer Zemic Capacity 10000 lb Interchangeable Artech 90310, Rice Lake RLCSP1 , Sensortronics 65088-1000, Totalcomp TCSP1, Revere CSP, Coti CP26S5 Manufacturer's Part Number BM14A-N10-10K-9YB Short name BM14A Compression Load Cell · 10000 lb · BM14A-N10-10K-9YB Hero chips 10,000 lb; IP68; Stainless Steel; Analog signal
