BM14C-50t C3 Compression Load CellZemic BM14C 50 t Compression Load Cell (BM14C-C3-50t-15B6)
- Description
- Additional Information
- 01 / 03Compression Load Cell
Compression Load Cell for confirmed-fit replacement and scale builds.
The Zemic BM14C-C3-50t-15B6 is the 50 t capacity Zemic BM14C, a hermetically welded stainless steel column compression load cell with an anti-reversal design and good self-aligning ability, for electronic platform scales, automobile testing facilities, hopper scales and other electronic weighing devices, manufactured in stainless steel with IP68 ingress protection. This model is OIML R60 C3.
50 tRated capacityStainless SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number BM14C-C3-50t-15B6 Capacity 50 t Approval OIML R60 C3 Rated output 2.0 ± 0.002 mV/V Dimensions Ø88.9 × 118.5 mm Material Stainless steel, hermetically welded Protection IP68 Signal Analog Input resistance 700 ± 7 Ω Output resistance 703 ± 4 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Cable 4-conductor shielded, 15 m standard, 5 mm diameter Wiring Input (+) red, Output (−) white, Input (−) black, Output (+) green Certificates PTB approval D09-07.03 Revision 1 Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.016 %FS Temperature effect on sensitivity ≤ ±0.011 %FS/10 °C Temperature effect on zero ≤ ±0.015 %FS/10 °C 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic BM14C 50 t Compression Load Cell (BM14C-C3-50t-15B6) 24243 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther BM14C capacities.

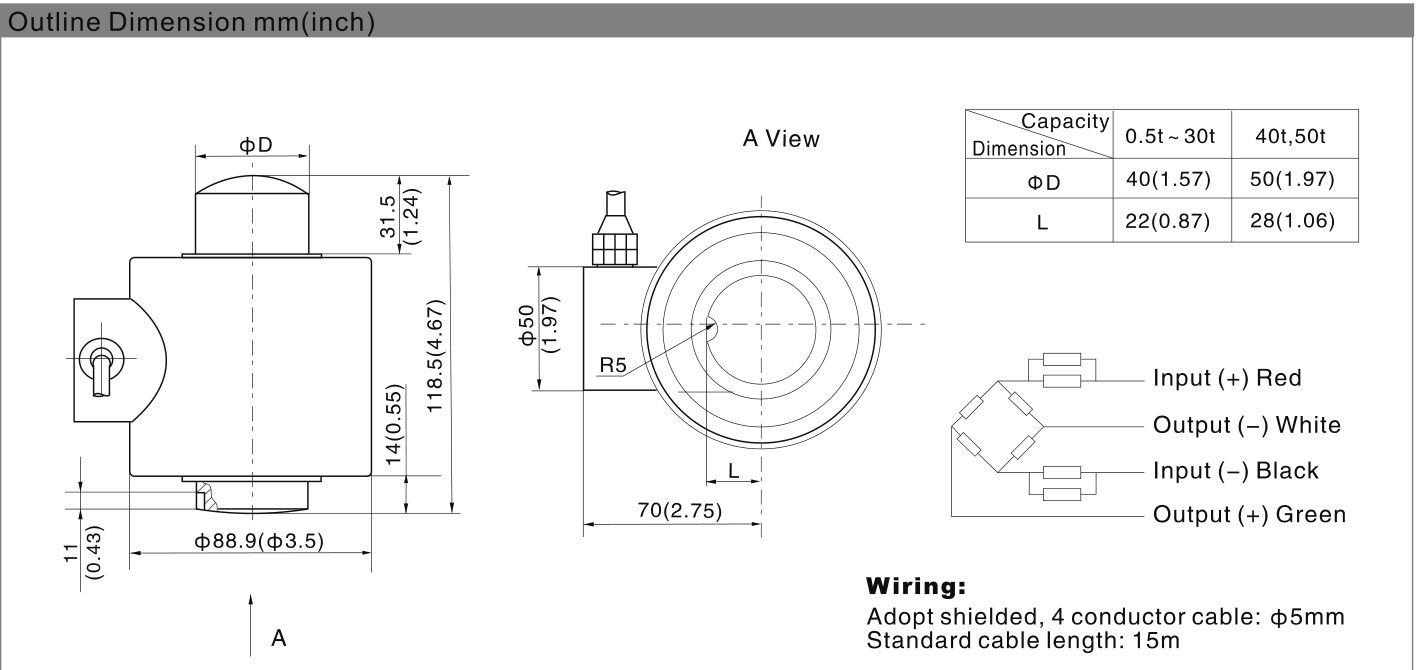

Capacity Manufacturer part number SKU Approval Price 10 t BM14C-C3-10t-15B6 24238 OIML R60 C3 $603.00 20 t BM14C-C3-20t-15B6 24239 OIML R60 C3 $603.00 25 t BM14C-C3-25t-15B6 24240 OIML R60 C3 $603.00 30 t BM14C-C3-30t-15B6 24241 OIML R60 C3 $603.00 40 t BM14C-C3-40t-15B6 24242 OIML R60 C3 $603.00 DIMENSIONSOutline dimensions.
Source: Zemic BM14C datasheet Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Input impedance 700 ± 7 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 703 ± 4 Ω Rated capacity 50 t Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.0 %FS Manufacturer Zemic Accuracy C3 Number of Wires 4 wires Manufacturer's Part Number BM14C-C3-50t-15B6 Approval OIML R60 C3 Short name BM14C-50t C3 Compression Load Cell Hero chips IP68; Stainless Steel; Analog signal; OIML R60 C3; 4 wires
