BM6G Single Point Load Cell · 50 kg SE · BM6G-C3-50kgSE-3BZemic BM6G-C3-50kgSE-3B 50 kg SE Single Point Load Cell
SKU 11600
IP69K / IP68; Stainless Steel; Analog signal; OIML R60 C3; 2.0 ± 0.2 mV/V
613.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Zemic BM6G-C3-50kgSE-3B is a 50 kg SE capacity variation of the Zemic BM6G single point load cell family, manufactured in stainless steel with IP68/IP69K ingress protection. This model is OIML R60 C3.
50 kg SERated capacityStainless steelMaterialIP68/IP69KProtection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number BM6G-C3-50kgSE-3B Capacity 50 kg SE Approval OIML R60 C3 Rated output 2.0 ± 0.2 mV/V Dimensions 150 x 25 x 40 mm Material Stainless steel Protection IP68/IP69K Signal Analog Output sensitivity 2.0 ± 0.2 mV/V Max platform size 800 x 800 mm (100–500 kg) / 400 x 400 mm (10–100 kg SE) Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ± 2.0 %FS Safe overload 150 %FS Ultimate overload 300 %FS Recommended excitation 5 - 12 VDC Maximum excitation 18 VDC Compensated temperature -10 to +40 °C Operating temperature -35 to +65 °C Cable length 3m 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic BM6G-C3-50kgSE-3B 50 kg SE Single Point Load Cell 11600 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

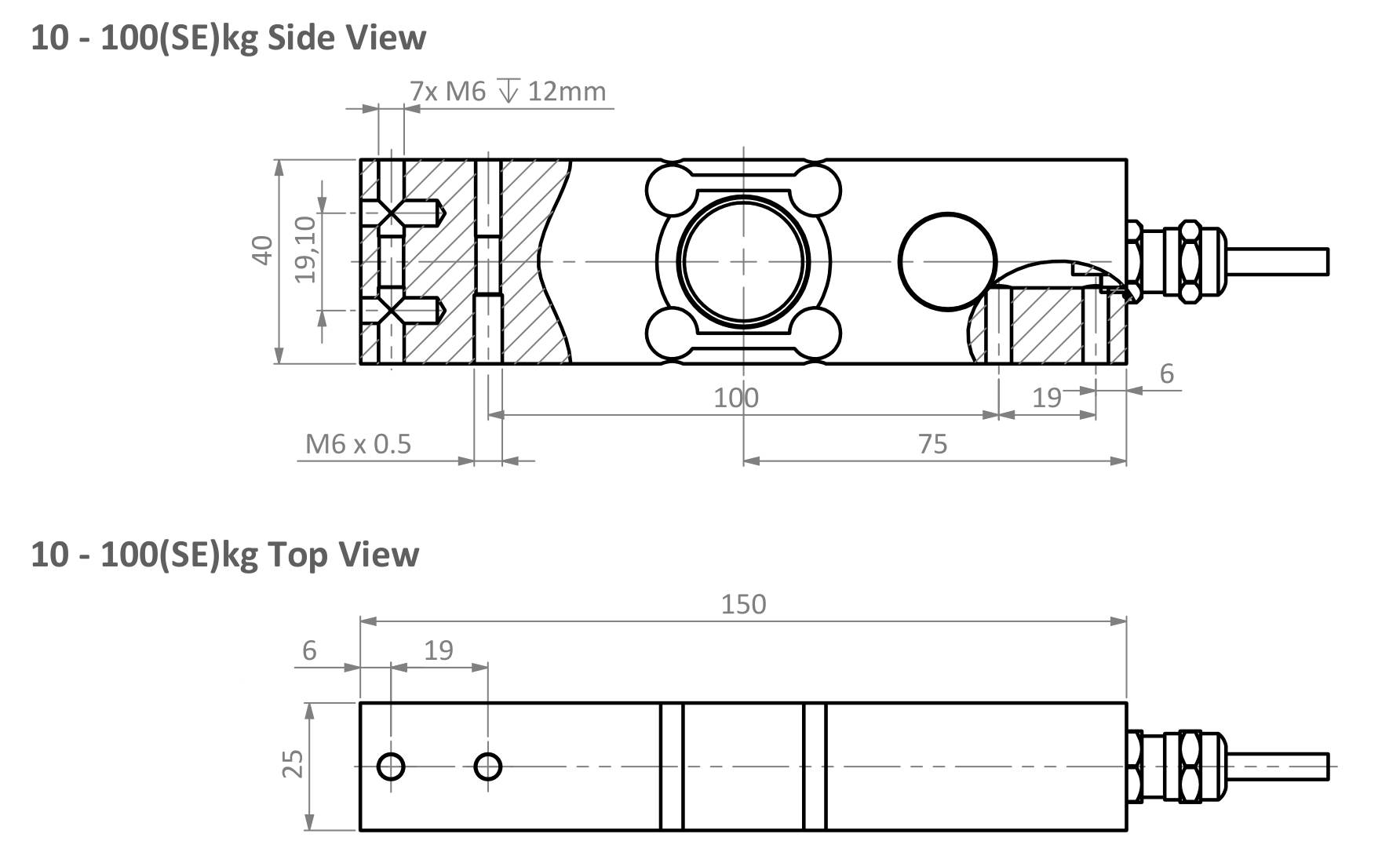

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68, IP69K Material Stainless Steel Combined error ≤ ± 0.023 %FS Creep error 20mins ≤ ± 0.0245 %FS / 30 min Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum safe overload 150 % of R.C. Max platform size 800 x 800 mm (100–500 kg) / 400 x 400 mm (10–100 kg SE) NTEP/OIML OIML R60 C3 · TC8011 Revision 0 · C of C no R60/2000-NL1-11.29 Operating temp range -35 to +65 °C Rated capacity 50 kg SE Rated output 2.0 ± 0.2 mV/V Recommended excitation 5 - 12 VDC Recommended torque 10 - 100(SE)kg: 10.0 Nm; 5100 - 500kg: 25 Nm Sensitivity 2.0 ± 0.2 mV/V Storage temp range -40 to +70 °C Zero balance ≤ ± 2.0 %FS Manufacturer Zemic Cable type Shielded, 6 conductor cable (10-100(SE)kg) , 4 conductor cable (100-500kg), conductor AWG 22 Cable length 3m Accuracy C3 Manufacturer's Part Number BM6G-C3-50kgSE-3B Approval OIML R60 C3 Short name BM6G Single Point Load Cell · 50 kg SE · BM6G-C3-50kgSE-3B Hero chips IP69K / IP68; Stainless Steel; Analog signal; OIML R60 C3; 2.0 ± 0.2 mV/V
