H2F-10t C2 Spoke Type Load CellZemic H2F 10 t Spoke Type Load Cell (H2F-C2-10t-4T6)
SKU 24125
IP67; Nickel-Plated Alloy Steel; Analog signal; 6 wires
760.00
- Description
- Additional Information
- 01 / 03Spoke Type Load Cell
Spoke Type Load Cell for confirmed-fit replacement and scale builds.
The Zemic H2F-C2-10t-4T6 is the 10 t capacity Zemic H2F, a high-accuracy spoke type load cell, suitable for hanging, hopper and other electronic weighing devices, manufactured in nickel-plated alloy steel with IP67 ingress protection.
10 tRated capacityNickel-Plated Alloy SteelMaterialIP67Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number H2F-C2-10t-4T6 Capacity 10 t Rated output 2.0 ± 0.01 mV/V Dimensions Ø 160 × 63 mm Material Nickel-plated alloy steel, spoke type Protection IP67 (EN 60529) Signal Analog Input resistance 770 ± 30 Ω Output resistance 700 ± 7 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ±1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Wiring Excitation (+) red, Excitation (−) yellow, Signal (+) blue, Signal (−) white, Sense (+) brown, Sense (−) black Accuracy class C2 (not OIML approved) Maximum verification intervals (nmax) 2000 Minimum verification interval (vmin) Emax/5000 Combined error ≤ ±0.030 %FS Creep (30 min) ≤ ±0.023 %FS Temperature effect on sensitivity ≤ ±0.017 %FS/10 °C Temperature effect on zero ≤ ±0.029 %FS/10 °C Cable 6-conductor shielded PVC, AWG 24, 4 m, 5.0 mm diameter, shield not connected to element Mounting 4 × mounting slots, 10.4 mm wide 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic H2F 10 t Spoke Type Load Cell (H2F-C2-10t-4T6) 24125 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther H2F capacities.

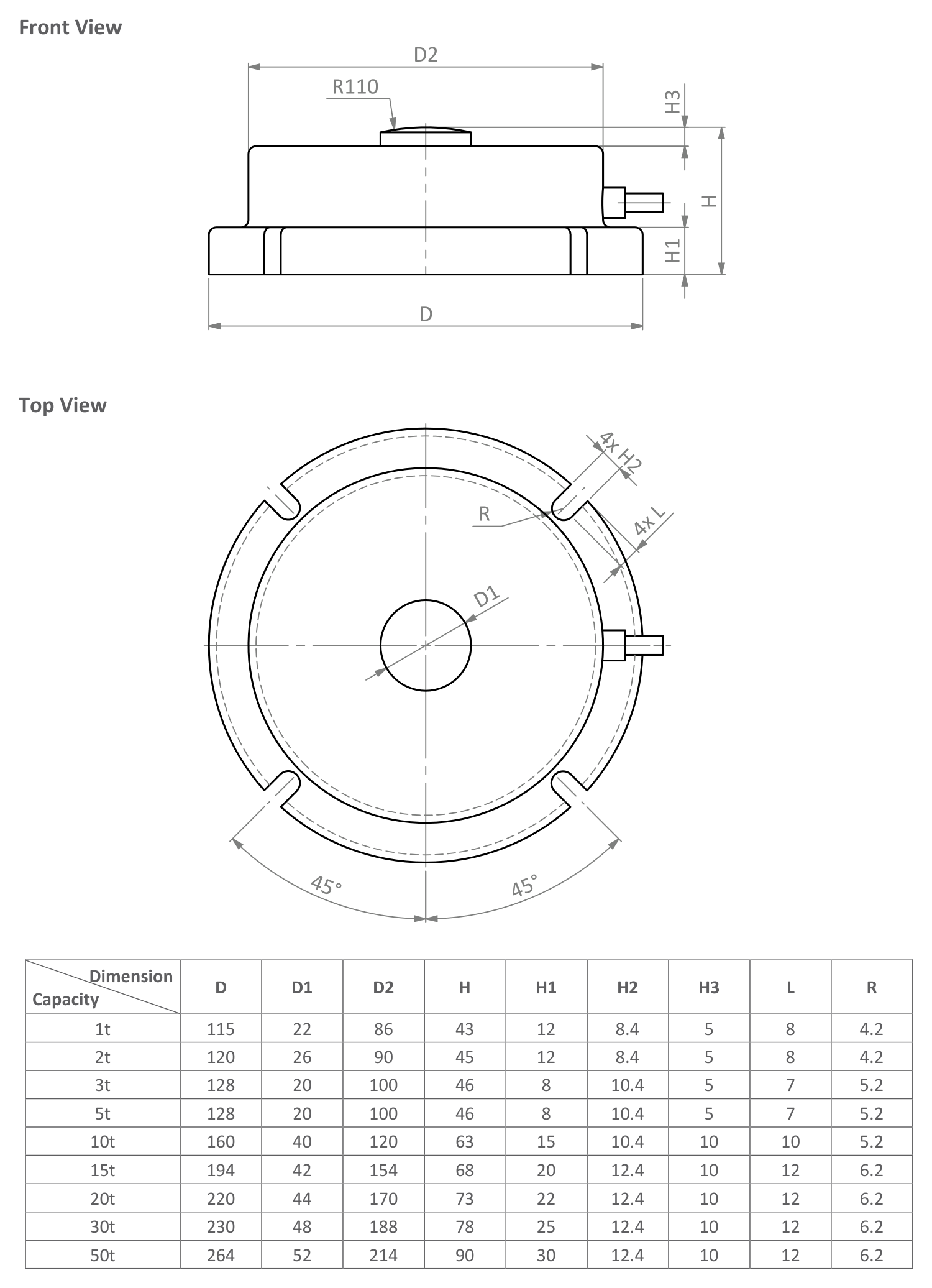

Capacity Manufacturer part number SKU Price 1 t H2F-C2-1.0t-3T6 24121 $439.00 2 t H2F-C2-2.0t-3T6 24122 $439.00 3 t H2F-C2-3.0t-3T6 24123 $439.00 5 t H2F-C2-5.0t-4T6 24124 $439.00 DIMENSIONSOutline dimensions.
Source: Zemic H2F datasheet Signal Analog Protection class IP67 Material Nickel-Plated Alloy Steel Combined error ≤ ±0.030 %FS (C2) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.023 %FS / 30 min (C2) Input impedance 770 ± 30 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 2000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 700 ± 7 Ω Rated capacity 10 t Rated output 2.0 ± 0.01 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance ≤ ±1.0 %FS Manufacturer Zemic Accuracy C2 Number of Wires 6 wires Manufacturer's Part Number H2F-C2-10t-4T6 Short name H2F-10t C2 Spoke Type Load Cell Hero chips IP67; Nickel-Plated Alloy Steel; Analog signal; 6 wires
