Zemic H3 15000 lb S-Type Load Cell (H3-N10-15K-6YB)
Zemic · Load cell

H3-15K lb N10 S-Type Load Cell

SKU 24133
IP67; Alloy Steel; Analog signal; NTEP Class III L 10000; 4 wires
492.00
$492.00
  • 24133 - Zemic H3 15000 lb S-Type Load Cell (H3-N10-15K-6YB)
  • Type: S-Type Load Cell
  • Manufacturer part number: H3-N10-15K-6YB
  • Capacity: 15000 lb
  • Material: Alloy Steel
  • Protection: IP67
  • Approval: NTEP Class III L 10000

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 03S-Type Load Cell

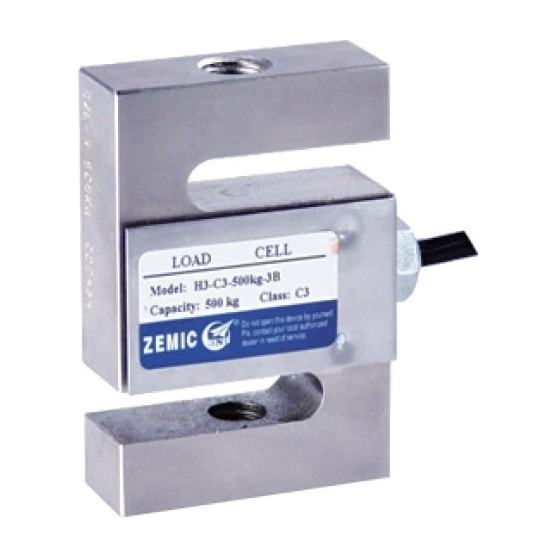

    S-Type Load Cell for confirmed-fit replacement and scale builds.

    The Zemic H3-N10-15K-6YB is the 15000 lb capacity Zemic H3, an S-beam load cell for tension or compression loading, sealed by adhesive inside, for crane scales, mechanical conversion scales, hopper scales and other electronic weighing devices, manufactured in alloy steel with IP67 ingress protection. This model is NTEP Class III L 10000.

    15000 lb
    Rated capacity
    Alloy Steel
    Material
    IP67
    Protection
    02 / 03Technical data

    Verified specifications for this SKU.

    ManufacturerZemic
    Manufacturer part numberH3-N10-15K-6YB
    Capacity15000 lb
    ApprovalNTEP Class III L 10000
    Rated output3.0 ± 0.008 mV/V
    Dimensions139.7 × 34.95 × 101.6 mm
    MaterialAlloy steel, sealed by adhesive inside, S-beam
    ProtectionIP67
    SignalAnalog
    Input resistance350 ± 3.5 Ω
    Output resistance351 ± 2.0 Ω
    Insulation resistance≥ 5000 MΩ @ 50 VDC
    Zero balance1.0 %FS
    Compensated temperature−10 to +40 °C
    Operating temperature−35 to +65 °C
    Recommended excitation5 to 12 VDC
    Maximum excitation18 VDC
    Safe overload150 %FS
    Ultimate overload300 %FS
    Cable4-conductor shielded, 6 m, 5 mm diameter
    WiringInput (+) red, Input (−) black, Output (+) green, Output (−) white
    Accuracy classN10 (NTEP Class III L)
    Maximum verification intervals (nmax)10000
    Minimum verification interval (vmin)Emax/50000
    CertificatesNTEP Certificate of Conformance 06-099A2
    Mounting2 × 1-14UNS threaded holes
    03 / 03Part number reference

    Order code and fit FAQ.

    ProductOrder code
    Zemic H3 15000 lb S-Type Load Cell (H3-N10-15K-6YB)24133

    Is the SKU enough to confirm replacement?

    Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

    Can WeightechUSA help identify a match?

    Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

    Talk to a WeightechUSA load-cell specialist.

    Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

    Email SalesView DatasheetCall +1 (954) 666-0877 × 305
    CAPACITY TABLE

    Other H3 capacities.

    CapacityManufacturer part numberSKUApprovalPrice
    2500 lbH3-N10-2.5K-6YBNTEP Class III L 10000$239.00
    3000 lbH3-N10-3K-6YBNTEP Class III L 10000$239.00
    10000 lbH3-N10-10K-6YBNTEP Class III L 10000$279.00
    DIMENSIONS

    Outline dimensions.

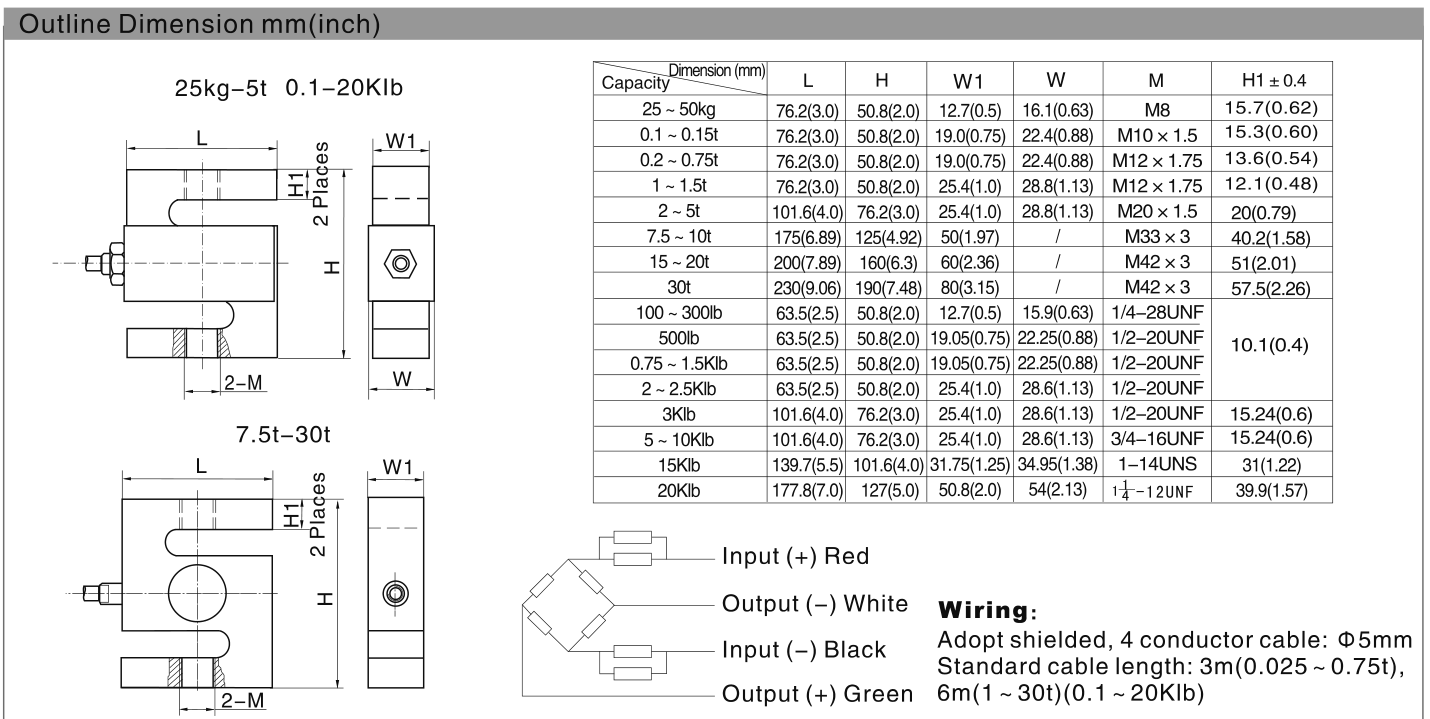

    Zemic H3 15000 lb S-Type Load Cell (H3-N10-15K-6YB) outline dimensions drawing
    Source: Zemic H3 datasheet
