H3F-1K lb N5 S-Type Load CellZemic H3F 1000 lb S-Type Load Cell (H3F-N5-1K-6YT)
SKU 24146
IP67; Nickel-Plated Alloy Steel; Analog signal; NTEP Class III 5000; 4 wires
223.00
- Description
- Additional Information
- 01 / 03S-Type Load Cell
S-Type Load Cell for confirmed-fit replacement and scale builds.
The Zemic H3F-N5-1K-6YT is the 1000 lb capacity Zemic H3F, an S-beam load cell for tension and compression applications, suitable for hanging, hopper and other weighing devices, manufactured in nickel-plated alloy steel with IP67 ingress protection. This model is NTEP Class III 5000.
1000 lbRated capacityNickel-Plated Alloy SteelMaterialIP67Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number H3F-N5-1K-6YT Capacity 1000 lb Approval NTEP Class III 5000 Rated output 3.0 ± 0.008 mV/V Dimensions 50.8 × 20.6 × 76.2 mm Material Nickel-plated alloy steel, S-beam Protection IP67 (EN 60529) Signal Analog Input resistance 350 ± 3.5 Ω Output resistance 351 ± 2.0 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ±1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Cable 4-conductor shielded polyurethane, AWG 22, 6 m, 5.0 mm diameter, shield not connected to element Wiring Input (+) red, Input (−) black, Output (+) green, Output (−) white Accuracy class N5 (NTEP Class III, 5000 divisions) Maximum verification intervals (nmax) 5000 Mounting 2 × 1/2-20UNF-2B threaded holes 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic H3F 1000 lb S-Type Load Cell (H3F-N5-1K-6YT) 24146 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther H3F capacities.

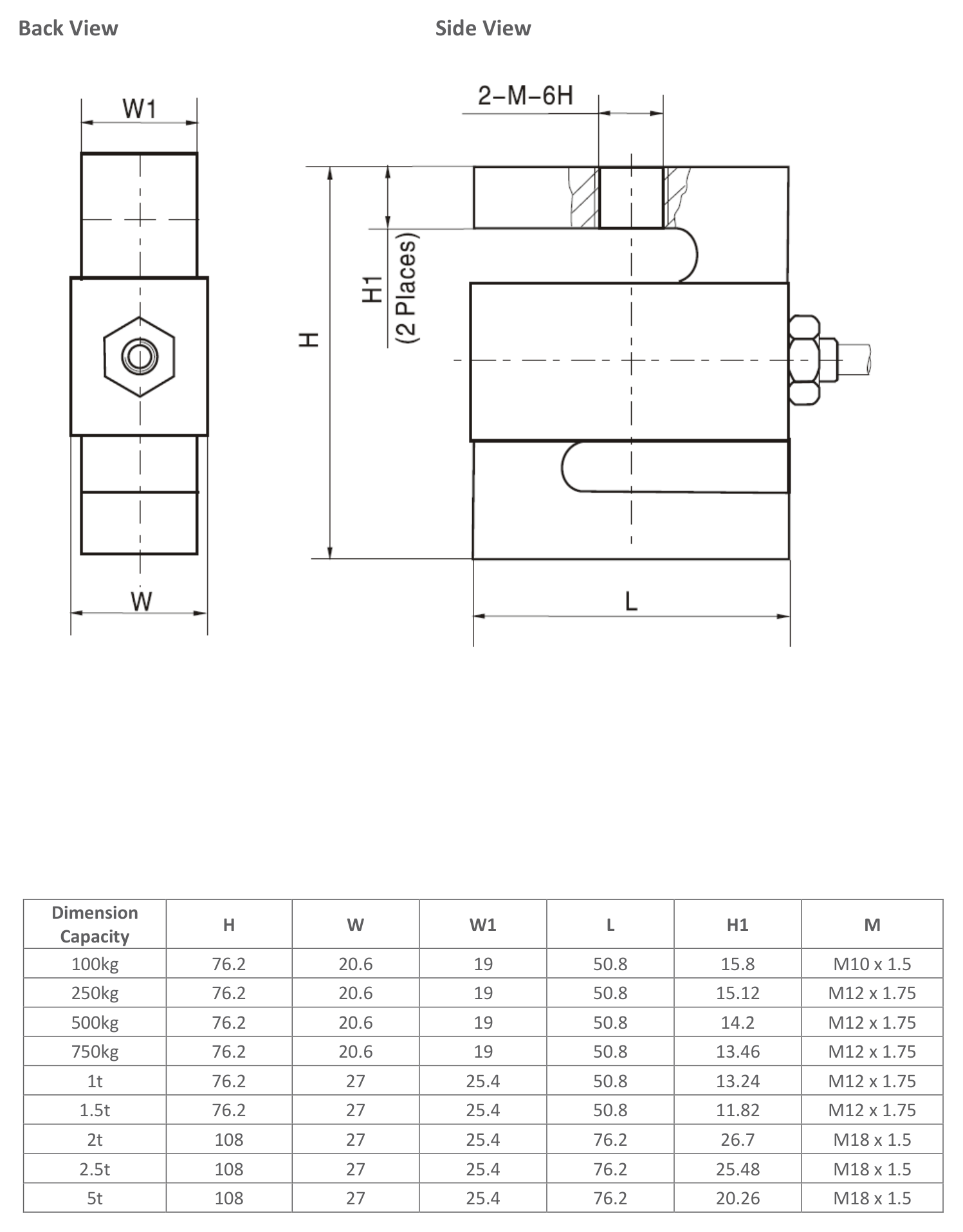

Capacity Manufacturer part number SKU Approval Price 100 kg H3F-C3-100kg-6T 24134 — $223.00 250 kg H3F-C3-250kg-6T 24135 — $223.00 500 kg H3F-C3-500kg-6T 24136 — $223.00 750 kg H3F-C3-750kg-6T 24137 — $223.00 1 t H3F-C3-1.0t-6T 24138 — $239.00 1.5 t H3F-C3-1.5t-6T 24139 — $239.00 2 t H3F-C3-2.0t-6T 24140 — $279.00 2.5 t H3F-C3-2.5t-6T 24141 — $279.00 5 t H3F-C3-5.0t-6T 24142 — $279.00 250 lb H3F-N5-250-6YT 24143 NTEP Class III 5000 $223.00 500 lb H3F-N5-500-6YT 24144 NTEP Class III 5000 $223.00 750 lb H3F-N5-750-6YT 24145 NTEP Class III 5000 $223.00 1500 lb H3F-N5-1.5K-6YT 24147 NTEP Class III 5000 $223.00 2000 lb H3F-N5-2K-6YT 24148 NTEP Class III 5000 $239.00 2500 lb H3F-N5-2.5K-6YT 24149 NTEP Class III 5000 $239.00 3000 lb H3F-N5-3K-6YT 24150 NTEP Class III 5000 $239.00 5000 lb H3F-N5-5K-6YT 24151 NTEP Class III 5000 $279.00 7500 lb H3F-N5-7.5K-6YT 24152 NTEP Class III 5000 $279.00 10000 lb H3F-N5-10K-6YT 24153 NTEP Class III 5000 $279.00 15000 lb H3F-N5-15K-6YT 24154 NTEP Class III 5000 $439.00 20000 lb H3F-N5-20K-6YT 24155 NTEP Class III 5000 $439.00 DIMENSIONSOutline dimensions.
Source: Zemic H3F datasheet Signal Analog Protection class IP67 Material Nickel-Plated Alloy Steel Compensated temp range −10 to +40 °C Input impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 5000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 351 ± 2.0 Ω Rated capacity 1000 lb Rated output 3.0 ± 0.008 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance ≤ ±1.0 %FS Manufacturer Zemic Accuracy N5 Number of Wires 4 wires Manufacturer's Part Number H3F-N5-1K-6YT Approval NTEP Short name H3F-1K lb N5 S-Type Load Cell Hero chips IP67; Nickel-Plated Alloy Steel; Analog signal; NTEP Class III 5000; 4 wires
