- 01 / 03S-type tension/compression load cells
Zemic H3G S-type load cells for tension and compression weighing.
The Zemic H3G is an S-beam tension/compression load cell family for hanging scales, crane scales, hopper scales, and other suspended or inline force-measurement applications. Manufactured in alloy steel with sealed by adhesive; oil-proof, waterproof.

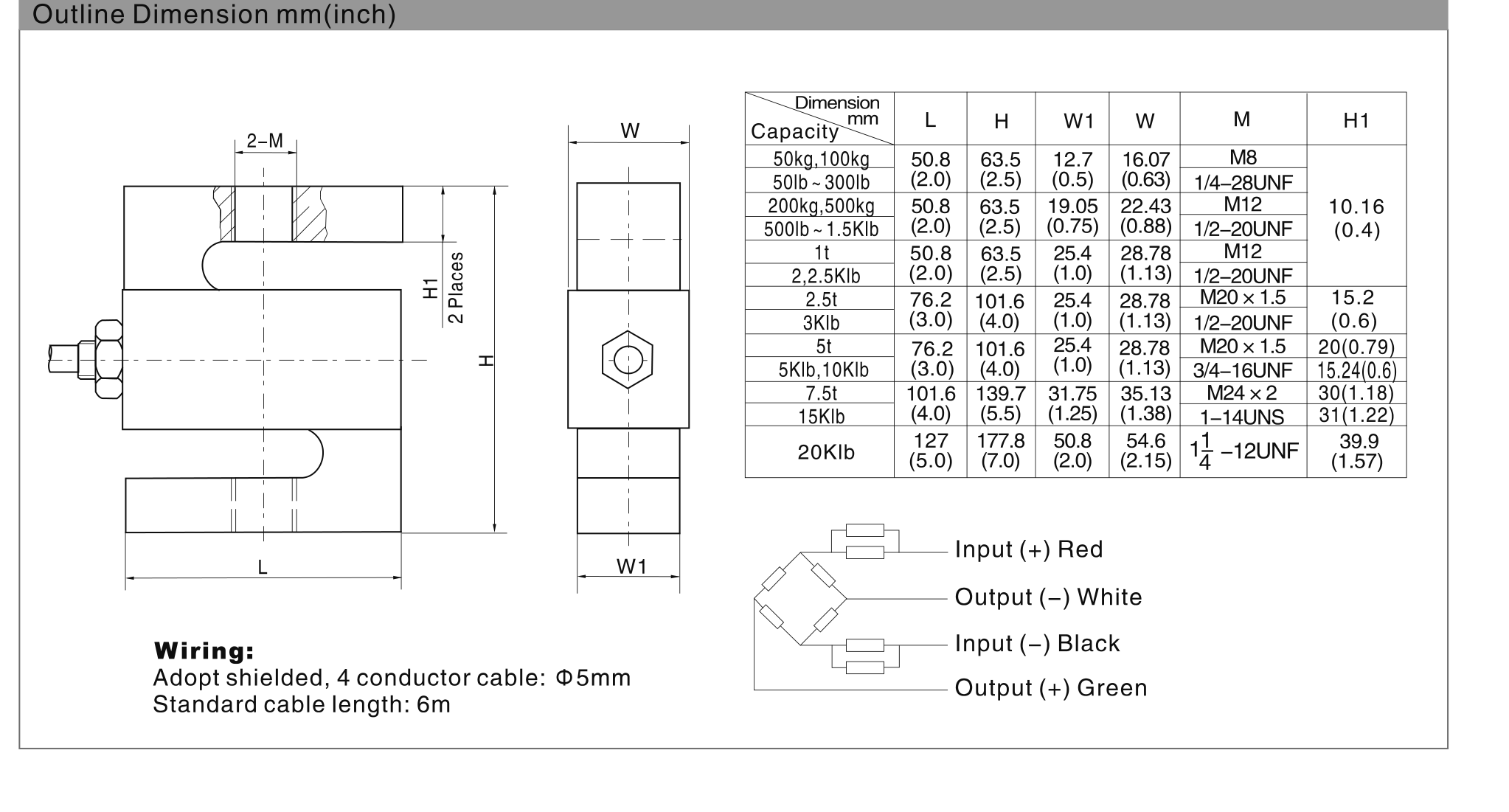

The lb models up to 10,000 lb are interchangeable with Revere 363 S-type load cells (same footprint and threads; the H3G is 2.5 mm taller); confirm dimensions and mounting before replacement.
50 kg – 7,500 kgKg-line capacity range50 lb – 20,000 lbLb-line capacity rangeAlloy steelMaterial02 / 03Technical dataSeries-wide catalog attributes.
Class-specific ratings (approval, combined error, creep error) are specific to each SKU's own accuracy class and are listed in the table below, not asserted here for the whole family.
Material Alloy steel Protection Sealed by adhesive; oil-proof, waterproof Signal Analog Cable length 6 m (20 ft) Cable type Shielded 4-conductor, Ø5 mm Number of wires 4 Rated output 3.0 ± 0.008 mV/V Input impedance 430 ± 60 Ω Output impedance 351 ± 2.0 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Recommended excitation 5 ~ 12 VDC Maximum excitation 18 VDC Compensated temperature −10 to +40 °C Operating temperature −35 to +70 °C Safe overload 150 %FS Ultimate overload 300 %FS CAPACITY TABLEAvailable capacities.
Capacity Manufacturer part number SKU Approval Price 50 kg H3G-C3-50kg-6B 12184 OIML R60 C3 · NTEP 06-099A2 141.0000 250 kg H3G-C3-250kg-6B 12186 OIML R60 C3 · NTEP 06-099A2 141.0000 500 kg H3G-C3-500kg-6B 12187 None · NTEP 06-099A2 141.0000 1 t (1,000 kg) H3G-C3-1.0t-6B 12188 None · NTEP 06-099A2 147.0000 2.5 t (2,500 kg) H3G-C3-2.5t-6B 12189 None · NTEP 06-099A2 199.0000 5 t (5,000 kg) H3G-C3-5.0t-6B 12190 None · NTEP 06-099A2 199.0000 7.5 t (7,500 kg) H3G-C3-7.5t-6B 12191 None · NTEP 06-099A2 255.0000 100 lb H3G-N10-100-6YB 11184 NTEP Class III 141.0000 150 lb H3G-N10-150-6YB 11185 NTEP Class III 141.0000 200 lb H3G-N10-200-6YB 11186 NTEP Class III 141.0000 250 lb H3G-N10-250-6YB 11187 NTEP Class III 141.0000 300 lb H3G-N10-300-6YB 11188 NTEP Class III 141.0000 500 lb H3G-N10-500-6YB 11189 NTEP Class III 141.0000 750 lb H3G-N10-750-6YB 11190 NTEP Class III 141.0000 1,000 lb H3G-N10-1K-6YB 11191 NTEP Class III 141.0000 1,500 lb H3G-N10-1.5K-6YB 11192 NTEP Class III 141.0000 2,000 lb H3G-N10-2K-6YB 11193 NTEP Class III 147.0000 2,500 lb H3G-N10-2.5K-6YB 11194 NTEP Class III 147.0000 3,000 lb H3G-N10-3K-6YB 11195 NTEP Class III 199.0000 5,000 lb H3G-N10-5K-6YB 11196 NTEP Class III 199.0000 10,000 lb H3G-N10-10K-6YB 11197 NTEP Class III 199.0000 15,000 lb H3G-N3-15K-6YB 11198 NTEP Class III 255.0000 20,000 lb H3G-N3-20K-6YB 11199 — 342.0000 DIMENSIONSOutline dimensions.

Source: Zemic H3G datasheet Talk to a WeightechUSA load-cell specialist.
Send the capacity, dimensions, cable details, and application. We will confirm which H3G SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class Waterproof Material Alloy Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Input impedance 430 ± 60 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Excitation voltage 5 ~ 12 V (Max 18 V) Maximum excitation 18 VDC Maximum safe overload 150 %FS Minimum dead load 0% Emax NTEP/OIML NTEP Class III/IIIL (CC 06-099A2) / OIML R60 C3 (TC7866) Operating temp range −35 to +70 °C Output impedance 351 ± 2.0 Ω Rated output 3.0 ± 0.008 mV/V Rated output tolerance ± 0.008 mV/V Recommended excitation 5 ~ 12 VDC Sensitivity 3.0 ± 0.008 mV/V Storage temp range -40 to +70 °C Ultimate central overload 300 %FS Weight of equipment 0.05t-1.0t: ~0.7kg | 2.5t: 1.0kg | 5.0t: 1.5kg | 7.5t+: 3.0kg Zero balance < ± 1.0 %FS Manufacturer Zemic Cable type Shielded 4-conductor, Ø5 mm Cable length 6 m (20 ft) Interchangeable Revere 363, Revere M363 Number of Wires 4 wires Manufacturer's Part Number H3G-N3-15K-6YB, H3G-N10-750-6YB, H3G-N10-5K-6YB, H3G-N10-500-6YB, H3G-N10-3K-6YB, H3G-N10-300-6YB, H3G-N10-2K-6YB, H3G-N10-250-6YB, H3G-N10-200-6YB, H3G-N10-2.5K-6YB, H3G-N10-1K-6YB, H3G-N10-150-6YB, H3G-N10-10K-6YB, H3G-N10-100-6YB, H3G-N10-1.5K-6YB, H3G-C3-7.5t-6B, H3G-C3-50kg-6B, H3G-C3-500kg-6B, H3G-C3-5.0t-6B, H3G-C3-250kg-6B, H3G-C3-2.5t-6B, H3G-C3-100kg-6B, H3G-C3-1.0t-6B Approval NTEP Short name H3G S-Type Load Cell Hero chips 50–7,500 kg / 150–20,000 lb; Waterproof; Alloy Steel; Analog signal; NTEP
