H6F-1000kg C3 Single Point Load CellZemic H6F 1000 kg Single Point Load Cell (H6F-C3-1000kg-3B6)
SKU 24102
IP66; Nickel-Plated Alloy Steel; Analog signal; 6 wires
1,707.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Zemic H6F-C3-1000kg-3B6 is the 1000 kg capacity Zemic H6F, a nickel-plated alloy steel bending-beam single point load cell for belt scales, platform scales and other electronic weighing devices, manufactured in nickel-plated alloy steel with IP66 ingress protection.
1000 kgRated capacityNickel-Plated Alloy SteelMaterialIP66Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number H6F-C3-1000kg-3B6 Capacity 1000 kg Rated output 2.0 ± 0.2 mV/V Dimensions 176 × 76 × 125 mm Material Nickel-plated alloy steel, bending beam Protection IP66 (EN 60529) Signal Analog Input resistance 384 ± 4 Ω Output resistance 350 ± 2 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ±1.5 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Corner (eccentric load) correction ± 0.002 % of load per cm Cable 6-conductor shielded PVC, AWG 24, 3.0 ± 0.1 m, 6.2 mm diameter, shield not connected to element Wiring Excitation (+) red, Excitation (−) yellow, Signal (+) blue, Signal (−) white, Sense (+) brown, Sense (−) black Accuracy class C3 (not OIML approved) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.023 %FS Creep (30 min) ≤ ±0.020 %FS Temperature effect on sensitivity ≤ ±0.014 %FS/10 °C Temperature effect on zero ≤ ±0.017 %FS/10 °C Maximum platform size 1200 × 1200 mm Mounting 8 × M16 threaded holes, 20 mm thread depth; recommended bolt torque 160 N·m 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic H6F 1000 kg Single Point Load Cell (H6F-C3-1000kg-3B6) 24102 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther H6F capacities.

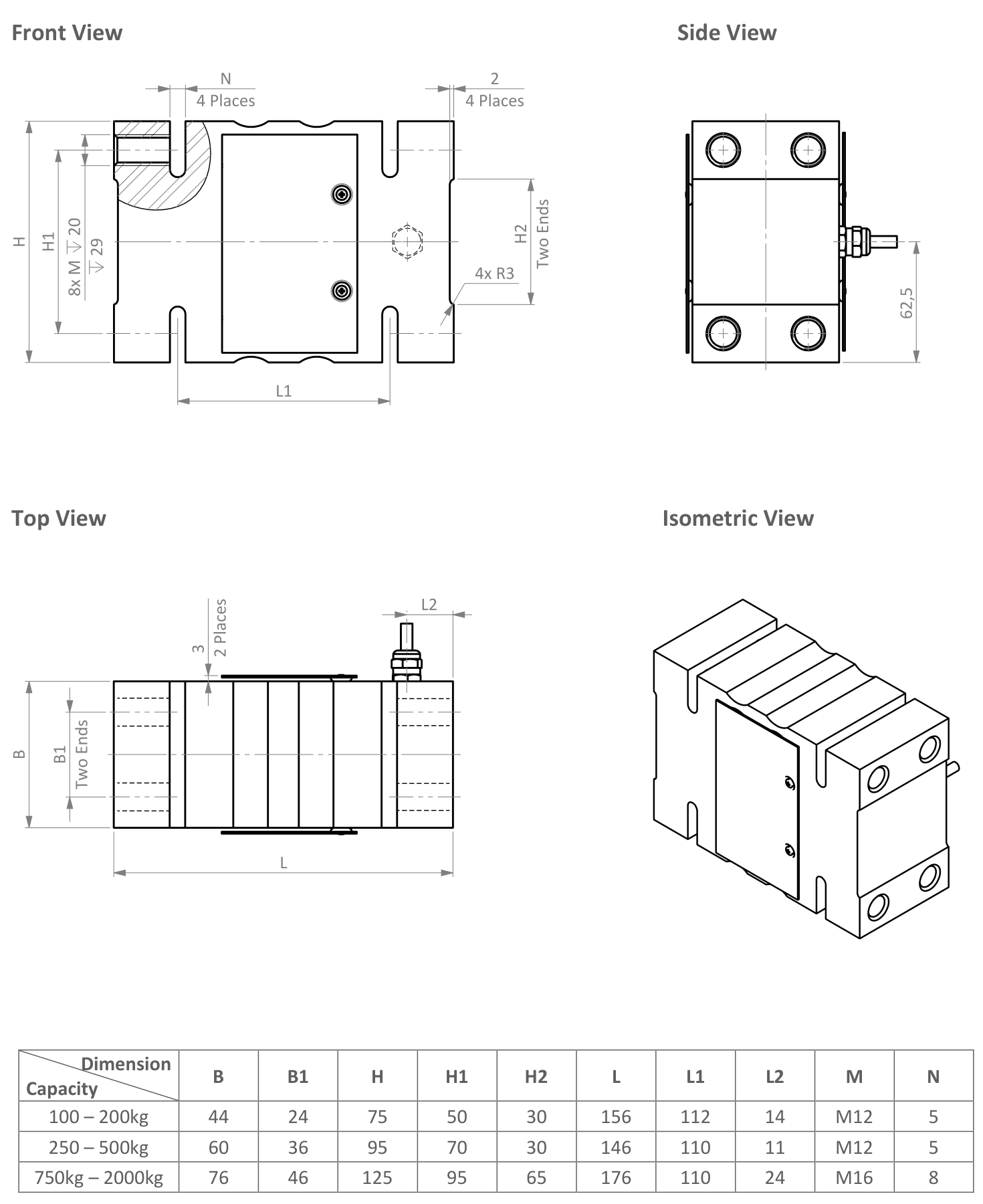

Capacity Manufacturer part number SKU Price 100 kg H6F-C3-100kg-3B6 24095 $415.00 150 kg H6F-C3-150kg-3B6 24096 $415.00 200 kg H6F-C3-200kg-3B6 24097 $415.00 250 kg H6F-C3-250kg-3B6 24098 $523.00 350 kg H6F-C3-350kg-3B6 24099 $523.00 500 kg H6F-C3-500kg-3B6 24100 $523.00 750 kg H6F-C3-750kg-3B6 24101 $1,707.00 2000 kg H6F-C3-2000kg-3B6 24103 $1,707.00 DIMENSIONSOutline dimensions.
Source: Zemic H6F datasheet Signal Analog Protection class IP66 Material Nickel-Plated Alloy Steel Combined error ≤ ±0.023 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.020 %FS / 30 min (C3) Eccentric loading error ±0.002 %LD/cm Input impedance 384 ± 4 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Max platform size 1200 × 1200 mm Operating temp range −35 to +65 °C Output impedance 350 ± 2 Ω Rated capacity 1000 kg Rated output 2.0 ± 0.2 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance ≤ ±1.5 %FS Manufacturer Zemic Accuracy C3 Number of Wires 6 wires Manufacturer's Part Number H6F-C3-1000kg-3B6 Short name H6F-1000kg C3 Single Point Load Cell Hero chips IP66; Nickel-Plated Alloy Steel; Analog signal; 6 wires
