Zemic H8C-5,000lb H8C-N5-5.0K-6YWB Shear Beam Load Cell
- Description
- Additional Information
- 01 / 06Shear beam and bending beam load cells
Shear beam and bending beam load cells for confirmed-fit replacement and scale builds.
The Zemic H8C-5,000lb H8C-N5-5.0K-6YWB Shear Beam Load Cell is a shear beam or bending beam load cell rated 5,000 lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Zemic and the model / part number as h8c-n5-5.0k-6ywb.
5,000 lbRated capacityNickel-plated alloy steelMaterialIP68ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Shear and bending beam cells are common choices for floor scales, livestock platforms, tanks, hoppers, and low-to-mid capacity industrial scales.
01Platforms and floor scales
A practical load-cell family for fabricated platforms and summing-box systems.
platform02Tanks and hoppers
Works well when mounts control side load and vessel movement.
vessel03Livestock and agriculture
Often used in platform and chute builds when capacity and environmental rating fit.
ag scale03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 5,000 lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP68. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
RETROFITInterchangeable note
Sensortronics 65023
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Nickel-plated alloy steel Protection IP68 Signal Analog Cable length 6 m (20 ft) Cable type Shielded 6-conductor, Ø5 mm Manufacturer Zemic Manufacturer part number h8c-n5-5.0k-6ywb Rated capacity 5,000 lb Capacity 5k lb LE Capacity in pounds 5000 lb Approval NTEP Class III/IIIL · CC 12-028 Dimensions 171.5 x 38.1 x 38.1 mm Rated output 3.0 ± 0.003 mV/V Rated output tolerance ± 0.003 mV/V Recommended excitation 5 ~ 12 VDC Maximum excitation 18 VDC Input impedance 350 ± 3.5 Ω Output impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Safe overload 150 %FS Ultimate overload 300 %FS Operating temperature −35 to +65 °C Number of wires 6 Interchangeable note Sensortronics 65023 Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Zemic H8C-5,000lb H8C-N5-5.0K-6YWB Shear Beam Load Cell 10617 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 10617 is the right fit.

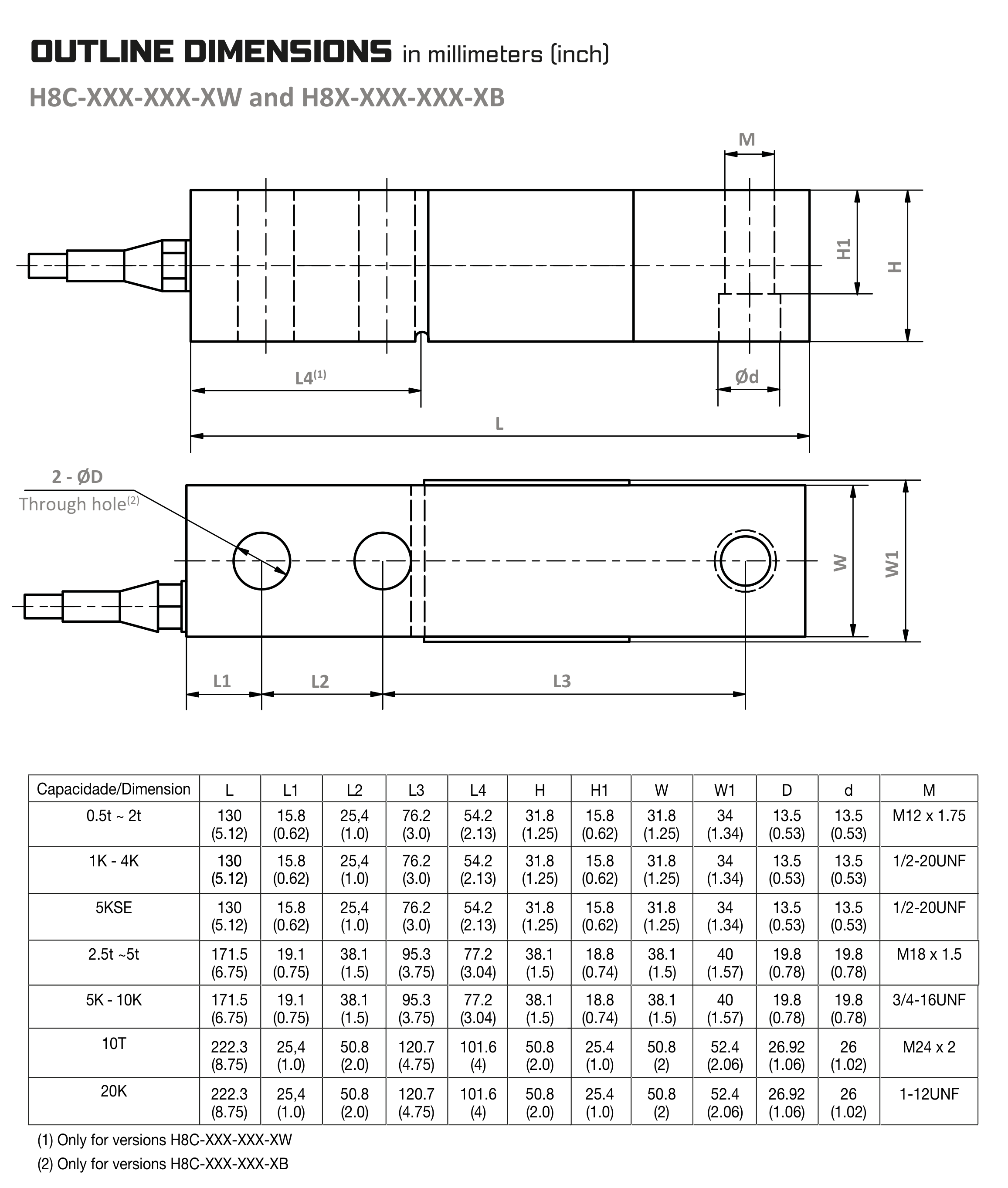

Email SalesView DatasheetCall +1 (954) 666-0877 × 305DIMENSIONSOutline dimensions.
Source: Zemic H8C datasheet Signal Analog Protection class IP68 Material Nickel-Plated Alloy Steel Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.017 %FS (NTEP III 5000) Input impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Excitation voltage 5 ~ 12 V (Max 18 V) Maximum excitation 18 VDC Maximum number of intervals 5000 Maximum safe overload 150 %FS Minimum dead load 0% Emax NTEP/OIML NTEP Class III/IIIL · CC 12-028 Operating temp range −35 to +65 °C Output impedance 350 ± 3.5 Ω Rated capacity 5,000 lb Rated output 3.0 ± 0.003 mV/V Rated output tolerance ± 0.003 mV/V Recommended excitation 5 ~ 12 VDC Recommended torque 750 Nm Sensitivity 3.0 ± 0.003 mV/V Storage temp range -40 to +80 °C Ultimate central overload 300 %FS Y=Emax/Vmin 10000 Zero balance < ± 1.0 %FS Manufacturer Zemic Capacity 5k lb LE Cable type Shielded 4-conductor, Ø5 mm Cable length 6 m (20 ft) Accuracy NTEP Class III 5000 Interchangeable Artech 30310, Celtron SQB, Revere 5123, Ricelake RL35023, Sensortronics 65023, Tedea 3411, Totalcomp TSB, Coti CI-23 Number of Wires 6 wires Manufacturer's Part Number h8c-n5-5.0k-6ywb Approval NTEP Short name H8C Shear Beam Load Cell · 5k lb LE · h8c-n5-5.0k-6ywb Hero chips IP68; Nickel-Plated Alloy Steel; Analog signal; NTEP; 3.0 ± 0.003 mV/V
