H9C Shear Beam Load Cell · 50000 lb · H9C-N10-50K-9.3BZemic H9C-50000lb H9C-N10-50K-9.3B Double-Ended Beam Load Cell
- Description
- Additional Information
- 01 / 06Double-ended beam and weighbridge load cells
Double-ended beam and weighbridge load cells for confirmed-fit replacement and scale builds.
The Zemic H9C-50000lb H9C-N10-50K-9.3B Double-Ended Beam Load Cell is a double-ended beam load cell rated 50000 lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Zemic and the model / part number as H9C-N10-50K-9.3B.
50000 lbRated capacityNickel-plated alloy steelMaterialIP67 (EN 60529)ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Double-ended beam cells are commonly used in truck scales, rail scales, hoppers, and other heavy multi-cell systems.
01Truck and rail scales
A strong fit for weighbridges and vehicle-scale load points.
weighbridge02Heavy vessels
Works in silo, hopper, and tank weighing when the mount controls load introduction.
vessel03Service replacement
Confirm cups, links, mounts, and cable exit before ordering.
retrofit03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 50000 lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP67 (EN 60529). Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Nickel-plated alloy steel Protection IP67 (EN 60529) Signal Analog Manufacturer Zemic Manufacturer part number H9C-N10-50K-9.3B Capacity in pounds 50000 lb Approval OIML R60 C3/C4 · NTEP 07-018A1 · PTB D09-07.07 Rated output 3.0 ± 0.008 mV/V Recommended excitation 5 ~ 12 VDC Maximum excitation 18 VDC Input impedance 700 ± 7 Ω Output impedance 703 ± 4 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Safe overload 150 %FS Ultimate overload 300 %FS Operating temperature −35 to +65 °C Number of wires 4 Output sensitivity 3.0 ± 0.008 mV/V Zero balance ≤ ±1.0 %FS Compensated temperature −10 to +40 °C Storage temperature −40 to +70 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Zemic H9C-50000lb H9C-N10-50K-9.3B Double-Ended Beam Load Cell 11689 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

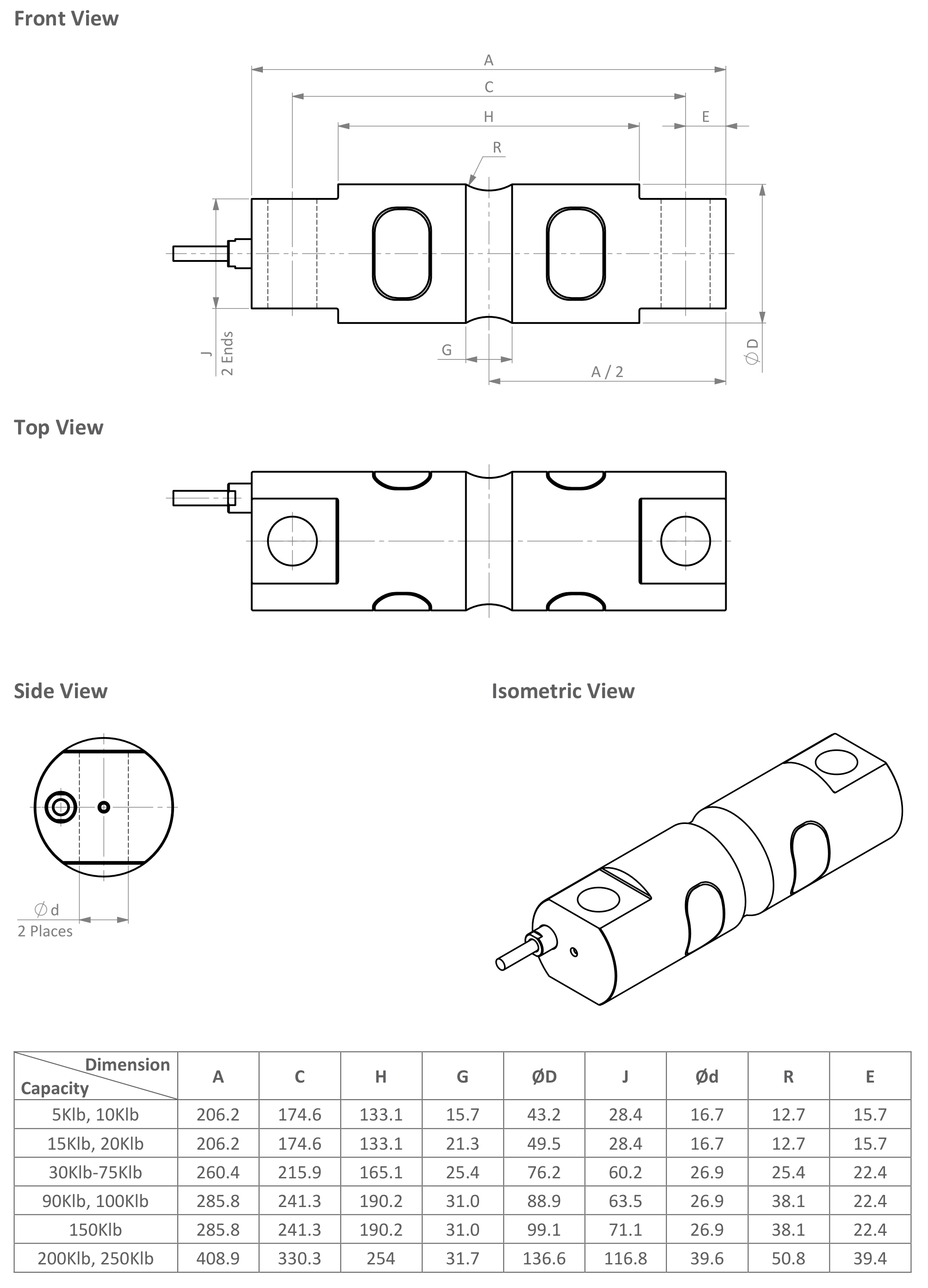

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 11689 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP67 Material Nickel-Plated Alloy Steel Compensated temp range −10 to +40 °C Input impedance 700 ± 7 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum safe overload 150 %FS NTEP/OIML NTEP Class IIIL · CC 07-018A1 Operating temp range −35 to +65 °C Output impedance 703 ± 4 Ω Rated capacity 50,000 lb Rated output 3.0 ± 0.008 mV/V Recommended excitation 5 ~ 12 VDC Storage temp range −40 to +70 °C Ultimate central overload 300 %FS Zero balance ≤ ±1.0 %FS Manufacturer Zemic Input Impedance 700 ± 7 Ω Interchangeable Celtron CSB, Artech 70210, Rice Lake RL70000, Sensortronics 60058, Revere 5103, Coti CI-5103 Number of Wires 4 wires Manufacturer's Part Number H9C-N10-50K-9.3B Approval NTEP Short name H9C Shear Beam Load Cell · 50000 lb · H9C-N10-50K-9.3B Hero chips IP67; Nickel-Plated Alloy Steel; Analog signal; NTEP; 4 wires
