HM14C-50t C3 Compression Load CellZemic HM14C 50 t Compression Load Cell (HM14C-C3-50t-13B6)
SKU 24237
IP68; Alloy Steel; Analog signal; 6 wires
511.00
- Description
- Additional Information
- 01 / 03Compression Load Cell
Compression Load Cell for confirmed-fit replacement and scale builds.
The Zemic HM14C-C3-50t-13B6 is the 50 t capacity Zemic HM14C, an alloy steel column compression load cell with an anti-reversal design and good self-aligning ability, for electronic platform scales, automobile testing facilities, hopper scales and other electronic weighing devices, manufactured in alloy steel with IP68 ingress protection.
50 tRated capacityAlloy SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number HM14C-C3-50t-13B6 Capacity 50 t Rated output 2.0 ± 0.004 mV/V Dimensions Ø84 × 118.5 mm Material Alloy steel, hermetically welded Protection IP68 Signal Analog Input resistance 700 ± 7 Ω Output resistance 703 ± 4 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Cable 6-conductor shielded, 13 m, 6.3 mm diameter Wiring Input (+) red, Sense (+) brown, Output (−) white, Sense (−) black, Input (−) yellow, Output (+) blue Accuracy class C3 Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.016 %FS Temperature effect on sensitivity ≤ ±0.011 %FS/10 °C Temperature effect on zero ≤ ±0.015 %FS/10 °C 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic HM14C 50 t Compression Load Cell (HM14C-C3-50t-13B6) 24237 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther HM14C capacities.

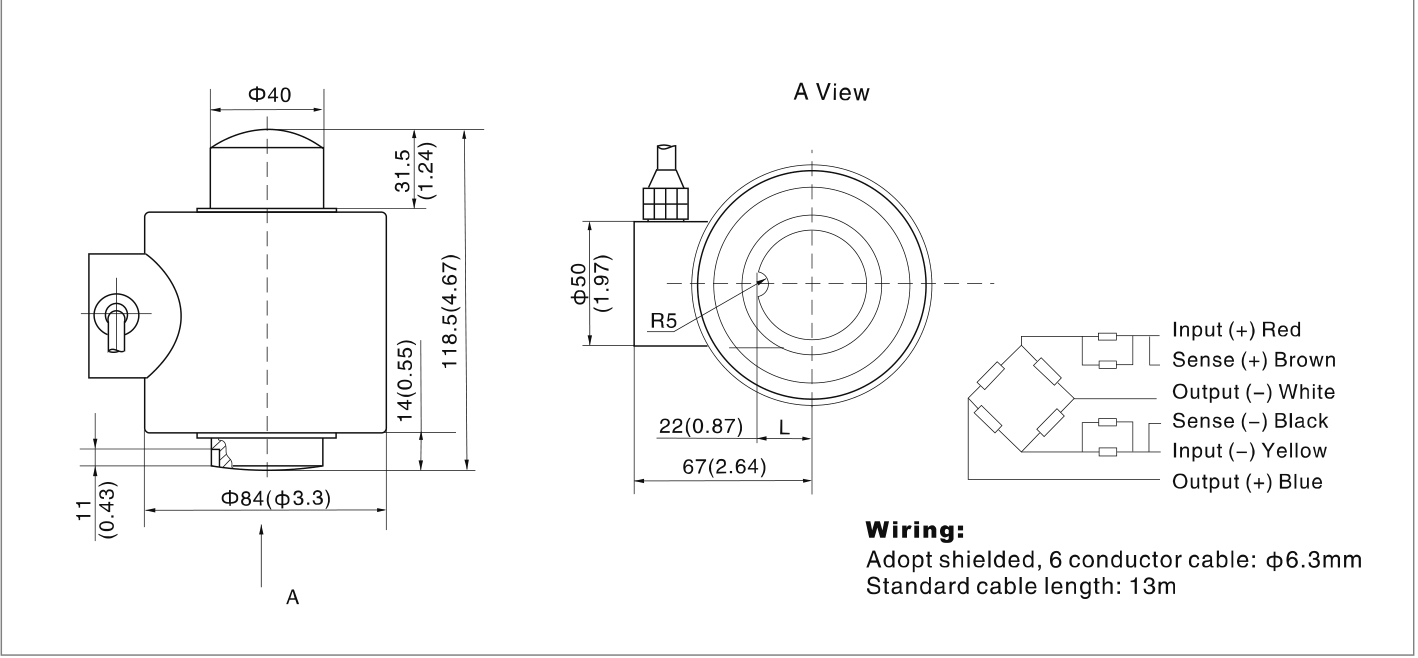

Capacity Manufacturer part number SKU Price 10 t HM14C-C3-10t-13B6 24233 $479.00 20 t HM14C-C3-20t-13B6 24234 $479.00 25 t HM14C-C3-25t-13B6 24235 $479.00 30 t HM14C-C3-30t-13B6 24236 $479.00 DIMENSIONSOutline dimensions.
Source: Zemic HM14C datasheet Signal Analog Protection class IP68 Material Alloy Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Input impedance 700 ± 7 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 703 ± 4 Ω Rated capacity 50 t Rated output 2.0 ± 0.004 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.0 %FS Manufacturer Zemic Accuracy C3 Number of Wires 6 wires Manufacturer's Part Number HM14C-C3-50t-13B6 Short name HM14C-50t C3 Compression Load Cell Hero chips IP68; Alloy Steel; Analog signal; 6 wires
