HM2D4-20t C3 Spoke Type Load CellZemic HM2D4 20 t Spoke Type Load Cell (HM2D4-C3-20t-5B6)
- Description
- Additional Information
- 01 / 03Spoke Type Load Cell
Spoke Type Load Cell for confirmed-fit replacement and scale builds.
The Zemic HM2D4-C3-20t-5B6 is the 20 t capacity Zemic HM2D4, a fully welded, low-profile spoke type load cell, oil-proof, waterproof and resistant to corrosive gases and media, for electronic truck scales, hopper scales, automotive testing equipment and other electronic weighing or force measuring applications, manufactured in alloy steel with IP68 ingress protection.
20 tRated capacityAlloy SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number HM2D4-C3-20t-5B6 Capacity 20 t Rated output 2.0 ± 0.002 mV/V Dimensions Ø 155 × 90 mm Material Alloy steel, fully welded Protection IP68 Signal Analog Input resistance 350 ± 3 Ω Output resistance 351 ± 2 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Cable 6-conductor shielded, Ø5.6 mm, 5 m standard length Wiring Input (+) green, Sense (+) yellow, Output (−) red, Sense (−) blue, Input (−) black, Output (+) white Accuracy class C3 Maximum verification intervals (nmax) 3000 Mounting Central M32 × 2 threaded load hole 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic HM2D4 20 t Spoke Type Load Cell (HM2D4-C3-20t-5B6) 24119 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther HM2D4 capacities.

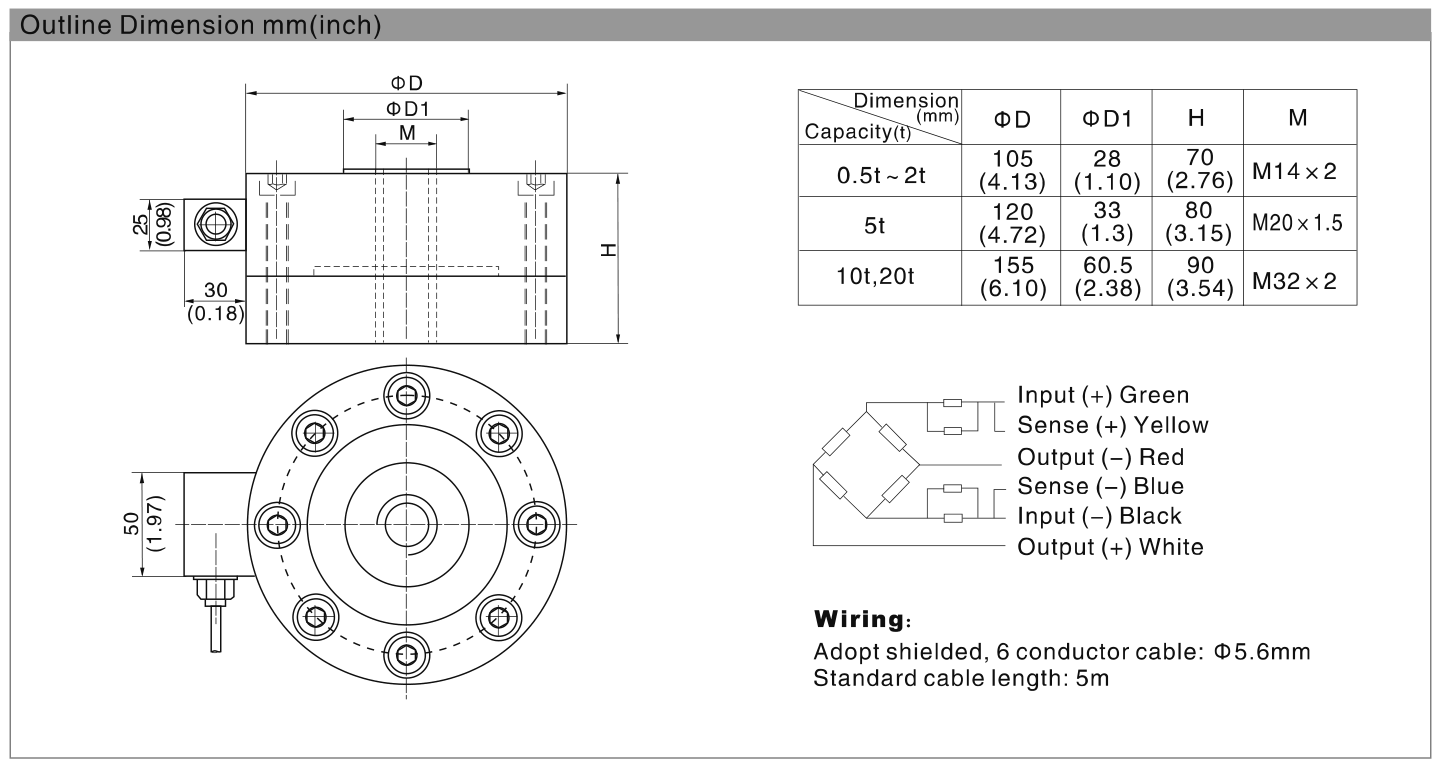

Capacity Manufacturer part number SKU Price 0.5 t HM2D4-C3-0.5t-5B6 24113 $615.00 1 t HM2D4-C3-1t-5B6 24114 $615.00 2 t HM2D4-C3-2t-5B6 24115 $615.00 5 t HM2D4-C3-5t-5B6 24117 $724.00 10 t HM2D4-C3-10t-5B6 24118 $977.00 DIMENSIONSOutline dimensions.
Source: Zemic HM2D4 datasheet Signal Analog Protection class IP68 Material Alloy Steel Compensated temp range −10 to +40 °C Input impedance 350 ± 3 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 351 ± 2 Ω Rated capacity 20 t Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.0 %FS Manufacturer Zemic Accuracy C3 Number of Wires 6 wires Manufacturer's Part Number HM2D4-C3-20t-5B6 Short name HM2D4-20t C3 Spoke Type Load Cell Hero chips IP68; Alloy Steel; Analog signal; 6 wires
