HM8-20t C3 Shear Beam Load CellZemic HM8 20 t Shear Beam Load Cell (HM8-C3-20t-6.5B6)
SKU 24196
IP68; Nickel-Plated Alloy Steel; Analog signal; OIML R60 C3; 6 wires
519.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Zemic HM8-C3-20t-6.5B6 is the 20 t capacity Zemic HM8, a hermetically sealed shear beam load cell for truck scales, track scales, hopper scales and other electronic weighing devices, manufactured in nickel-plated alloy steel with IP68 ingress protection. This model is OIML R60 C3.
20 tRated capacityNickel-Plated Alloy SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number HM8-C3-20t-6.5B6 Capacity 20 t Approval OIML R60 C3 Rated output 2.0 ± 0.002 mV/V Dimensions 318 × 70 × 82.5 mm Material Nickel-plated alloy steel, hermetically sealed Protection IP68 (EN 60529) Signal Analog Input resistance 400 ± 10 Ω Output resistance 351 ± 3.0 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ±1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Cable 6-conductor shielded PVC, AWG 24, Ø6.2 mm, 6.5 m, shield not connected to the element Wiring Excitation (+) red, Sense (+) brown, Signal (−) white, Sense (−) black, Excitation (−) yellow, Signal (+) blue Maximum verification intervals (nmax) 3000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.016 %FS Temperature effect on sensitivity ≤ ±0.011 %FS/10 °C Temperature effect on zero ≤ ±0.015 %FS/10 °C Accuracy class C3 (OIML R60 C3) Minimum verification interval (vmin) Emax/15000 Certificates OIML test certificate TC8103 Revision 0; C of C R60/2000-NL1-12.14 Mounting 2 × Ø34 mm through holes 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic HM8 20 t Shear Beam Load Cell (HM8-C3-20t-6.5B6) 24196 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther HM8 capacities.
Capacity Manufacturer part number SKU Approval Price 1 t HM8-C3-1.0t-6.5B6 24189 — $319.00 2 t HM8-C3-2.0t-6.5B6 24190 — $319.00 3 t HM8-C3-3.0t-6.5B6 24192 — $319.00 5 t HM8-C3-5.0t-6.5B6 24193 OIML R60 C3 $343.00 10 t HM8-C3-10t-6.5B6 24194 OIML R60 C3 $439.00 15 t HM8-C3-15t-6.5B6 24195 OIML R60 C3 $439.00 25 t HM8-C3-25t-6.5B6 24197 OIML R60 C3 $519.00 30 t HM8-C3-30t-6.5B6 24198 — $1,158.00 DIMENSIONSOutline dimensions.

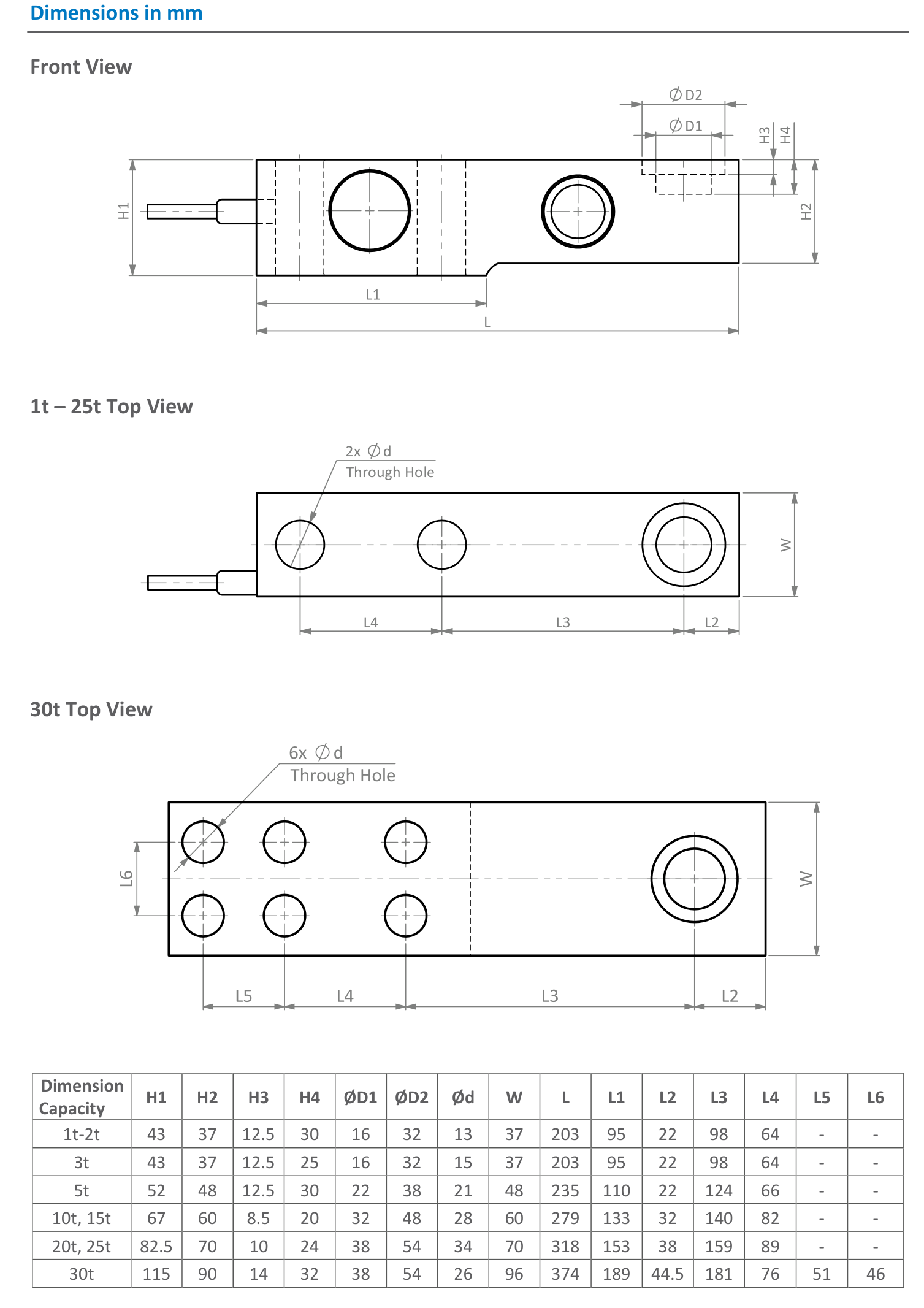

Source: Zemic HM8 datasheet Signal Analog Protection class IP68 Material Nickel-Plated Alloy Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Input impedance 400 ± 10 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 351 ± 3.0 Ω Rated capacity 20 t Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance ≤ ±1.0 %FS Manufacturer Zemic Accuracy C3 Number of Wires 6 wires Manufacturer's Part Number HM8-C3-20t-6.5B6 Approval OIML R60 C3 Short name HM8-20t C3 Shear Beam Load Cell Hero chips IP68; Nickel-Plated Alloy Steel; Analog signal; OIML R60 C3; 6 wires
