HM8C-5t C3 Shear Beam Load CellZemic HM8C 5 t Shear Beam Load Cell (HM8C-C3-5.0t-6B)
SKU 24205
IP68; Alloy Steel; Analog signal; 4 wires
220.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Zemic HM8C-C3-5.0t-6B is the 5 t capacity Zemic HM8C, a hermetically welded single shear beam load cell, oil-proof, waterproof and corrosion-resistant, for electronic platform scales, hopper scales and other electronic weighing devices, including hazardous areas, manufactured in alloy steel with IP68 ingress protection.
5 tRated capacityAlloy SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number HM8C-C3-5.0t-6B Capacity 5 t Rated output 2.0 ± 0.004 mV/V Dimensions 171.5 × 38.1 × 38.1 mm Material Alloy steel, hermetically welded Protection IP68 Signal Analog Input resistance 350 ± 3.5 Ω Output resistance 351 ± 2.0 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.5 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Wiring Input (+) red, Output (−) white, Input (−) black, Output (+) green Accuracy class C3 Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.016 %FS Temperature effect on sensitivity ≤ ±0.011 %FS/10 °C Temperature effect on zero ≤ ±0.015 %FS/10 °C Cable 4-conductor shielded, Ø5 mm, 6 m standard length Mounting 2 × Ø19.8 mm through holes; M18 × 1.5 threaded load hole 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic HM8C 5 t Shear Beam Load Cell (HM8C-C3-5.0t-6B) 24205 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther HM8C capacities.
Capacity Manufacturer part number SKU Price 0.5 t HM8C-C3-0.5t-4B 24200 $185.00 1 t HM8C-C3-1.0t-4B 24201 $185.00 1.5 t HM8C-C3-1.5t-4B 24202 $185.00 2 t HM8C-C3-2.0t-4B 24203 $185.00 3 t HM8C-C3-3.0t-6B 24204 $220.00 DIMENSIONSOutline dimensions.

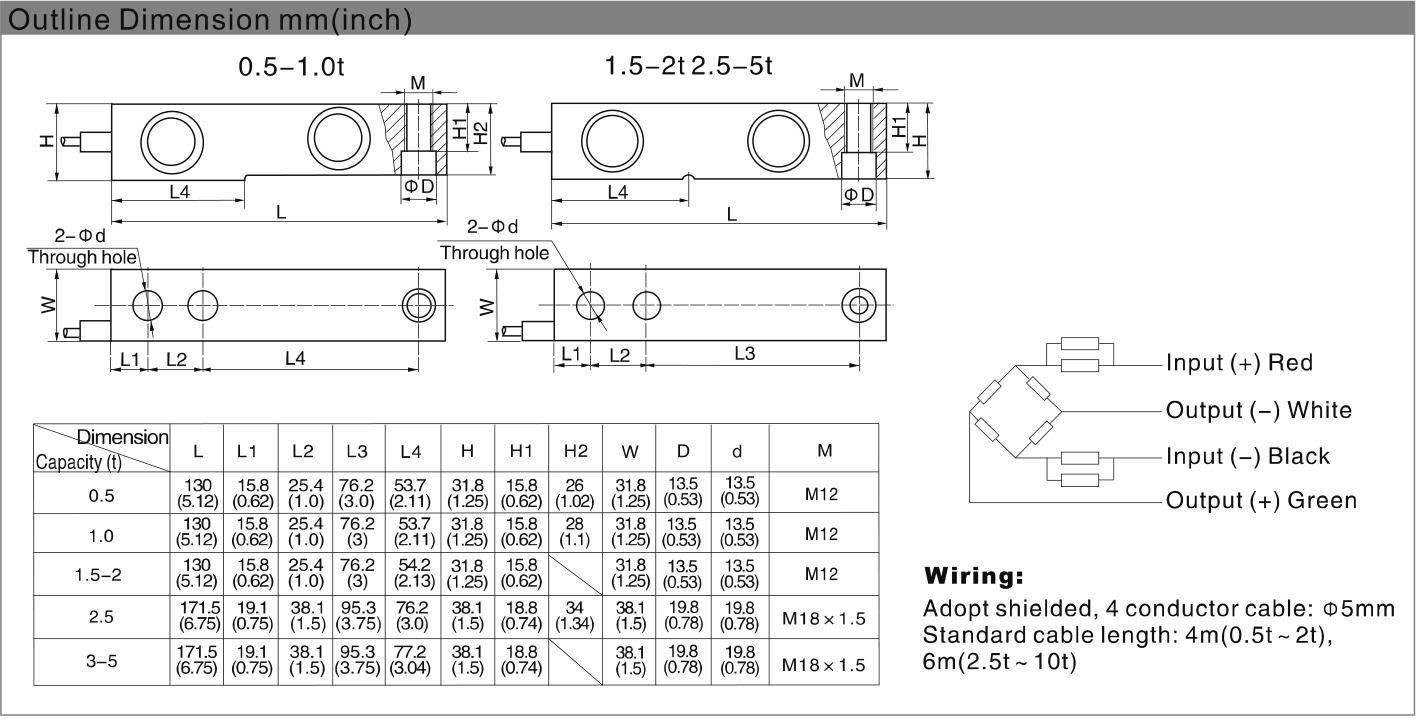

Source: Zemic HM8C datasheet Signal Analog Protection class IP68 Material Alloy Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Input impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 351 ± 2.0 Ω Rated capacity 5 t Rated output 2.0 ± 0.004 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.5 %FS Manufacturer Zemic Accuracy C3 Number of Wires 4 wires Manufacturer's Part Number HM8C-C3-5.0t-6B Short name HM8C-5t C3 Shear Beam Load Cell Hero chips IP68; Alloy Steel; Analog signal; 4 wires
