HM9B-50t C3 Double-Ended Shear Beam Load CellZemic HM9B 50 t Double-Ended Shear Beam Load Cell (HM9B-C3-50t-12B)
SKU 24287
IP68; Nickel-Plated Alloy Steel; Analog signal; OIML R60 C3; 4 wires
1,208.00
- Description
- Additional Information
- 01 / 03Double-Ended Shear Beam Load Cell
Double-Ended Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Zemic HM9B-C3-50t-12B is the 50 t capacity Zemic HM9B, a high-accuracy dual shear beam load cell for truck scales, track scales, hopper scales and other electronic weighing devices, manufactured in nickel-plated alloy steel with IP68 ingress protection. This model is OIML R60 C3.
50 tRated capacityNickel-Plated Alloy SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number HM9B-C3-50t-12B Capacity 50 t Approval OIML R60 C3 Rated output 2.0 ± 0.002 mV/V Dimensions 340 × 160 × 267 mm Material Nickel-plated alloy steel Protection IP68 (EN 60529) Signal Analog Input resistance 700 ± 7 Ω Output resistance 703 ± 4 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ±1.5 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Cable 4-conductor shielded PVC, AWG 24, Ø5.5 mm, 12 m, shield not connected to the element Wiring Excitation (+) red, Signal (−) white, Excitation (−) black, Signal (+) green, shield transparent Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/7500 Combined error ≤ ±0.023 %FS Creep (30 min) ≤ ±0.020 %FS Temperature effect on sensitivity ≤ ±0.014 %FS/10 °C Temperature effect on zero ≤ ±0.017 %FS/10 °C Certificates OIML test certificate TC12331 Revision 0; C of C R60/2017-A-NL1-22.07 Rev. 0 Mounting Mounting assembly base plate: 4 × Ø22 mm through holes 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic HM9B 50 t Double-Ended Shear Beam Load Cell (HM9B-C3-50t-12B) 24287 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

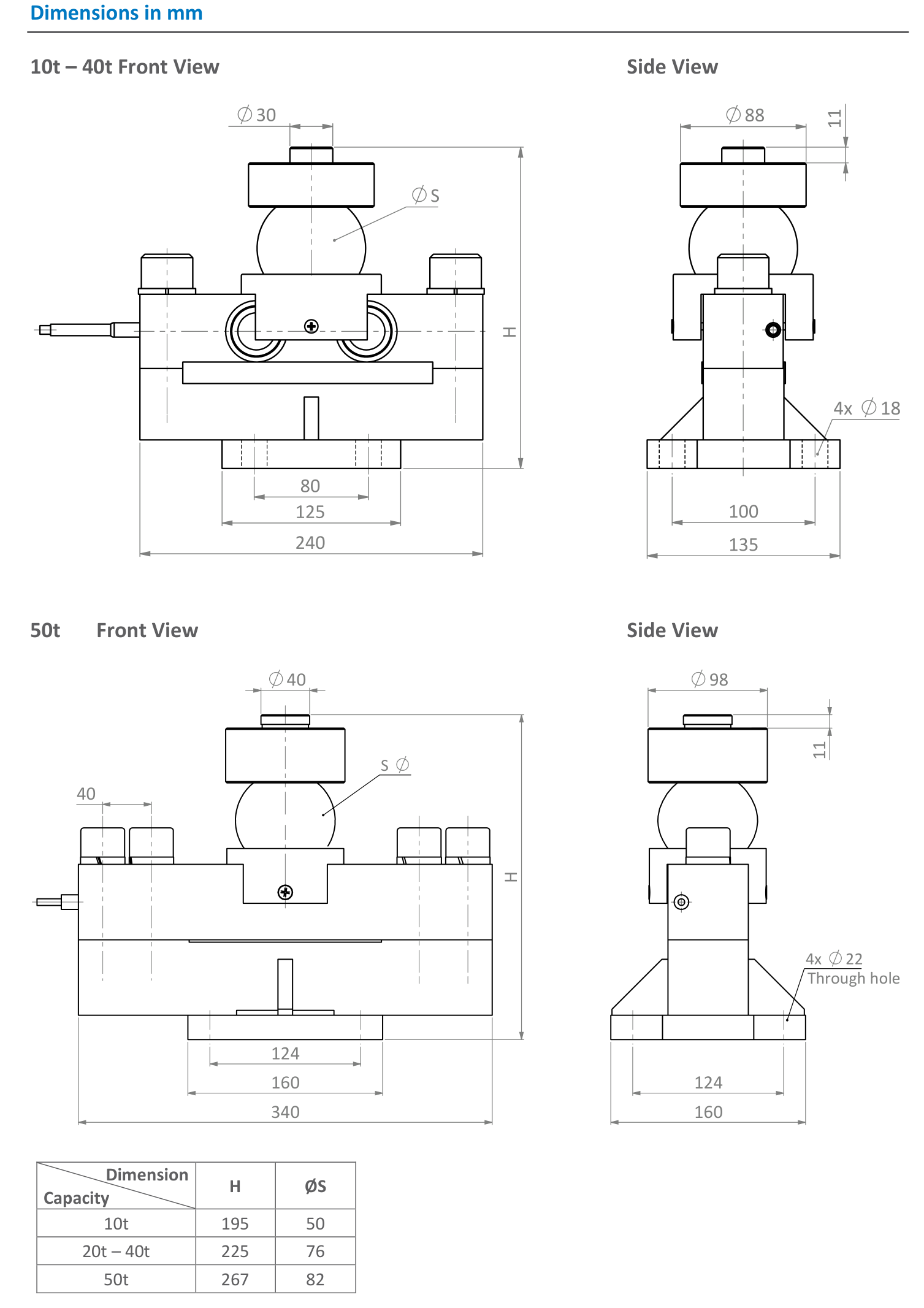

Email SalesView DatasheetCall +1 (954) 666-0877 × 305DIMENSIONSOutline dimensions.
Source: Zemic HM9B datasheet Signal Analog Protection class IP68 Material Nickel-Plated Alloy Steel Combined error ≤ ±0.023 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.020 %FS / 30 min (C3) Input impedance 700 ± 7 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 703 ± 4 Ω Rated capacity 50 t Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance ≤ ±1.5 %FS Manufacturer Zemic Accuracy C3 Number of Wires 4 wires Manufacturer's Part Number HM9B-C3-50t-12B Approval OIML R60 C3 Short name HM9B-50t C3 Double-Ended Shear Beam Load Cell Hero chips IP68; Nickel-Plated Alloy Steel; Analog signal; OIML R60 C3; 4 wires
