HM9E-200K lb N10 Double-Ended Shear Beam Load CellZemic HM9E 200000 lb Double-Ended Shear Beam Load Cell (HM9E-N10-200K-12B)
SKU 24292
IP68; Nickel-Plated Alloy Steel; Analog signal; NTEP Class III L 10000; 4 wires
1,261.00
- Description
- Additional Information
- 01 / 03Double-Ended Shear Beam Load Cell
Double-Ended Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Zemic HM9E-N10-200K-12B is the 200000 lb capacity Zemic HM9E, a hermetically sealed, high-accuracy dual shear beam load cell for truck and track scales and other heavy weighing devices, manufactured in nickel-plated alloy steel with IP68 ingress protection. This model is NTEP Class III L 10000.
200000 lbRated capacityNickel-Plated Alloy SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number HM9E-N10-200K-12B Capacity 200000 lb Approval NTEP Class III L 10000 Rated output 3.0 ± 0.003 mV/V Dimensions 304.8 × 86.1 × 86.36 mm Material Nickel-plated alloy steel, hermetically sealed Protection IP68 (EN 60529) Signal Analog Input resistance 700 ± 7 Ω Output resistance 703 ± 4 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ±1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Cable 4-conductor shielded polyurethane, AWG 21, Ø8.0 mm, 12 m, shield not connected to the element Wiring Excitation (+) red, Signal (−) white, Excitation (−) black, Signal (+) green, shield transparent Accuracy class N10 (NTEP Class III L, 10000 divisions) Maximum verification intervals (nmax) 10000 Certificates NTEP Certificate of Conformance 10-057A1 (Class III L, multiple cell) Minimum verification interval (vmin) 4.0 lb (NTEP Class III L) Mounting 2 × Ø70 mm rounded ends (neck Ø59.69 mm, R38.1 mm); center groove R38.1 mm, 10 mm deep 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic HM9E 200000 lb Double-Ended Shear Beam Load Cell (HM9E-N10-200K-12B) 24292 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther HM9E capacities.

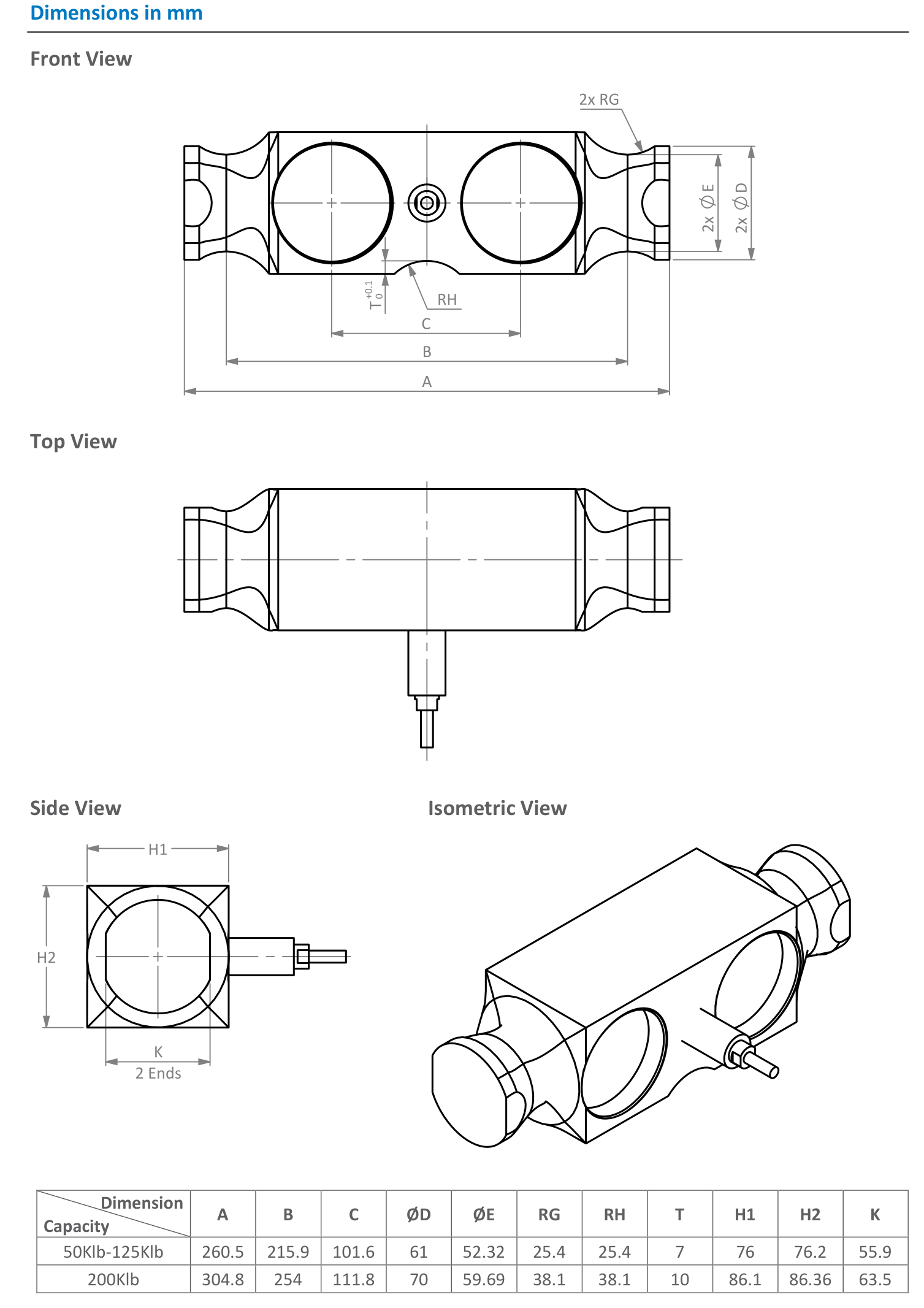

Capacity Manufacturer part number SKU Approval Price 50000 lb HM9E-N10-50K-12B 24288 NTEP Class III L 10000 $878.00 65000 lb HM9E-N10-65K-12B 24289 NTEP Class III L 10000 $878.00 100000 lb HM9E-N10-100K-12B 24290 NTEP Class III L 10000 $878.00 125000 lb HM9E-N10-125K-12B 24291 NTEP Class III L 10000 $878.00 DIMENSIONSOutline dimensions.
Source: Zemic HM9E datasheet Signal Analog Protection class IP68 Material Nickel-Plated Alloy Steel Compensated temp range −10 to +40 °C Input impedance 700 ± 7 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 10000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 703 ± 4 Ω Rated capacity 200000 lb Rated output 3.0 ± 0.003 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance ≤ ±1.0 %FS Manufacturer Zemic Accuracy N10 Number of Wires 4 wires Manufacturer's Part Number HM9E-N10-200K-12B Approval NTEP Short name HM9E-200K lb N10 Double-Ended Shear Beam Load Cell Hero chips IP68; Nickel-Plated Alloy Steel; Analog signal; NTEP Class III L 10000; 4 wires
