Zemic L6E-C3-500kg-3B 500 kg Single Point Load Cell
SKU
21157
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Zemic L6E-C3-500kg-3B is a 500 kg capacity variation of the Zemic L6E single point load cell family, manufactured in aluminium with IP65 (EN 60529) ingress protection. This model is OIML R60 C3.
500 kgRated capacityAluminiumMaterialIP65 (EN 60529)Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number L6E-C3-500kg-3B Capacity 500 kg Approval OIML R60 C3 Rated output 2.0 ± 0.2 mV/V Dimensions 150 x 40 x 20 mm Material Aluminium Protection IP65 (EN 60529) Signal Analog Max platform size 400 × 400 mm Input impedance 406 ± 6 Ω Output impedance 350 ± 3 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 ~ 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 200 %FS Zero balance ≤ ±2.0 %FS Eccentric loading error ≤ 0.002 %LD/cm 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic L6E-C3-500kg-3B 500 kg Single Point Load Cell 21157 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

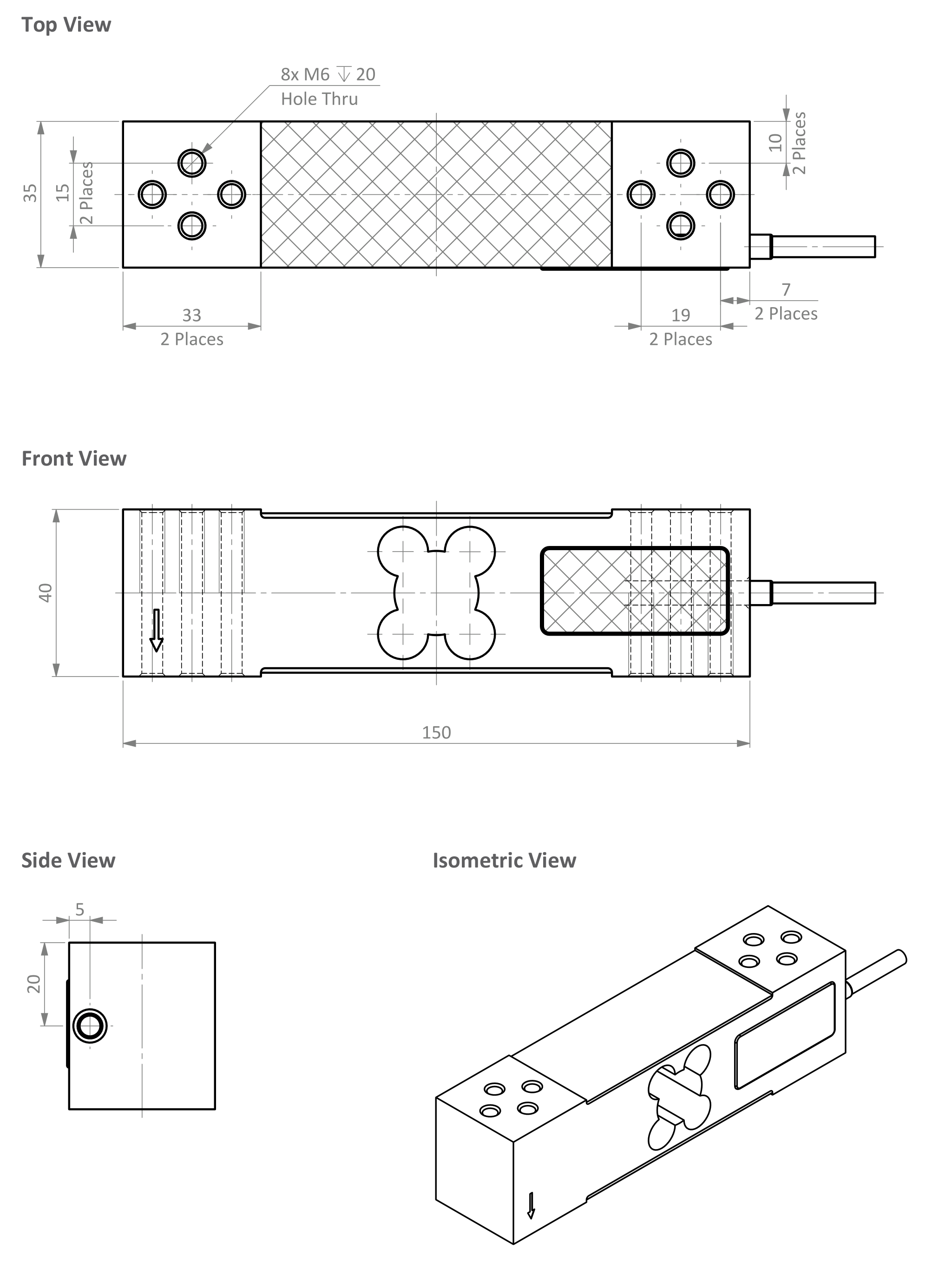

Email SalesView DatasheetCall +1 (954) 666-0877 × 305DIMENSIONSOutline dimensions.
Source: Zemic L6E datasheet Material Aluminum Combined error ≤ ±0.023 %FS Creep error 20mins ≤ ±0.0167 %FS / 30 min Internal Battery -- NTEP/OIML OIML R60 C3 · TC7838 Rev. 1 Rated capacity 500 kg Rated output 2.0 ± 0.2 mV/V Accuracy C3 Interchangeable Celtron LPS Manufacturer's Part Number L6E-C3-500kg-3B Approval OIML R60 C3 Short name L6E Single Point Load Cell · 500 kg · L6E-C3-500kg-3B
