L6H5-20kg C3 Single Point Load CellZemic L6H5 20 kg Single Point Load Cell (L6H5-C3-20kg-0.5B)
SKU 24014
IP65; Aluminum; Analog signal; OIML R60 C3; 4 wires
71.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Zemic L6H5-C3-20kg-0.5B is the 20 kg capacity Zemic L6H5, a colourless-anodized aluminum single point load cell for platform scales built on one or two load cells, manufactured in aluminum with IP65 ingress protection. This model is OIML R60 C3.
20 kgRated capacityAluminumMaterialIP65Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number L6H5-C3-20kg-0.5B Capacity 20 kg Approval OIML R60 C3 Rated output 2.0 ± 0.2 mV/V Dimensions 80 × 20 × 50 mm Material Aluminum, colourless anodized Protection IP65 (EN 60529) Signal Analog Input resistance 406 ± 6 Ω Output resistance 350 ± 3 Ω Insulation resistance ≥ 5000 MΩ @ 50 V Zero balance ≤ ±2.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 V Maximum excitation 18 V Safe overload 120 %FS Ultimate overload 150 %FS Corner (eccentric load) correction ± 0.002 % of load per cm Cable 4-conductor shielded PVC, AWG 26, 0.5 m, 3.8 mm diameter, shield not connected to element Wiring Excitation (+) red, Excitation (−) black, Signal (+) green, Signal (−) white Certificates OIML test certificate TC7839 Revision 0; OIML C of C R60/2000-NL1-10.23 Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/15000 Combined error ≤ ±0.023 %FS Creep (30 min) ≤ ±0.0245 %FS Temperature effect on sensitivity ≤ ±0.017 %FS/10 °C Temperature effect on zero ≤ ±0.020 %FS/10 °C Maximum platform size 200 × 200 mm Mounting 2 × M8×1.25 threaded holes at each end (4 total), 10 mm deep; recommended bolt torque 25 N·m 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic L6H5 20 kg Single Point Load Cell (L6H5-C3-20kg-0.5B) 24014 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther L6H5 capacities.

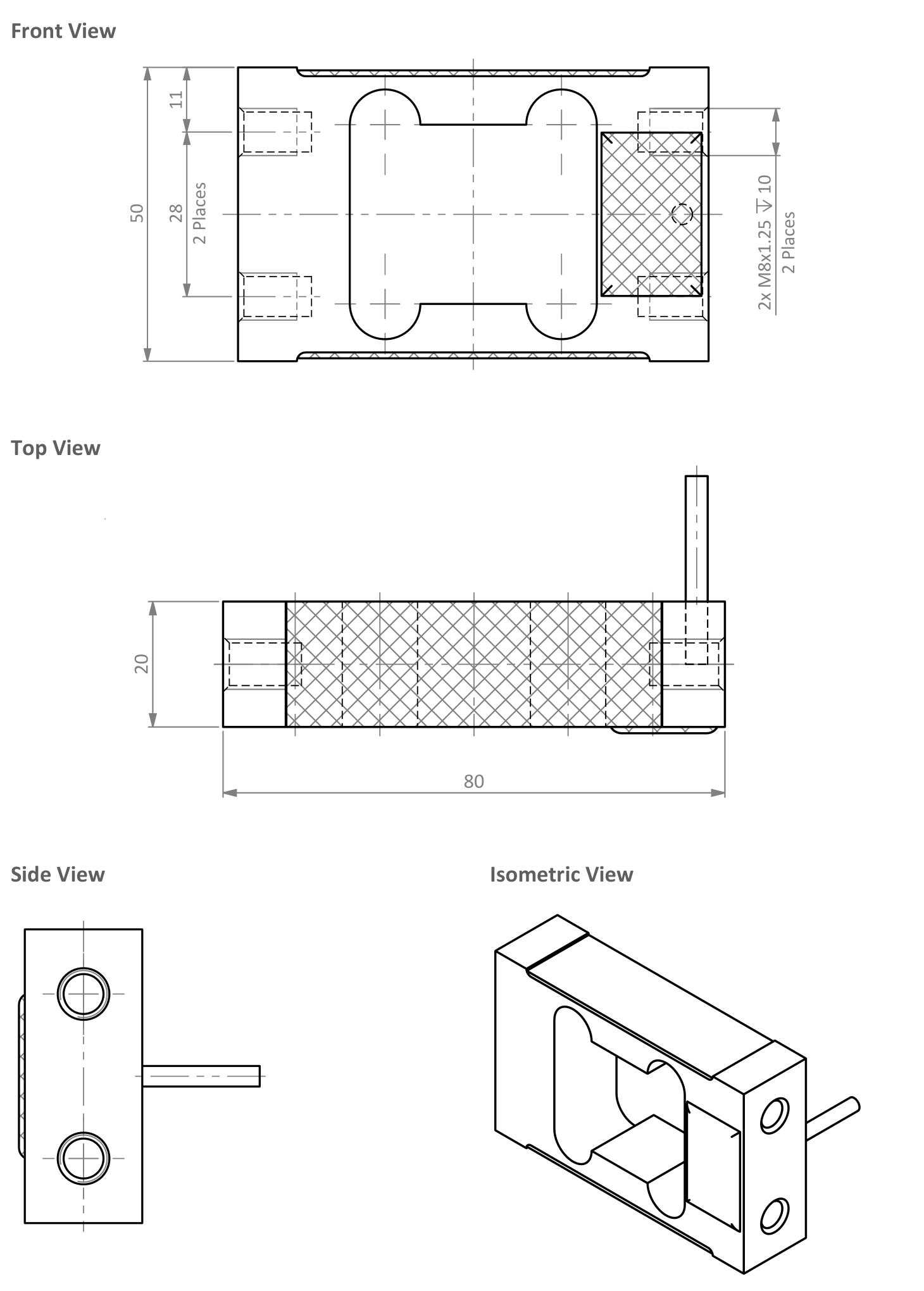

Capacity Manufacturer part number SKU Approval Price 4 kg L6H5-C3-4kg-0.5B 24009 OIML R60 C3 $71.00 5 kg L6H5-C3-5kg-0.5B 24010 OIML R60 C3 $71.00 6 kg L6H5-C3-6kg-0.5B 24011 OIML R60 C3 $71.00 8 kg L6H5-C3-8kg-0.5B 24012 OIML R60 C3 $71.00 10 kg L6H5-C3-10kg-0.5B 24013 OIML R60 C3 $71.00 DIMENSIONSOutline dimensions.
Source: Zemic L6H5 datasheet Signal Analog Protection class IP65 Material Aluminum Combined error ≤ ±0.023 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0245 %FS / 30 min (C3) Eccentric loading error ±0.002 %LD/cm Input impedance 406 ± 6 Ω Insulation resistance ≥ 5000 MΩ @ 50 V Internal Battery -- Maximum excitation 18 V Maximum number of intervals 3000 nLC Maximum safe overload 120 %FS Max platform size 200 × 200 mm Operating temp range −35 to +65 °C Output impedance 350 ± 3 Ω Rated capacity 20 kg Rated output 2.0 ± 0.2 mV/V Recommended excitation 5 ~ 12 V Ultimate central overload 150 %FS Zero balance ≤ ±2.0 %FS Manufacturer Zemic Accuracy C3 Number of Wires 4 wires Manufacturer's Part Number L6H5-C3-20kg-0.5B Approval OIML R60 C3 Short name L6H5-20kg C3 Single Point Load Cell Hero chips IP65; Aluminum; Analog signal; OIML R60 C3; 4 wires
