L6J-10kg C3D Single Point Load CellZemic L6J 10 kg Single Point Load Cell (L6J-C3D-10kg-0.45B)
SKU 24020
IP65; Aluminum; Analog signal; 4 wires
47.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Zemic L6J-C3D-10kg-0.45B is the 10 kg capacity Zemic L6J, a parallel-beam single point load cell for electronic balances and other electronic weighing devices, manufactured in aluminum with IP65 ingress protection.
10 kgRated capacityAluminumMaterialIP65Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number L6J-C3D-10kg-0.45B Capacity 10 kg Rated output 1.5 ± 0.2 mV/V Dimensions 88 × 16 × 32 mm Material Aluminum, anodized, silicone-sealed parallel beam Protection IP65 Signal Analog Input resistance 409 ± 6 Ω Output resistance 350 ± 3 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 2 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Corner (eccentric load) correction 0.02 % of load value per 100 mm Cable 4-conductor shielded PVC, 0.45 ± 0.05 m, 3.0 ± 0.2 mm diameter Wiring Input (+) red, Output (−) white, Input (−) black, Output (+) green Accuracy class C3D Maximum verification intervals (nmax) 2500 Minimum verification interval (vmin) Emax/5000 Combined error ≤ ±0.030 %FS Creep (30 min) ≤ ±0.020 %FS Temperature effect on sensitivity ≤ ±0.021 %FS/10 °C Temperature effect on zero ≤ ±0.028 %FS/10 °C Maximum platform size 200 × 200 mm Mounting 2 × M5 threaded holes, 18 mm deep, at each end 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic L6J 10 kg Single Point Load Cell (L6J-C3D-10kg-0.45B) 24020 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther L6J capacities.
Capacity Manufacturer part number SKU Price 1 kg L6J-C3D-1kg-0.45B 24015 $47.00 2 kg L6J-C3D-2kg-0.45B 24016 $47.00 3 kg L6J-C3D-3kg-0.45B 24017 $47.00 5 kg L6J-C3D-5kg-0.45B 24018 $47.00 8 kg L6J-C3D-8kg-0.45B 24019 $47.00 15 kg L6J-C3D-15kg-0.45B 24021 $47.00 20 kg L6J-C3D-20kg-0.45B 24022 $47.00 DIMENSIONSOutline dimensions.

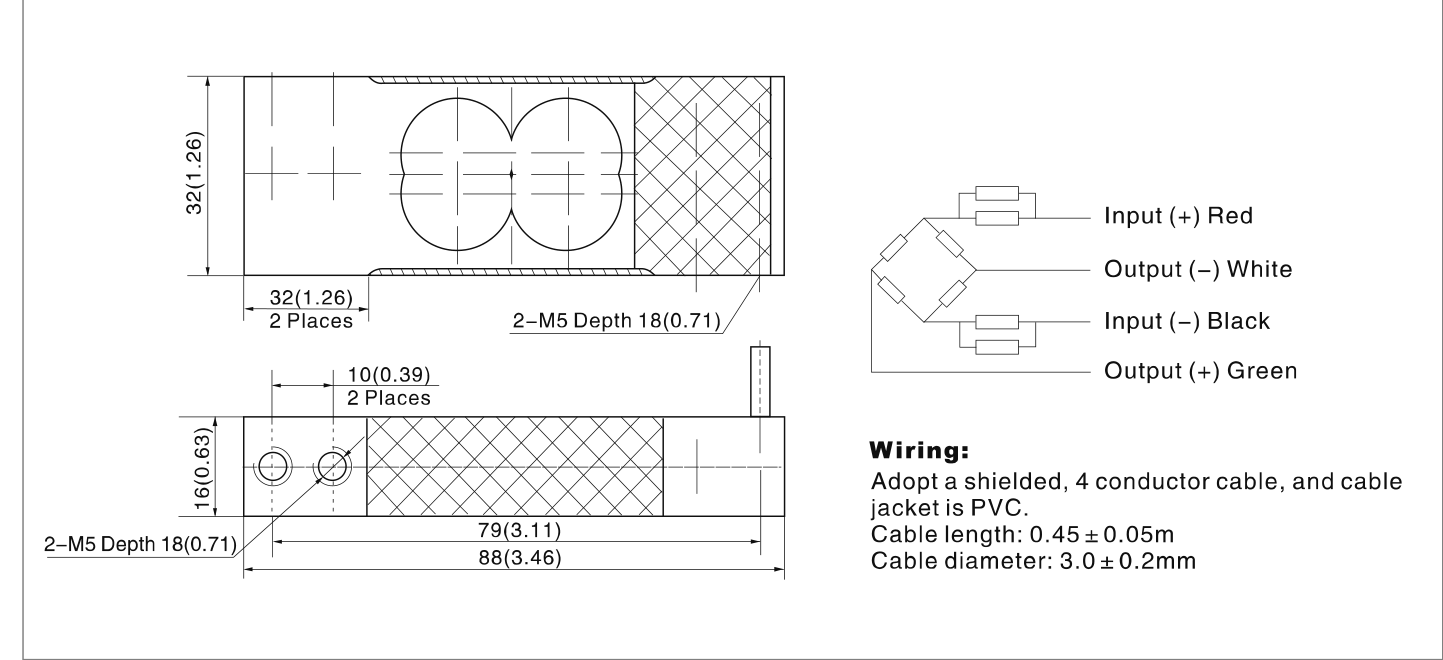

Source: Zemic L6J datasheet Signal Analog Protection class IP65 Material Aluminum Combined error ≤ ±0.030 %FS (C3D) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.020 %FS / 30 min (C3D) Eccentric loading error 0.02 %LD/100 mm Input impedance 409 ± 6 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 2500 nLC Maximum safe overload 150 %FS Max platform size 200 × 200 mm Operating temp range −35 to +65 °C Output impedance 350 ± 3 Ω Rated capacity 10 kg Rated output 1.5 ± 0.2 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 2 %FS Manufacturer Zemic Accuracy C3D Number of Wires 4 wires Manufacturer's Part Number L6J-C3D-10kg-0.45B Short name L6J-10kg C3D Single Point Load Cell Hero chips IP65; Aluminum; Analog signal; 4 wires
