Zemic · Load cell
L6L-5kg C3D Single Point Load CellZemic L6L 5 kg Single Point Load Cell (L6L-C3D-5kg-1B)
SKU 24029
IP65; Aluminum; Analog signal; 4 wires
71.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Zemic L6L-C3D-5kg-1B is the 5 kg capacity Zemic L6L, a parallel-beam single point load cell for electronic balances and other electronic weighing devices, manufactured in aluminum with IP65 ingress protection.
5 kgRated capacityAluminumMaterialIP65Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number L6L-C3D-5kg-1B Capacity 5 kg Rated output 2.0 ± 0.2 mV/V Dimensions L 150 × H 40 mm Material Aluminum, anodized, silicone-sealed parallel beam Protection IP65 Signal Analog Input resistance 394 ± 6 Ω Output resistance 350 ± 3 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 2 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Corner (eccentric load) correction 0.02 % of load value per 100 mm Cable 4-conductor shielded PVC, 1.0 ± 0.05 m, 5.3 ± 0.2 mm diameter Wiring Input (+) red, Output (−) white, Input (−) black, Output (+) green Accuracy class C3D Maximum verification intervals (nmax) 2500 Minimum verification interval (vmin) Emax/5000 Combined error ≤ ±0.030 %FS Creep (30 min) ≤ ±0.020 %FS Temperature effect on sensitivity ≤ ±0.021 %FS/10 °C Temperature effect on zero ≤ ±0.028 %FS/10 °C Maximum platform size 350 × 400 mm Mounting One end: 2 × M6 threaded holes, 20 mm deep, and 1 × M6-7H through hole; other end (F view): 4 × M6 threaded holes, 20 mm deep 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic L6L 5 kg Single Point Load Cell (L6L-C3D-5kg-1B) 24029 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther L6L capacities.
Capacity Manufacturer part number SKU Price 8 kg L6L-C3D-8kg-1B 24030 $71.00 10 kg L6L-C3D-10kg-1B 24031 $71.00 15 kg L6L-C3D-15kg-1B 24032 $71.00 20 kg L6L-C3D-20kg-1B 24033 $71.00 30 kg L6L-C3D-30kg-1B 24034 $71.00 50 kg L6L-C3D-50kg-1B 24035 $80.00 80 kg L6L-C3D-80kg-1B 24036 $80.00 100 kg L6L-C3D-100kg-1B 24037 $80.00 150 kg L6L-C3D-150kg-1B 24038 $80.00 200 kg L6L-C3D-200kg-1B 24039 $80.00 DIMENSIONSOutline dimensions.

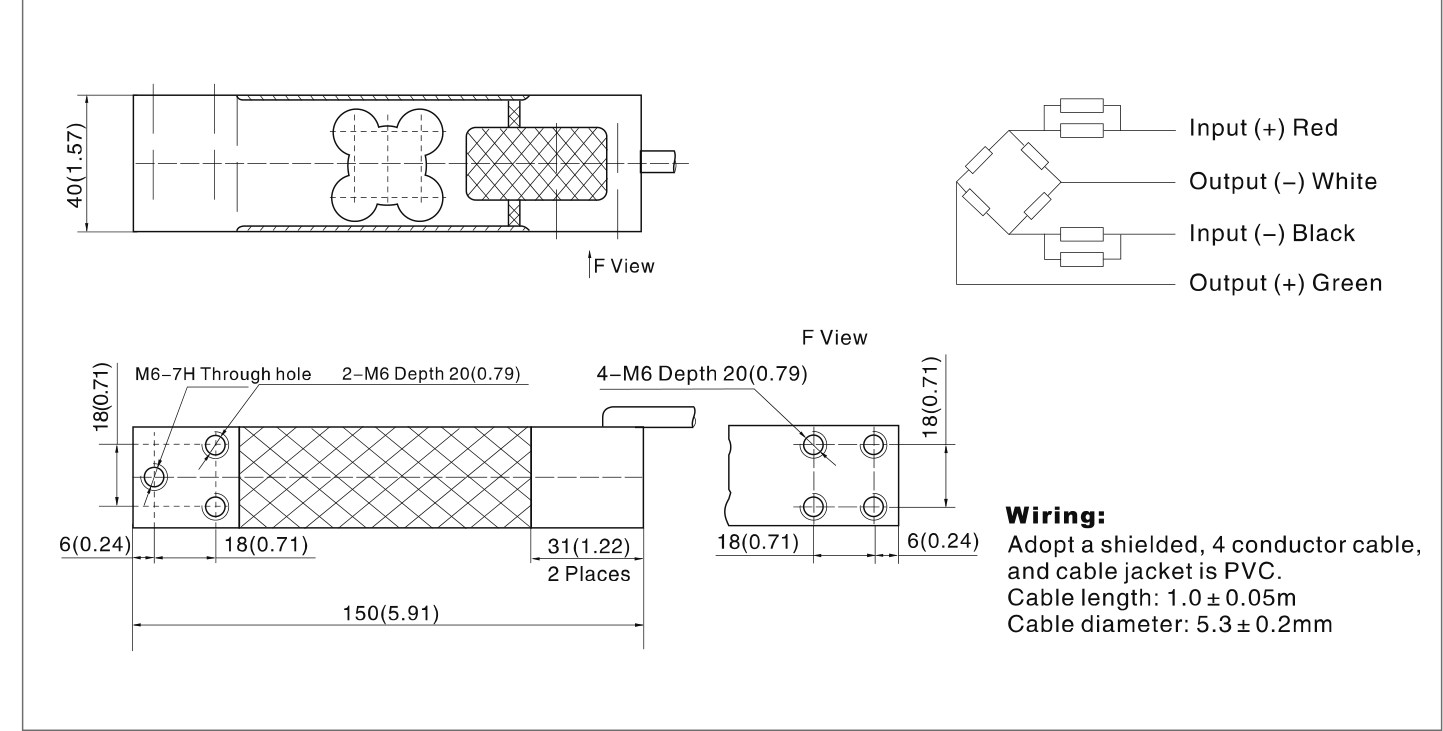

Source: Zemic L6L datasheet Signal Analog Protection class IP65 Material Aluminum Combined error ≤ ±0.030 %FS (C3D) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.020 %FS / 30 min (C3D) Eccentric loading error 0.02 %LD/100 mm Input impedance 394 ± 6 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 2500 nLC Maximum safe overload 150 %FS Max platform size 350 × 400 mm Operating temp range −35 to +65 °C Output impedance 350 ± 3 Ω Rated capacity 5 kg Rated output 2.0 ± 0.2 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 2 %FS Manufacturer Zemic Accuracy C3D Number of Wires 4 wires Manufacturer's Part Number L6L-C3D-5kg-1B Short name L6L-5kg C3D Single Point Load Cell Hero chips IP65; Aluminum; Analog signal; 4 wires
