Tedea-Huntleigh 01140-100K-G0-02X 100 kg Single Point Load Cell
SKU 10207
IP65; Stainless Steel; Analog signal; 6 wires
320.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Tedea-Huntleigh 01140-100K-G0-02X is a 100 kg capacity variation of the Tedea-Huntleigh 1140 single-point load cell family, manufactured in stainless steel with IP65 ingress protection. This model is Accuracy class G0 — Non-Approved.
100 kgRated capacityStainless steelMaterialIP65Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Tedea-Huntleigh Manufacturer part number 01140-100K-G0-02X Capacity 100 kg Approval Accuracy class G0 — Non-Approved Rated output 2.0 mV/V Material Stainless steel Protection IP65 Signal Analog Cable length 1.0 m Cable type 6-wire, PVC, single floating screen Rated output tolerance 0.2 ± mV/V Zero balance 0.2 ± mV/V Compensated temperature range -10 to +40 °C Safe temperature range -20 to +70 °C Maximum safe central overload 150 % of R.C. Ultimate central overload 300 % of R.C. Recommended excitation 10 VDC or VAC RMS Maximum excitation 15 VDC or VAC RMS Input impedance 385 ± 15 Ω Output impedance 350 ± 3 Ω Insulation resistance > 2000 MΩ Platform size (max) 400 x 400 mm 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Tedea-Huntleigh 01140-100K-G0-02X 100 kg Single Point Load Cell 10207 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

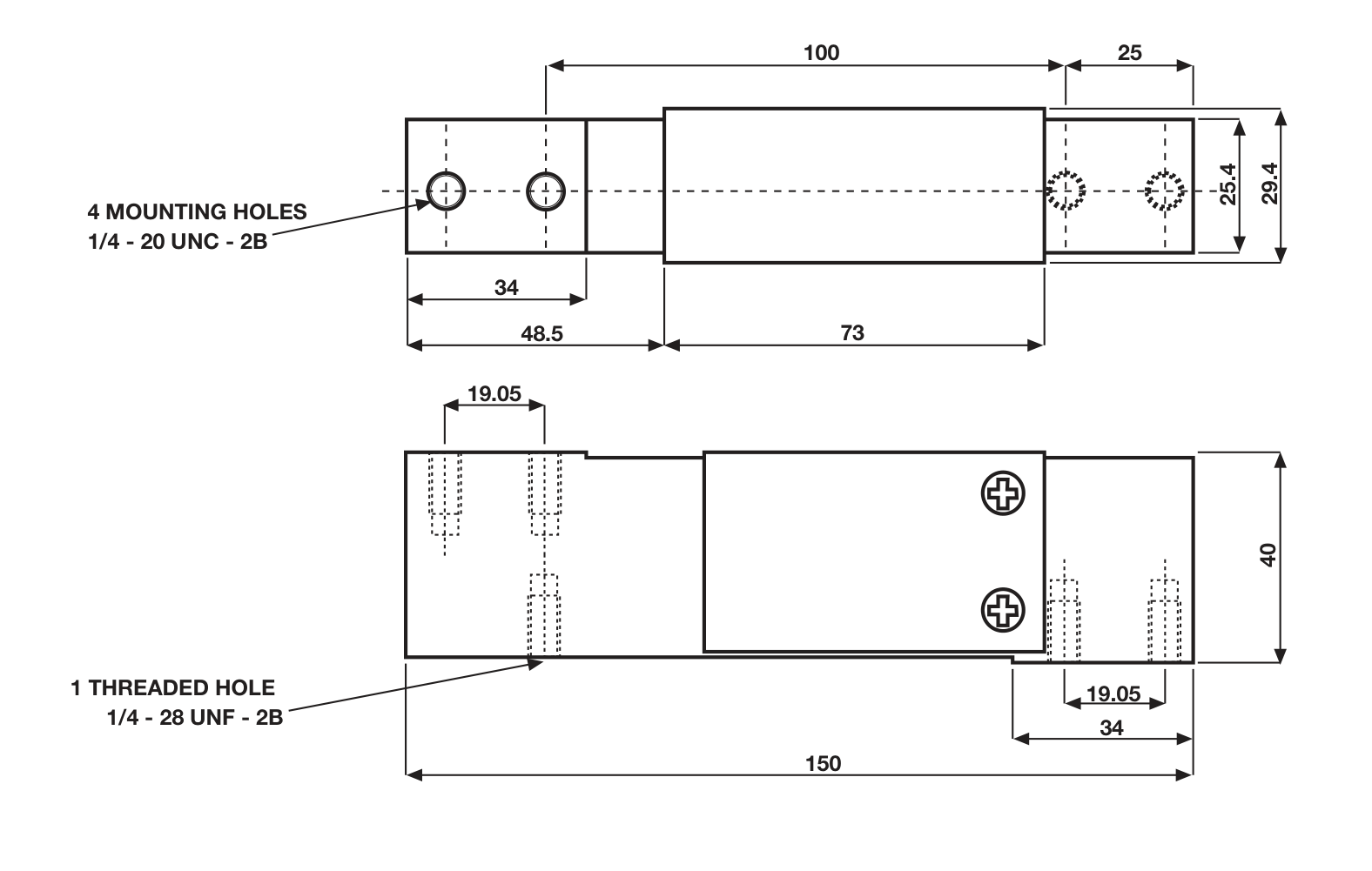

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP65 Material Stainless Steel Combined error ≤ ±0.0200 %RO Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0170 % / 30 min Input impedance 385 ± 15 Ω Insulation resistance > 2000 MΩ Internal Battery -- Maximum excitation 15 VDC / VAC RMS Maximum safe overload 150 %RC Max platform size 400 × 400 mm Operating temp range −20 to +70 °C Output impedance 350 ± 3 Ω Rated capacity 100 kg Rated output 2.0 mV/V Recommended excitation 10 VDC / VAC RMS Ultimate central overload 300 %RC Zero balance ± 0.2 mV/V Number of Wires 6 wires Manufacturer's Part Number 01140-100K-G0-02X Hero chips IP65; Stainless Steel; Analog signal; 6 wires
