Tedea-Huntleigh 00355-050K-C3-72X 50 kg Shear Beam Load Cell
SKU 10066
IP68; Stainless Steel; Analog signal; OIML; 2.0±0.002 mV/V
365.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Tedea-Huntleigh 00355-050K-C3-72X is a 50 kg capacity variation of the Tedea-Huntleigh 355 shear beam load cell family, manufactured in stainless steel with IP68 ingress protection. This model is Accuracy class C3 — OIML R60 (20% utilization).
50 kgRated capacityStainless steelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Tedea-Huntleigh Manufacturer part number 00355-050K-C3-72X Capacity 50 kg Approval Accuracy class C3 — OIML R60 (20% utilization) Rated output 2.00 mV/V Material Stainless steel Protection IP68 Signal Analog Cable length 3 m Cable type 6-wire, braided, polyurethane, dual floating screen Rated output tolerance 0.002 ± mV/V Zero balance 0.04 ± mV/V Compensated temperature range -10 to +40 °C Safe temperature range -20 to +70 °C Maximum safe central overload 150 % of R.C. Ultimate central overload 300 % of R.C. Recommended excitation 10 VDC or VAC RMS Maximum excitation 15 VDC or VAC RMS Input impedance 380 ± 10 Ω Output impedance 355 ± 5 Ω Insulation resistance > 2000 MΩ 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Tedea-Huntleigh 00355-050K-C3-72X 50 kg Shear Beam Load Cell 10066 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

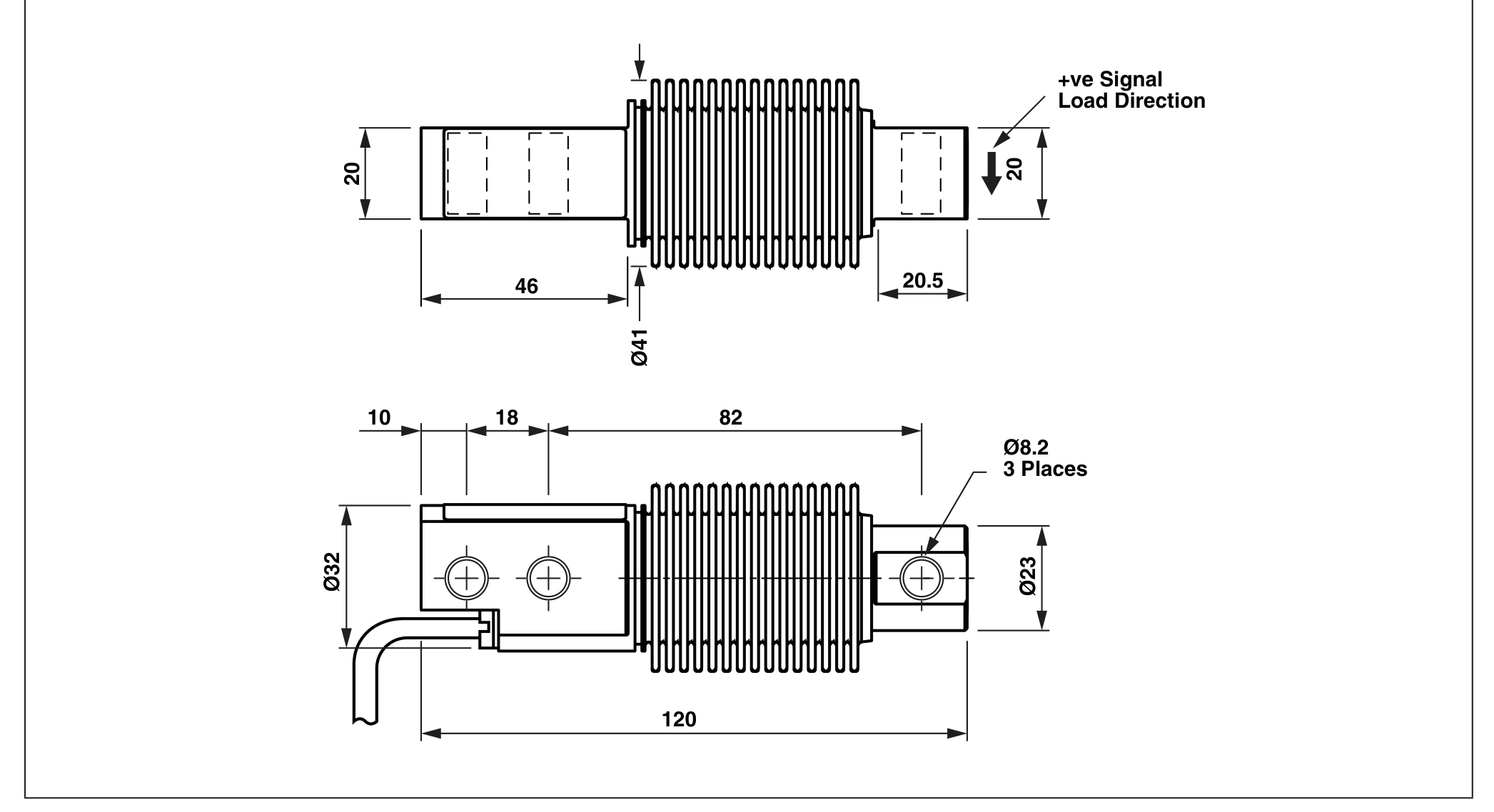

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.0200 %RO (C3) Creep error 20mins ≤ ±0.0170 % / 30 min (C3) Internal Battery -- Maximum excitation 15 VDC or VAC RMS Maximum safe overload 300% of R.C. Max platform size - NTEP/OIML OIML Operating temp range -10°C ... +40°C Rated capacity 50 kg Rated output 2.00 mV/V Recommended excitation 10 VDC or VAC RMS Recommended torque 22 Nm Sensitivity 2.0±0.002 mV/V Storage temp range -20°C ... +70°C Manufacturer Vishay-Tedea Cable type 6 wire, braided, Polyurethane, dual floating screen Cable length 3m Interchangeable Cardinal CB6, Celtron HBB, HBM Z6, Mettler Toledo MTB, Revere SHB, Rice Lake RLHBB, Coti CG-Z6, Totalcomp TZ6 Manufacturer's Part Number 00355-050K-C3-72X Approval OIML Hero chips IP68; Stainless Steel; Analog signal; OIML; 2.0±0.002 mV/V
