Berman BRP-30T 30 t Compression Load Cell
No · Load cell

BRP Load Cell · 30T · BRP-30T

SKU 10581
30 t; IP68; Stainless Steel; Analog signal
360.00
☎ x305
$360.00
  • 10581 - Berman BRP-30T 30 t Compression Load Cell
  • Type: Compression Load Cell
  • Manufacturer part number: BRP-30T
  • Capacity: 30 t
  • Material: Stainless steel
  • Protection: IP68 (EN 60529)

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 03Compression Load Cell

    Compression Load Cell for confirmed-fit replacement and scale builds.

    The Berman BRP-30T is a 30 t capacity variation of the Berman BRP rocker column compression load cell family, manufactured in stainless steel with IP68 (EN 60529) ingress protection.

    30 t
    Rated capacity
    Stainless steel
    Material
    IP68 (EN 60529)
    Protection
    02 / 03Technical data

    Verified specifications for this SKU.

    ManufacturerBerman
    Manufacturer part numberBRP-30T
    Capacity30 t
    Rated output2.0 ± 0.005 mV/V
    DimensionsØ76 x 200 mm
    MaterialStainless steel
    ProtectionIP68 (EN 60529)
    SignalAnalog
    Input impedance700 ± 20 Ω
    Output impedance702 ± 5 Ω
    Insulation resistance≥ 5000 MΩ
    Zero balance± 1 %FS
    Compensated temperature−10 to +40 °C
    Operating temperature−30 to +70 °C
    Recommended excitation5 VDC
    Maximum excitation15 VDC
    Total error± 0.03 %FS
    Creep (30 min)± 0.03 %FS
    Temperature effect on zero± 0.03 %FS / 10 °C
    Temperature effect on span± 0.03 %FS / 10 °C
    Safe overload150 %FS
    Ultimate overload300 %FS
    Cable20 m, Ø5 mm, 6 wires
    03 / 03Part number reference

    Order code and fit FAQ.

    ProductOrder code
    Berman BRP-30T 30 t Compression Load Cell10581

    Is the SKU enough to confirm replacement?

    Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

    Can WeightechUSA help identify a match?

    Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

    Talk to a WeightechUSA load-cell specialist.

    Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

    Email SalesView DatasheetCall +1 (954) 666-0877 × 305

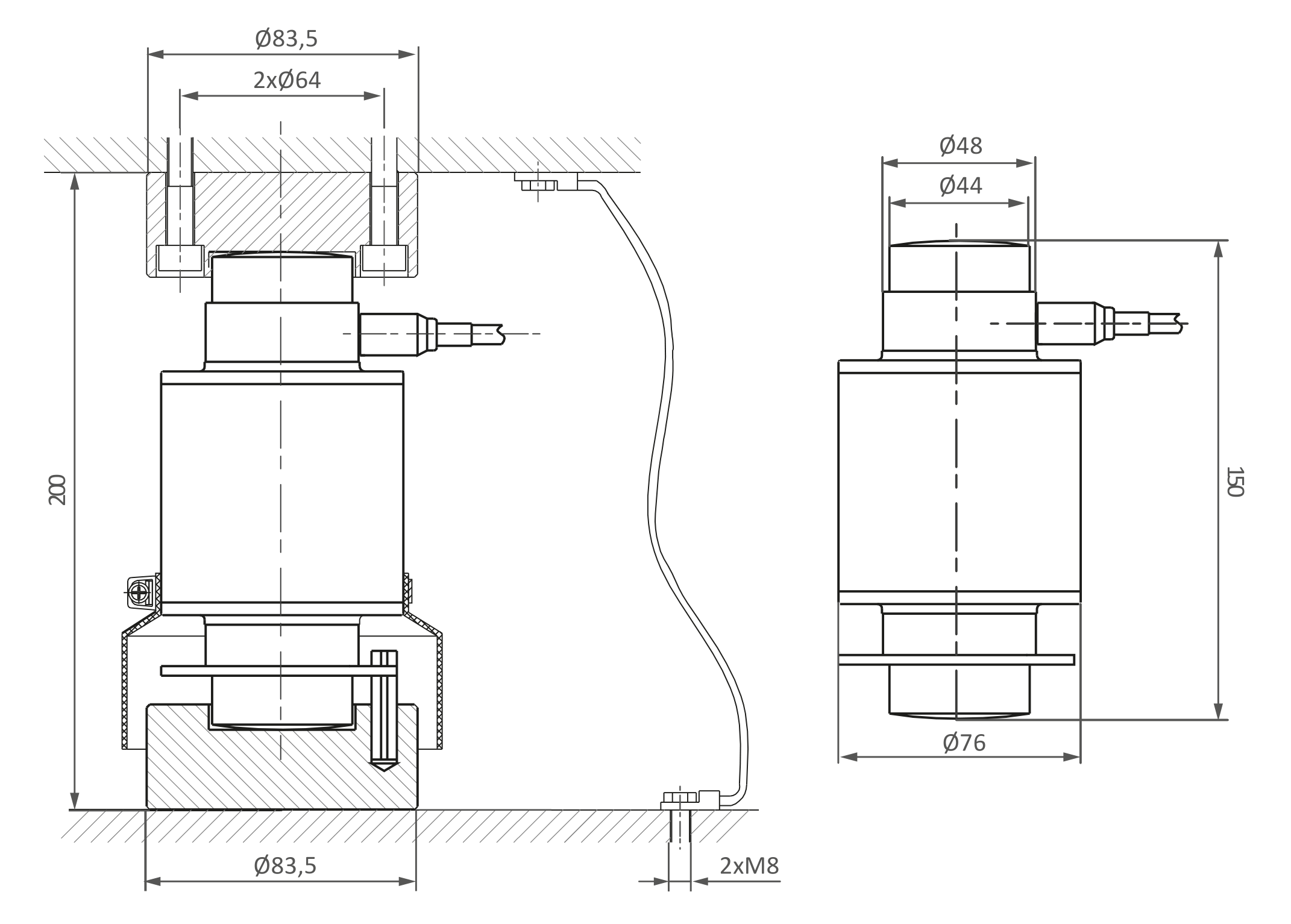

    DIMENSIONS

    Outline dimensions.

    Berman BRP-30T compression load cell dimensions drawing
    Source: Berman BRP datasheet (WeightechUSA)
