BRP Load CellBerman BRP Stainless Steel Rocker Column Load Cell
SKU brp-30-40
30–40 t; IP68; Stainless Steel; Analog signal; 2.0 mv/V
360.00
- Description
- Additional Information
- 01 / 02Compression Load Cell
Berman BRP compression load cell family.
The Berman BRP is a rocker column compression load cell family. This page describes the family; use the table below to select the SKU your application requires.
30,000 kg – 40,000 kgKg-line capacity rangeStainless steelMaterial02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Material Stainless steel Protection IP68 (EN 60529) Signal Analog Input impedance 700 ± 20 Ω Output impedance 702 ± 5 Ω Insulation resistance ≥ 5000 MΩ Zero balance ± 1 %FS Compensated temperature −10 to +40 °C Operating temperature −30 to +70 °C Recommended excitation 5 VDC Maximum excitation 15 VDC Total error ± 0.03 %FS Creep (30 min) ± 0.03 %FS Temperature effect on zero ± 0.03 %FS / 10 °C Temperature effect on span ± 0.03 %FS / 10 °C Safe overload 150 %FS Ultimate overload 300 %FS Cable 20 m, Ø5 mm, 6 wires Rated output 2.0 ± 0.005 mV/V CAPACITY TABLEAvailable capacities.

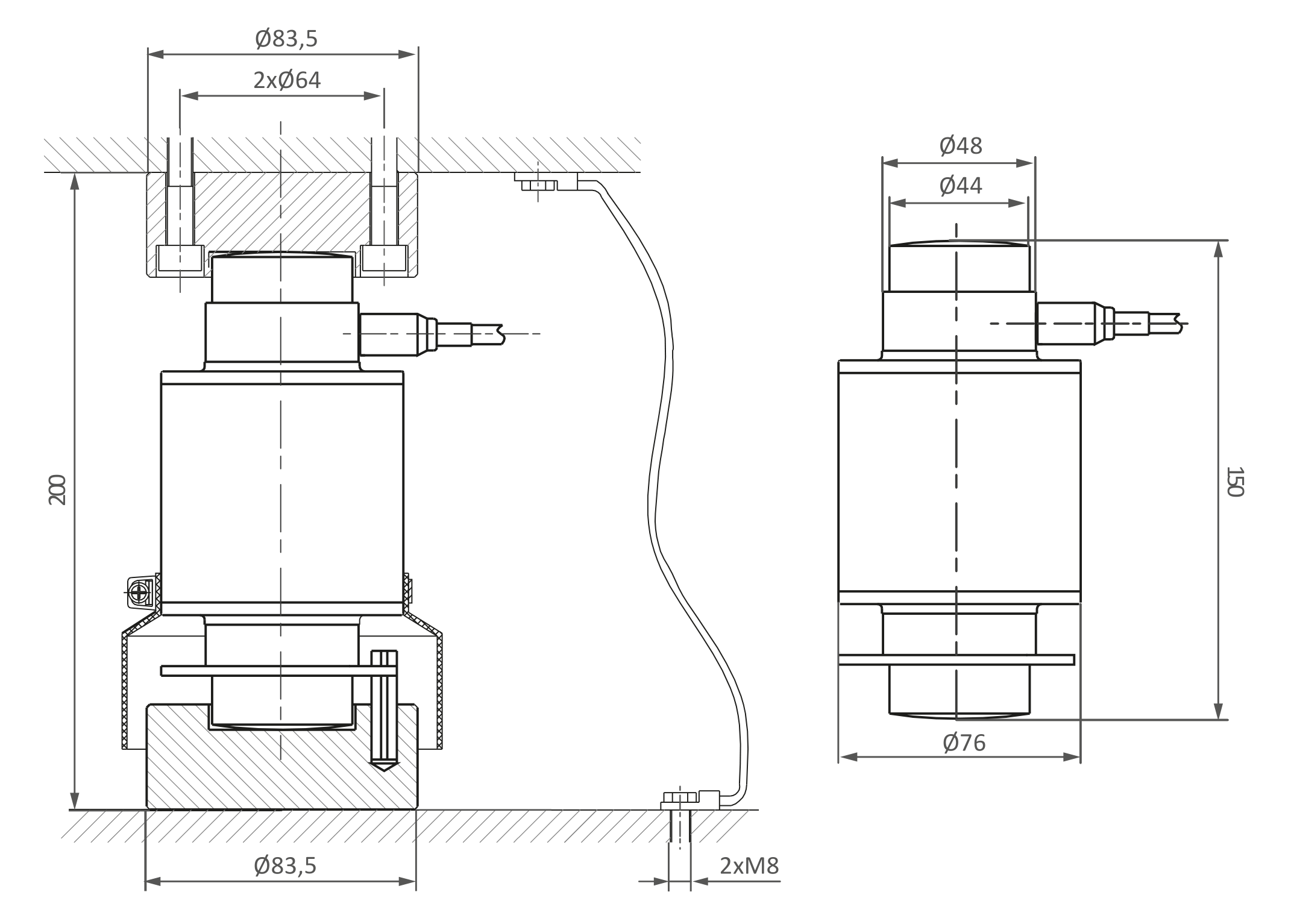

Capacity Manufacturer part number SKU Approval Price 30 t BRP-30T 10581 — $360.00 40 t BRP-40T 10582 — $360.00 DIMENSIONSOutline dimensions.
Source: Berman BRP datasheet (WeightechUSA) Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which BRP SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Creep error 30 mins 0.03% Internal Battery -- Operating temp range -30 - 70 C Sensitivity 2.0 mv/V Cable length 6 wires, 20 m, 5mm Short name BRP Load Cell Hero chips 30–40 t; IP68; Stainless Steel; Analog signal; 2.0 mv/V
