Berman BRP-PLUS/50T 50 t Compression Load Cell
SKU
13531
- Description
- Additional Information
- 01 / 03Compression Load Cell
Compression Load Cell for confirmed-fit replacement and scale builds.
The Berman BRP-PLUS/50T is a 50 t capacity variation of the Berman BRP-Plus rocker column compression load cell family, manufactured in stainless steel with IP68 (EN 60529) ingress protection.
50 tRated capacityStainless steelMaterialIP68 (EN 60529)Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Berman Manufacturer part number BRP-PLUS/50T Capacity 50 t Rated output 2.0 ± 0.005 mV/V Dimensions Ø105 x 200 mm Material Stainless steel Protection IP68 (EN 60529) Signal Analog Input impedance 700 ± 20 Ω Output impedance 703 ± 5 Ω Insulation resistance ≥ 5000 MΩ Zero balance ± 1 %FS Compensated temperature −10 to +40 °C Operating temperature −30 to +70 °C Recommended excitation 10 ~ 12 VDC Maximum excitation 15 VDC Total error ± 0.02 %FS Creep (30 min) ± 0.02 %FS Non-repeatability ± 0.015 %FS Temperature effect on zero ± 0.02 %FS / 10 °C Temperature effect on span ± 0.02 %FS / 10 °C Safe overload 150 %FS Lateral load limit 300 %FS Cable 20 m, Ø6 mm, 4 wires 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Berman BRP-PLUS/50T 50 t Compression Load Cell 13531 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

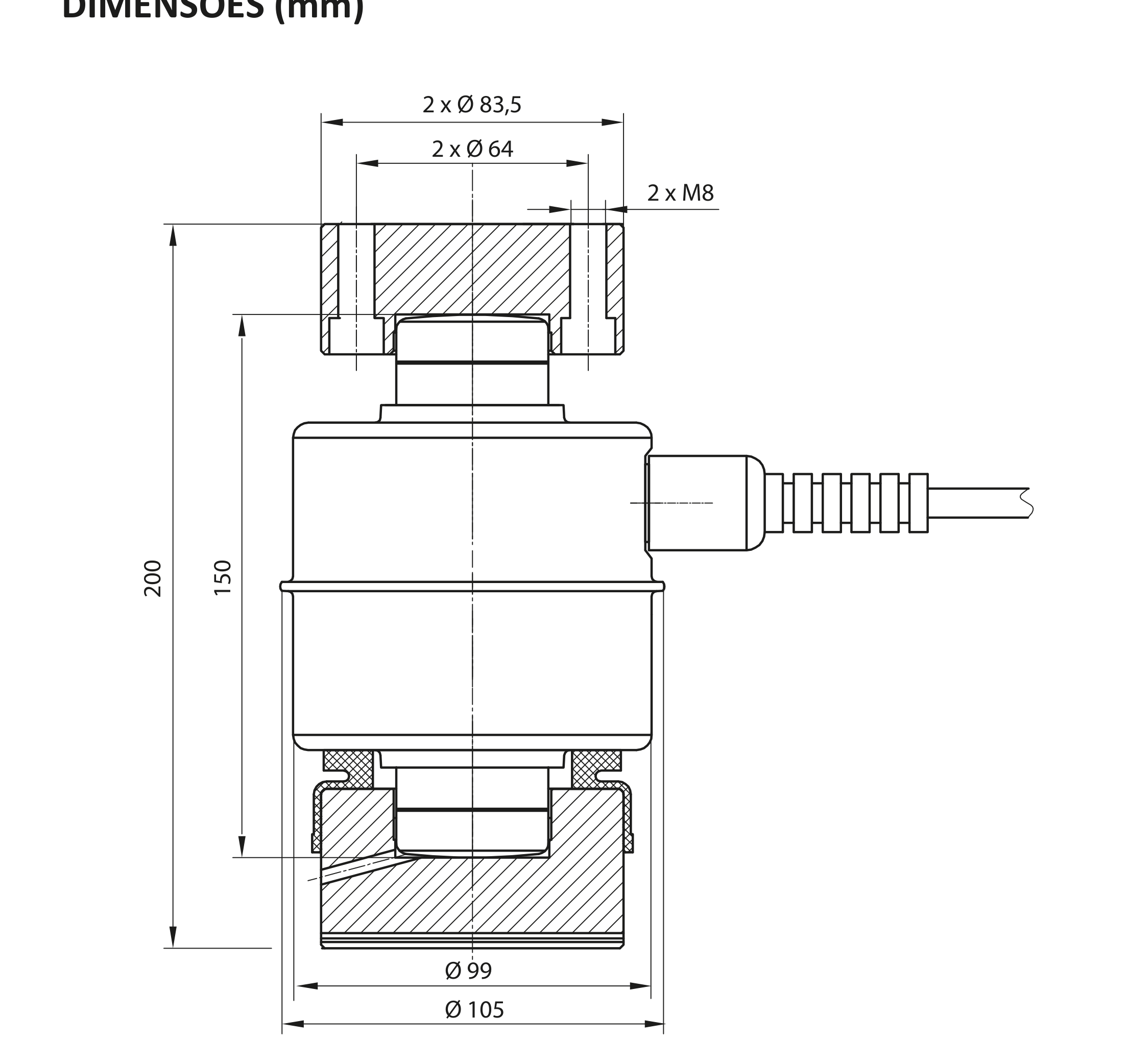

Email SalesView DatasheetCall +1 (954) 666-0877 × 305DIMENSIONSOutline dimensions.
Source: Berman BRP-Plus datasheet (WeightechUSA) Signal Analog Protection class IP68 Material Stainless Steel Combined error ± 0,02 Creep error 30 mins ± 0,02 Input impedance 700 ± 20 Internal Battery -- Maximum safe overload 150 %FS Operating temp range -30 — +70 °C Output impedance 703 ± 5 Rated capacity 50 t Rated output 2.0 ± 0.005 mV/V Sensitivity 2,0 ± 0,005 mV/V Storage temp range -45℃~+90℃ Manufacturer Berman Weighing Technology Cable length 20 m | 4 wires | Diameter: 6mm Working temp range -30℃~+80℃ Manufacturer's Part Number BRP-PLUS/50T Frequency Band H:803-930MHz Transmitting power 10dBm~20dBm Receiving sensitivity [email protected] Transmission distance 3500 meters. Test condition: Open area, clear weather, 20dBm transmitting power, 5dBi antenna gain, height is greater than 2 meters, 0.268K air rate. Antenna SMA Data interface Serial port: Support RS232/RS485. Baud rate: 1200bps~115200bps Working voltage 5V~36V Working current Standby mode: 12mA@12V., Transmitting current: 45mA@12V Working Humidity 10~90%RH Storage Humidity 10~90%RH
