Berman Weighing Technology · Load cell
BRP-Plus Load CellBerman BRP-Plus Stainless Steel Rocker Column Load Cell
SKU Berman-BRP-Plus-Rocker-Column-Load-Cell
IP68; Stainless Steel; Analog signal; 2,0 ± 0,005 mV/V
286.00
- Description
- Additional Information
- 01 / 02Compression Load Cell
Berman BRP-Plus compression load cell family.
The Berman BRP-Plus is a rocker column compression load cell family. This page describes the family; use the table below to select the SKU your application requires.
40,000 kg – 50,000 kgKg-line capacity rangeStainless steelMaterial02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Material Stainless steel Protection IP68 (EN 60529) Signal Analog Input impedance 700 ± 20 Ω Output impedance 703 ± 5 Ω Insulation resistance ≥ 5000 MΩ Zero balance ± 1 %FS Compensated temperature −10 to +40 °C Operating temperature −30 to +70 °C Recommended excitation 10 ~ 12 VDC Maximum excitation 15 VDC Total error ± 0.02 %FS Creep (30 min) ± 0.02 %FS Non-repeatability ± 0.015 %FS Temperature effect on zero ± 0.02 %FS / 10 °C Temperature effect on span ± 0.02 %FS / 10 °C Safe overload 150 %FS Lateral load limit 300 %FS Cable 20 m, Ø6 mm, 4 wires Rated output 2.0 ± 0.005 mV/V CAPACITY TABLEAvailable capacities.

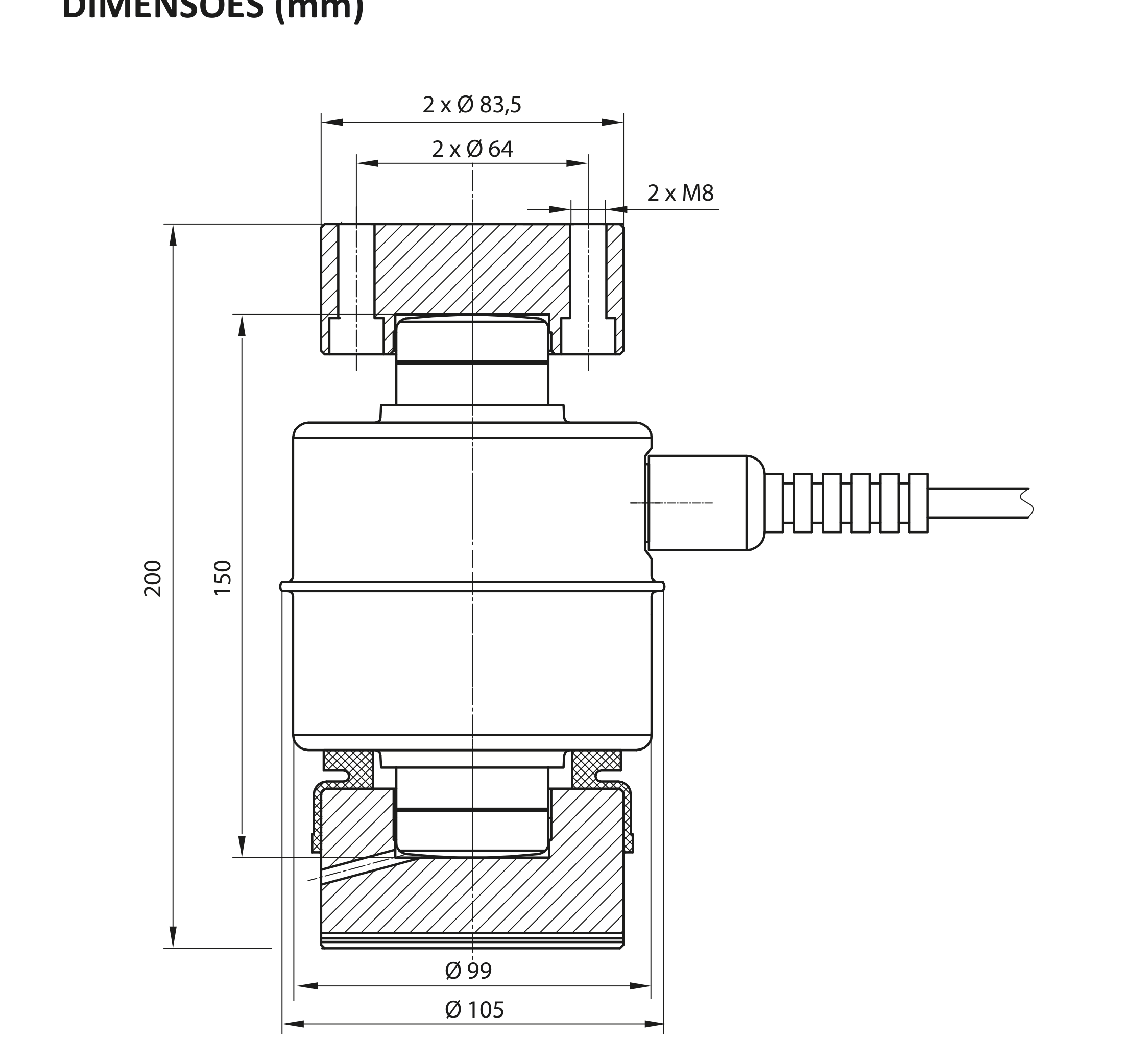

Capacity Manufacturer part number SKU Approval Price 40 t BRP-PLUS/40T 13530 — $286.00 50 t BRP-PLUS/50T 13531 — $371.00 DIMENSIONSOutline dimensions.
Source: Berman BRP-Plus datasheet (WeightechUSA) Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which BRP-Plus SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Combined error ± 0,02 Creep error 30 mins ± 0,02 Input impedance 700 ± 20 Internal Battery -- Operating temp range -30 — +70 °C Output impedance 703 ± 5 Sensitivity 2,0 ± 0,005 mV/V Manufacturer Berman Weighing Technology Cable length 20 m | 4 wires | Diameter: 6mm Accuracy C3 Short name BRP-Plus Load Cell Hero chips IP68; Stainless Steel; Analog signal; 2,0 ± 0,005 mV/V
