HBM · Load cell
H35 Shear Beam Load Cell · 500 lb · 1-H35AN5/500-1HBM 1-H35AN5/500-1 500 lb Shear Beam Load Cell
SKU 10321
IP68; Stainless Steel; Analog signal; NTEP
473.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The HBM 1-H35AN5/500-1 is a 500 lb capacity variation of the HBM 1-H35AN5 hermetically sealed shear beam load cell family, manufactured in stainless steel with IP68 ingress protection.
500 lbRated capacityStainless steelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer HBM Manufacturer part number 1-H35AN5/500-1 Capacity 500 lb Rated output 3.0 ± 0.1% mV/V Dimensions 130 x 28.4 x 30.7 mm Material Stainless steel Protection IP68 Signal Analog Input impedance > 350 Ω Output impedance 350 ± 2 Ω Insulation resistance > 5000 MΩ (100 V) Zero balance 0 ± 0.03 mV/V Compensated temperature −10 to +40 °C Operating temperature −30 to +70 °C Storage temperature −50 to +85 °C Recommended excitation 5 V Maximum excitation 15 V Safe overload 150% FS Ultimate overload 300% FS Creep (30 min) ± 0.03% Deflection at max. capacity 0.5 mm Cable Shielded 4-core round cable (19/0.127 mm), PVC jacket 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code HBM 1-H35AN5/500-1 500 lb Shear Beam Load Cell 10321 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

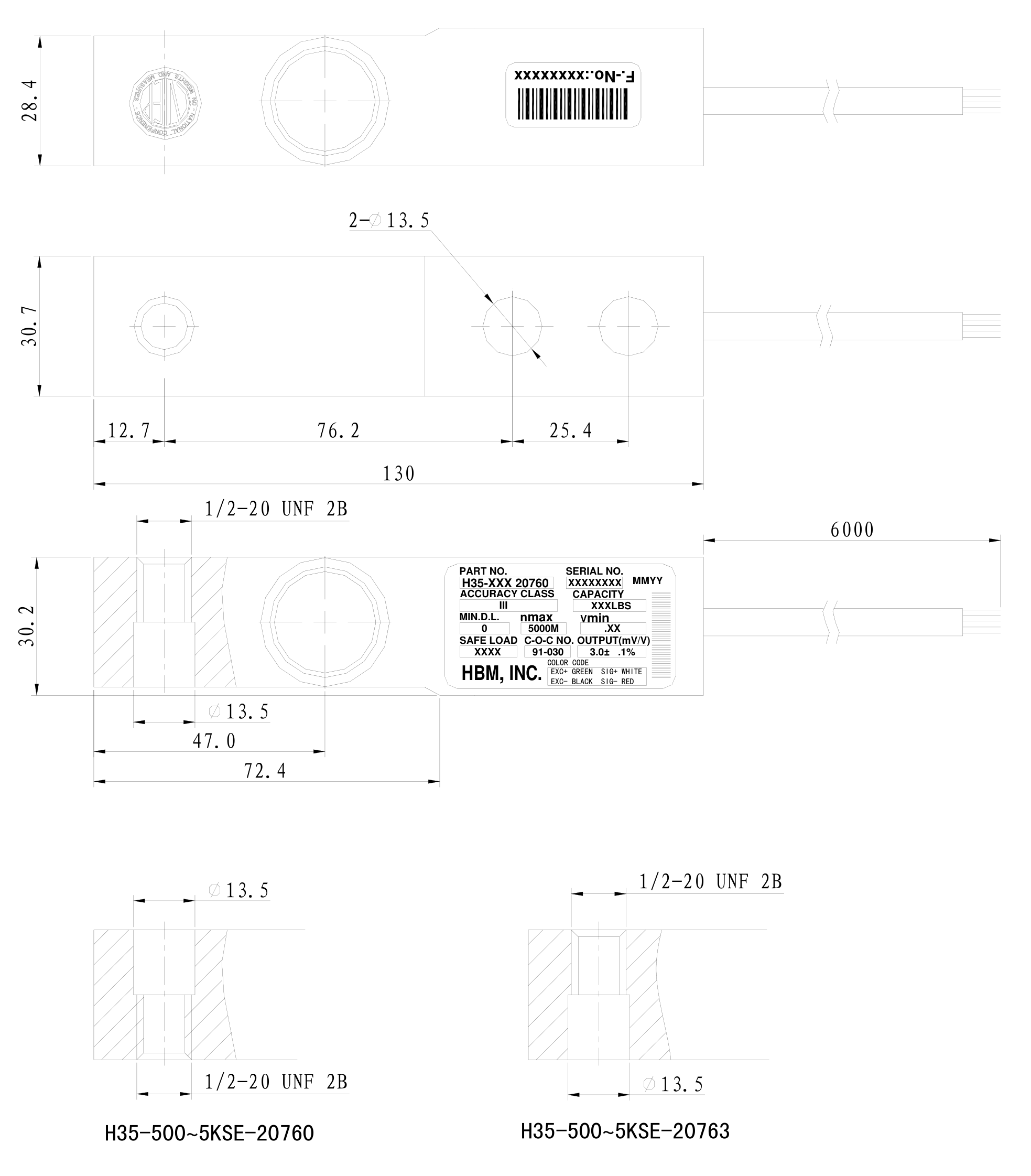

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Compensated temp range −10 to +40 °C Creep error 20mins ± 0.03% / 30 min Input impedance > 350 Ω Insulation resistance > 5000 MΩ (100 V) Internal Battery -- Maximum excitation 15 V Maximum safe overload 150% NTEP/OIML NTEP Class III · CoC 91-030 Operating temp range −30 to +70 °C Output impedance 350 ± 2 Ω Rated capacity 500 lb Rated output 3.0 ± 0.1% mV/V Recommended excitation 5 V Ultimate central overload 300% Zero balance 0 ± 0.03 mV/V Manufacturer HBM Manufacturer's Part Number 1-H35AN5/500-1 Approval NTEP Short name H35 Shear Beam Load Cell · 500 lb · 1-H35AN5/500-1 Hero chips IP68; Stainless Steel; Analog signal; NTEP
