CBL Compression Load Cell · 250 kg · CBL-250kgLaumas CBL-250kg 250 kg Compression Load Cell
SKU 22501
IP68; 17-4 PH Stainless Steel; Analog signal; 6 wires
361.00
- Description
- Additional Information
- 01 / 03Compression Load Cell
Compression Load Cell for confirmed-fit replacement and scale builds.
The Laumas CBL-250kg is a 250 kg capacity variation of the Laumas CBL low-profile compression load cell family, manufactured in 17-4 ph stainless steel with IP68 (IP69K on request) ingress protection.
250 kgRated capacity17-4 PH stainless steelMaterialIP68 (IP69K on request)Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Laumas Manufacturer part number CBL-250kg Capacity 250 kg Rated output 2 ± 0.1% mV/V Dimensions Ø82 x 44 mm Material 17-4 PH stainless steel Protection IP68 (IP69K on request) Signal Analog Input impedance 700 ± 10 Ω Output impedance 700 ± 10 Ω Insulation resistance > 10000 MΩ Zero balance ± 1 %FS Compensated temperature −20 to +70 °C Operating temperature −30 to +90 °C Maximum excitation 15 VDC Safe overload 150 %FS Ultimate overload 300 %FS Creep (30 min) 0.03 %FS Deflection at nominal load 0.4 mm Cable 5 m (250–10,000 kg) / 10 m (12,500–100,000 kg), Ø5 mm, 6 × 0.14 mm² 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Laumas CBL-250kg 250 kg Compression Load Cell 22501 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

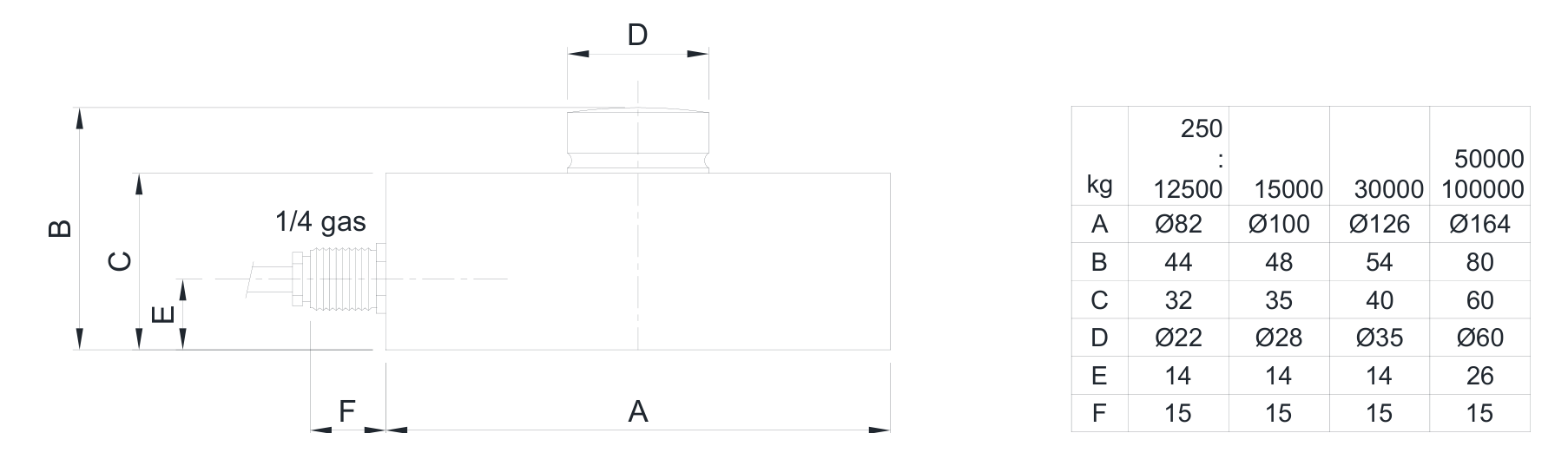

Email SalesView DatasheetCall +1 (954) 666-0877 × 305DIMENSIONSOutline dimensions.
Source: Laumas CBL datasheet Signal Analog Protection class IP68 Material 17-4 PH Stainless Steel Combined error ≤ 0.03 %FS Compensated temp range −20 to +70 °C Creep error 20mins 0.03 %FS / 30 min Input impedance 700 Ω ± 10 Insulation resistance > 10000 MΩ Internal Battery -- Maximum excitation 15 V Maximum safe overload 150 %FS Operating temp range −30 to +90 °C Output impedance 700 Ω ± 10 Rated capacity 250 kg Rated output 2 mV/V ± 0.1 % Storage temp range −30 to +90 °C Ultimate central overload 300 %FS Zero balance ± 1 %FS Number of Wires 6 wires Manufacturer's Part Number CBL-250kg Short name CBL Compression Load Cell · 250 kg · CBL-250kg Hero chips IP68; 17-4 PH Stainless Steel; Analog signal; 6 wires
