CBL Compression Load CellLaumas CBL Compression Load Cell
SKU CBL
380.00
- Description
- Additional Information
- 01 / 02Compression Load Cell
Laumas CBL compression load cell family.
The Laumas CBL is a low-profile compression load cell family. This page describes the family; use the table below to select the SKU your application requires.
250 kg – 100,000 kgKg-line capacity range17-4 PH stainless steelMaterial02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Material 17-4 PH stainless steel Protection IP68 (IP69K on request) Signal Analog Input impedance 700 ± 10 Ω Output impedance 700 ± 10 Ω Insulation resistance > 10000 MΩ Zero balance ± 1 %FS Compensated temperature −20 to +70 °C Operating temperature −30 to +90 °C Maximum excitation 15 VDC Safe overload 150 %FS Ultimate overload 300 %FS Creep (30 min) 0.03 %FS Deflection at nominal load 0.4 mm Cable 5 m (250–10,000 kg) / 10 m (12,500–100,000 kg), Ø5 mm, 6 × 0.14 mm² Rated output 2 ± 0.1% mV/V CAPACITY TABLEAvailable capacities.

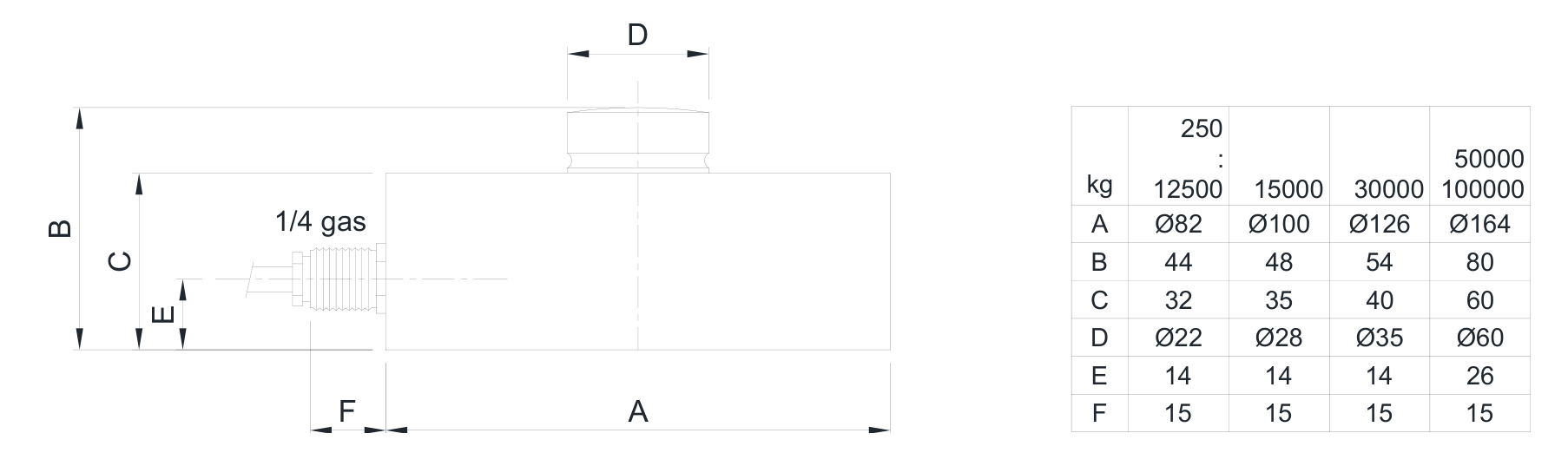

Capacity Manufacturer part number SKU Approval Price 250 kg CBL-250kg 22501 OIML R60 C3 $361.00 500 kg CBL-500kg 22500 OIML R60 C3 $361.00 1,000 kg CBL1000 22502 OIML R60 C3 $361.00 2,500 kg CBL2500 22503 OIML R60 C3 $361.00 5,000 kg CBL5000 22504 OIML R60 C3 $361.00 7,500 kg CBL7500 22495 OIML R60 C3 $361.00 10,000 kg CBL10000 22496 OIML R60 C3 $361.00 15,000 kg CBL15000 22497 OIML R60 C3 $521.00 30,000 kg CBL30000 22498 OIML R60 C3 $742.00 100,000 kg CBL100000 22499 OIML R60 C3 $1,345.00 DIMENSIONSOutline dimensions.
Source: Laumas CBL datasheet Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which CBL SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material 17-4 PH Stainless Steel Combined error ≤ ±0.02 %FS (C3) Compensated temp range −10 to +40 °C Input impedance 700 Ω ± 10 Insulation resistance > 10000 MΩ Internal Battery No Maximum excitation 15 V Maximum safe overload 150 %FS Operating temp range −20 to +70 °C Output impedance 700 Ω ± 10 Rated output 2 mV/V Storage temp range −30 to +90 °C Ultimate central overload 300 %FS Zero balance ± 1 %FS Manufacturer Laumas Cable length 10 m Max Voltage 15V Accuracy C2 Number of Wires 6 wires Approval OIML R60 C3 Short name CBL Compression Load Cell
