Laumas CLM8 Intelligent Junction Box, 8 Independent Channels, Digital Equalization and Diagnostics
451.00
☎ x305
$463.00
  • Laumas CLM8 intelligent junction box, 8 independent load-cell channels
  • Digital equalization, load distribution analysis, automatic diagnostics
  • Up to 16 load cells (350 Ω), 12–24 VDC, RS485 / RS232
  • Versions: board only, DIN rail, IP67 stainless steel box, IP67 polycarbonate box
  • Working temperature -20 to +60 °C; -10 to +40 °C for legal-for-trade use
  • OIML R76:2006 class III, 3 x 10000 divisions; Ethernet TCP/IP option on request

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 05Laumas CLM8 intelligent junction box family

    Eight independent load-cell channels, with digital equalization and diagnostics.

    The Laumas CLM8 is an intelligent junction box with 8 independent channels for load cells. It adds digital equalization, load distribution analysis and automatic diagnostics, a backlit LCD with a 4-key keyboard, and RS485/RS232 communication. This page describes the family; use the table below to pick the version your installation needs.

    8
    Independent load-cell channels
    16
    Load cells max. (350 Ω, in parallel)
    4
    Laumas versions: board, DIN rail, stainless steel, polycarbonate
    IP67
    On the stainless steel and polycarbonate box versions
    02 / 05Versions and SKUs

    Choose the version for your installation.

    All Laumas CLM8 versions share the same instrument and specifications; they differ in mounting and enclosure. The board and DIN rail versions have no enclosure and the datasheet states no IP rating for them: install them in a panel or protective enclosure. The stainless steel and polycarbonate boxes are IP67 (datasheet p.1). Click the SKU's own page for details.

    ProductOrder code
    Laumas CLM8i — board only, no enclosure, 151 x 72 x 30 mm23116
    Laumas CLM8 — Omega/DIN rail mounting, 125 x 92 x 52 mm, no IP rating stated23114

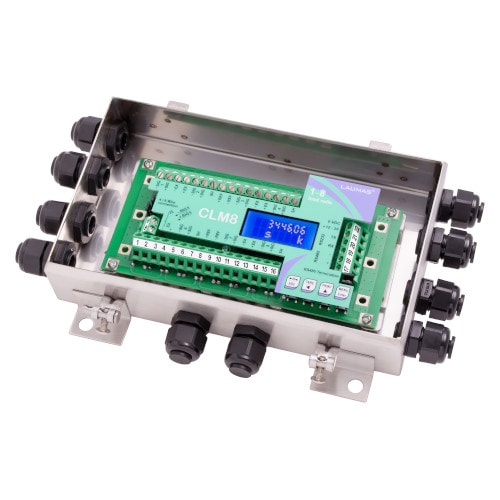

    Laumas CLM8inox — IP67 AISI 304 stainless steel box, 200 x 148 x 45 mm23117
    Laumas CLM8PC — IP67 polycarbonate box with transparent lid, 170 x 140 x 95 mm23128

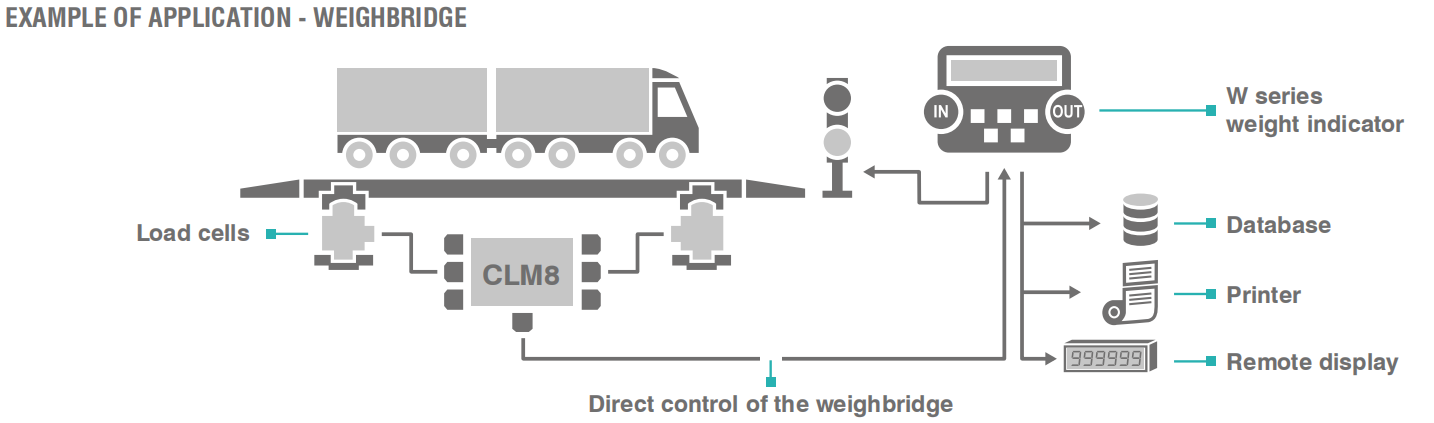

    03 / 05What the CLM8 does

    Intelligent functions on every version.

    01

    Digital equalization

    Place a sample weight at each load cell and the 8 channels are equalized digitally in one step, free of drift over time.

    02

    Load distribution analysis

    Shows the load percentage on each active channel, with an archive to store, consult and print.

    03

    Automatic diagnostics

    Detailed diagnostics of each load cell (max. 8) and immediate reporting of anomalies, including on a connected weight indicator.

    04

    Communication

    RS485 and RS232 with ModBus RTU, ASCII Laumas or continuous one-way transmission. Up to 32 instruments on one RS485 line (99 with repeaters).

    05

    Tilt compensation (optional)

    With an optional inclinometer (not included) the weight is corrected for tilt up to ±10°.

    06

    Event archive

    Stores the last 50 significant events: zeroing, calibration, equalization and alarms.

    04 / 05Technical data

    Series-wide specifications.

    Values that differ per version (enclosure, protection, dimensions) are listed in the table above and on each SKU's own page.

    Brand / modelLaumas CLM8
    Channels8 independent load-cell channels
    Load cellsUp to 16 x 350 Ω, 4/6-wire, 5 VDC / 240 mA supply
    Power supply12–24 VDC ±10%, 5 W (LPS or Class 2 source)
    A/D converter8 channels, 24-bit (16,000,000 points), 4.8 kHz
    Measurement range±39 mV
    Usable load cell sensitivity±7 mV/V
    Linearity<0.01% full scale
    Thermal drift<0.0005% full scale/°C
    DisplayBacklit alphanumeric LCD, 2 lines x 8 digits (5 mm), visible area 38 x 16 mm, 4-key keyboard
    Serial portsRS485, RS232 (ModBus RTU, ASCII Laumas, continuous one-way)
    Baud rate2400, 4800, 9600, 19200, 38400, 115200 bit/s
    Ethernet TCP/IPOption on request (OPZETTCPCLM)
    Humidity85%, non-condensing
    Storage temperature-30 to +80 °C
    Working temperature-20 to +60 °C
    Working temperature, legal-for-trade use-10 to +40 °C (type-approved instruments)
    ApprovalsOIML R76:2006 class III, 3 x 10000 divisions, 0.4 µV/VSI; UL Recognized component (US and Canada); Eurasian Customs Union; UKCA
    PC softwareFree Laumas Instrument Manager
    05 / 05Options, related product and FAQ

    Options and a related WeightechUSA product.

    Options on request (Laumas datasheet p.4): Ethernet TCP/IP (OPZETTCPCLM), alibi memory (OPZWALIBI) and a Posital inclinometer (POSTILTIX-ACS020). Ask us for availability.

    Related WeightechUSA product: the WeightechUSA WTX-CLM8 smart junction box (SKU 23118) is a separate WeightechUSA product built around the CLM8 board in an IP67 stainless steel box with its own power supply. It has its own datasheet and is not one of the Laumas versions in the table above.

    Which CLM8 version should I choose?

    Choose the board (23116) or DIN rail (23114) version to build into your own panel or enclosure, or a boxed IP67 version (stainless steel 23117, polycarbonate 23128) for a ready-to-mount unit.

    What is the working temperature for legal-for-trade use?

    -10 to +40 °C for type-approved instruments (OIML R76:2006 class III, 3 x 10000 divisions). The general working range is -20 to +60 °C.

    Is Ethernet included?

    No. Ethernet TCP/IP is an option on request (OPZETTCPCLM); the standard ports are RS485 and RS232.
