Celtron SQB Shear Beam Load Cell
- Description
- Additional Information
- 01 / 06Shear beam and bending beam load cells
Shear beam and bending beam load cells for confirmed-fit replacement and scale builds.
The Celtron SQB Shear Beam Load Cell is a shear beam or bending beam load cell. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Celtron and the model / part number as Vishay-SQB.
CapacityConfirm from applicationNickel-plated alloy steelMaterialIP67ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Shear and bending beam cells are common choices for floor scales, livestock platforms, tanks, hoppers, and low-to-mid capacity industrial scales.
01Platforms and floor scales
A practical load-cell family for fabricated platforms and summing-box systems.
platform02Tanks and hoppers
Works well when mounts control side load and vessel movement.
vessel03Livestock and agriculture
Often used in platform and chute builds when capacity and environmental rating fit.
ag scale03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm the rated capacity against dead load, live load, impact, and load distribution.

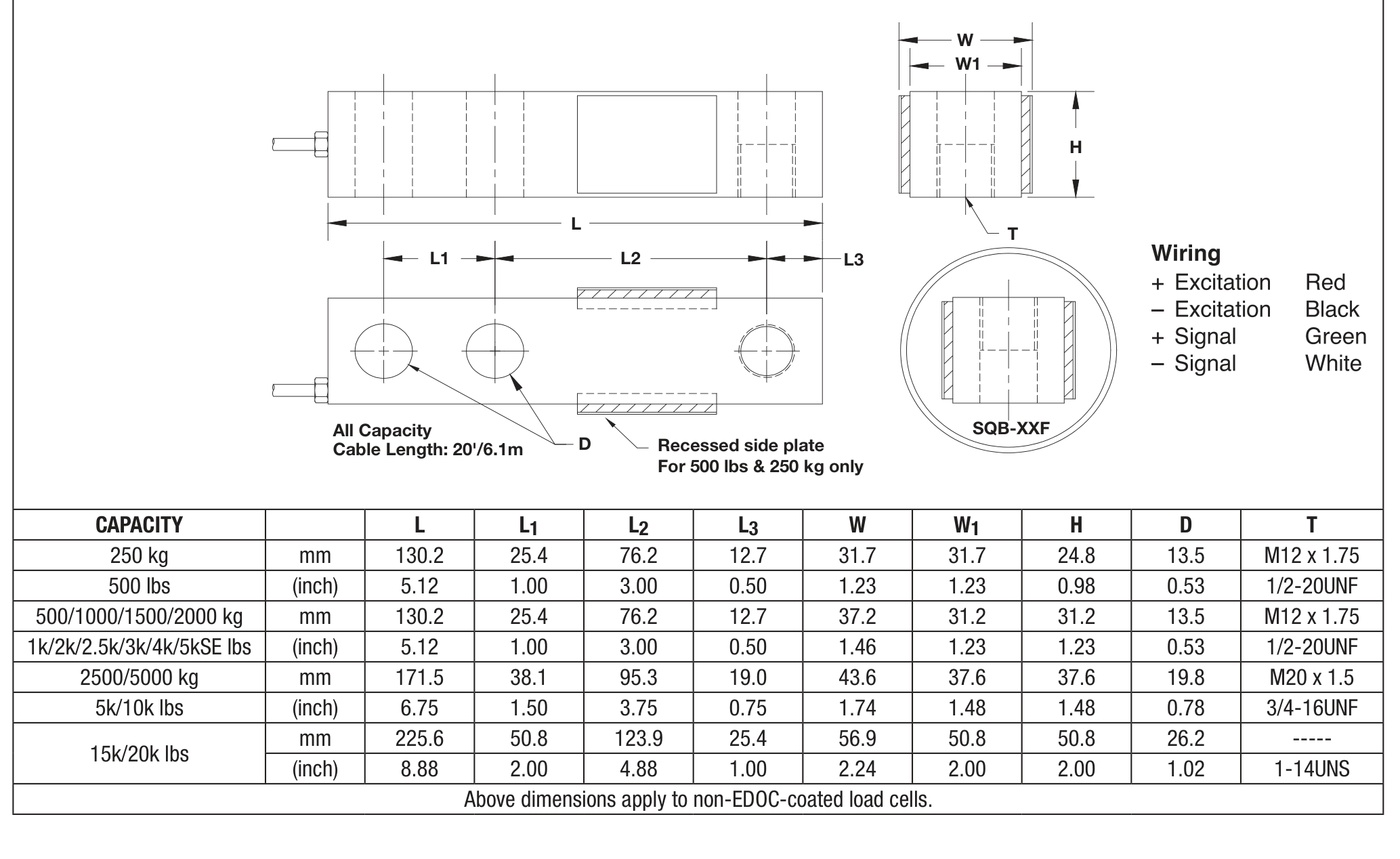

MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP67. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
RETROFITInterchangeable note
Artech 30310
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Nickel-plated alloy steel Protection IP67 Signal Analog Cable length 6m Cable type 4 wires Manufacturer Vishay-Celtron Approval OIML R60 · NTEP Class III Rated output 3.0 mV/V Recommended excitation 10 VDC / VAC RMS Maximum excitation 15 VDC / VAC RMS Input impedance 385 ± 5 Ω Output impedance 350 ± 3 Ω Insulation resistance > 5000 MΩ Non-repeatability ≤ ±0.020 %RO Creep error ≤ ±0.025 %RO / 20 min Safe overload 150 %RC Ultimate overload 300 %RC Operating temperature −20 to +60 °C Interchangeable note Artech 30310 Output sensitivity 3.0 mV/V Non-linearity ≤ ±0.025 %RO Hysteresis ≤ ±0.025 %RO Zero balance ± 1 %RO Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Celtron SQB Shear Beam Load Cell Vishay-SQB Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether Vishay-SQB is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP67 Material Nickel-Plated Alloy Steel Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.025 %RO / 20 min Hysteresis error ≤ ±0.025 %RO Input impedance 385 ± 5 Ω Insulation resistance > 5000 MΩ Internal Battery -- Maximum excitation 15 VDC / VAC RMS Maximum safe overload 150 %RC Max platform size - Non-repeatability ≤ ±0.020 %RO Operating temp range −20 to +60 °C Output impedance 350 ± 3 Ω Rated output 3.0 mV/V Recommended excitation 10 VDC / VAC RMS Recommended torque - Sensitivity 3.0±0.25 mV/V Storage temp range -20°C ... +60°C Ultimate central overload 300 %RC Zero balance ± 1 %RO Manufacturer Vishay-Celtron Cable type 4 wires Cable length 6m Interchangeable Artech 30310, Celtron SQB, HBM A35, Revere 5123, Ricelake RL35023, Sensortronics 65023, Tedea 3411, Totalcomp TSB, Transcell SBS Approval NTEP
