SQB Shear Beam Load Cell · 3000 lb · 00SQB-03E-A5-00FVishay-Celtron 00SQB-03E-A5-00F 3,000 lb Shear Beam Load Cell
SKU 11305
IP67; Nickel plated alloy tool steel; Analog signal; NTEP; 3.0±0.25 mV/V
195.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Vishay-Celtron 00SQB-03E-A5-00F is a 3,000 lb capacity variation of the Vishay-Celtron SQB shear beam load cell family, manufactured in nickel-plated alloy steel with IP67 ingress protection. This model is Accuracy class A5 — NTEP Class III, 5,000 divisions multiple (1,000–10,000 lb range).
3,000 lbRated capacityNickel-plated alloy steelMaterialIP67Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Vishay-Celtron Manufacturer part number 00SQB-03E-A5-00F Capacity 3,000 lb Approval Accuracy class A5 — NTEP Class III, 5,000 divisions multiple (1,000–10,000 lb range) Rated output 3.0 mV/V Material Nickel-plated alloy steel Protection IP67 Signal Analog Rated output tolerance 0.25 ± % of rated output Zero balance ± 1 %RO Compensated temperature range -10 to +40 °C Operating temperature range -20 to +60 °C Safe overload 150 % of R.C. Ultimate overload 300 % of R.C. Recommended excitation 10 VDC or VAC RMS Maximum excitation 15 VDC or VAC RMS Input impedance 385 ± 5 Ω Output impedance 350 ± 3 Ω Insulation resistance > 5000 MΩ 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Vishay-Celtron 00SQB-03E-A5-00F 3,000 lb Shear Beam Load Cell 11305 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

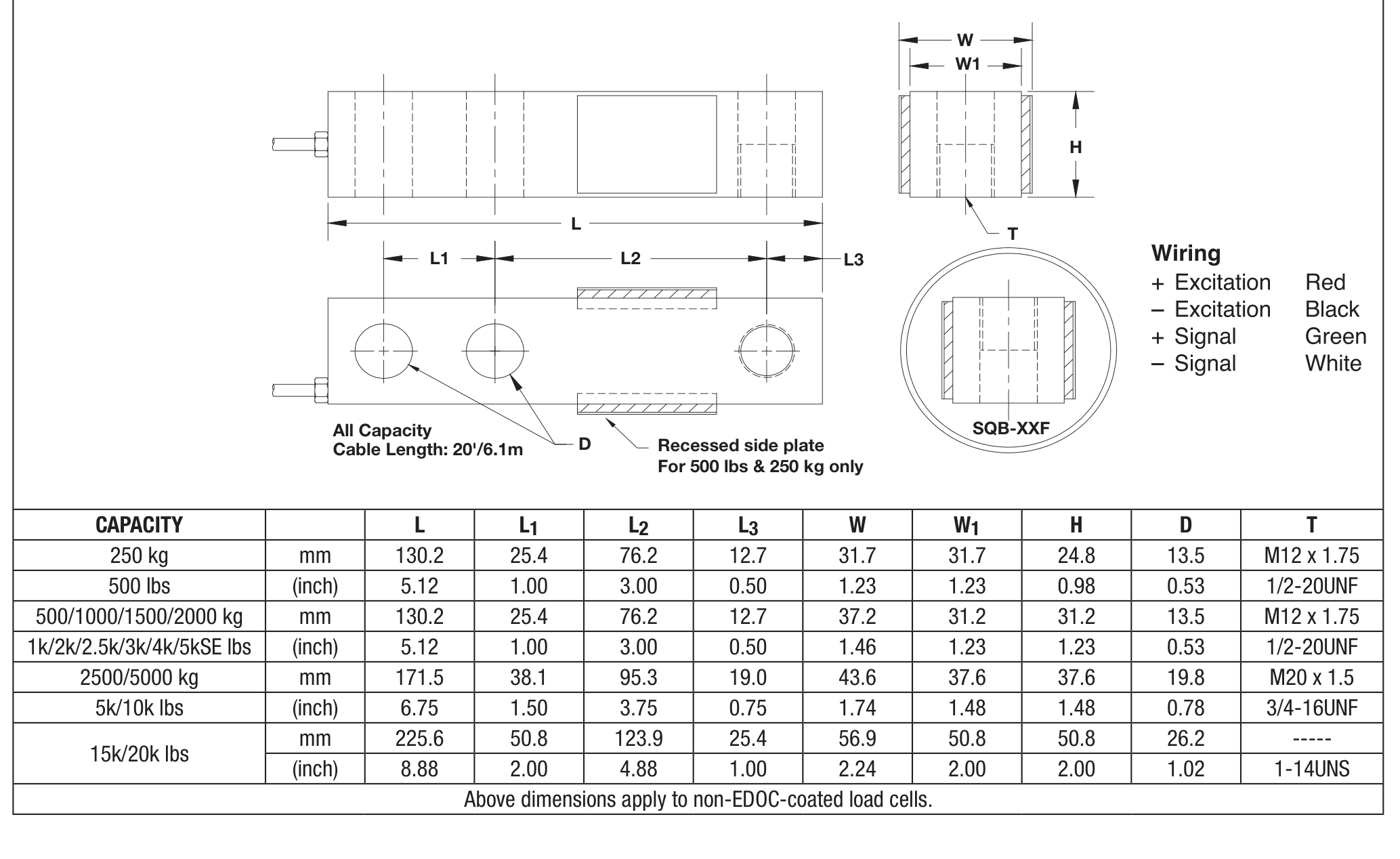

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP67 Material Nickel plated alloy tool steel Combined error ≤ ±0.025 %RO (non-linearity/hysteresis, NTEP III) Creep error 20mins ≤ ±0.025 %RO / 20 min (NTEP III) Internal Battery -- Maximum excitation 15 VDC or VAC RMS Maximum safe overload 150% of R.C. Max platform size - NTEP/OIML NTEP Operating temp range -10°C ... +40°C Rated capacity 3,000 lb Rated output 3.0 mV/V Recommended excitation 10 VDC or VAC RMS Recommended torque - Sensitivity 3.0±0.25 mV/V Storage temp range -20°C ... +60°C Manufacturer Vishay-Celtron Cable type 4 wires Cable length 6m Interchangeable Artech 30310, Celtron SQB, HBM A35, Revere 5123, Ricelake RL35023, Sensortronics 65023, Tedea 3411, Totalcomp TSB, Transcell SBS Manufacturer's Part Number 00SQB-03E-A5-00F Approval NTEP Short name SQB Shear Beam Load Cell · 3000 lb · 00SQB-03E-A5-00F Hero chips IP67; Nickel plated alloy tool steel; Analog signal; NTEP; 3.0±0.25 mV/V
