PW12C Single Point Load Cell · 200 kg · 1-PW12CC3/200KG-1HBM 1-PW12CC3/200KG-1 200 kg Single Point Load Cell
SKU 11125
IP67; Aluminum; Analog signal; OIML R60 C3
1,157.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The HBM 1-PW12CC3/200KG-1 is a 200 kg capacity variation of the HBM 1-PW12CC3 single point load cell family, manufactured in aluminum with IP67 ingress protection.
200 kgRated capacityAluminumMaterialIP67Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer HBM Manufacturer part number 1-PW12CC3/200KG-1 Capacity 200 kg Rated output 2.0 ± 0.2 mV/V Material Aluminum Protection IP67 Signal Analog Covering agent Silicone rubber Cable sheath PVC Input impedance 300 – 500 Ω Output impedance 300 – 500 Ω Insulation resistance > 2 GΩ (100 VDC) Compensated temperature −10 to +40 °C Operating temperature −10 to +50 °C Storage temperature −25 to +70 °C Reference voltage 5 V Supply voltage range 1 to 12 V Limit load 150% FS Lateral load limit / breaking load 300% FS Non-linearity / reversibility (typical) ± 0.0166% Cn Minimum dead load output return ± 0.0166% Cn Off-center load error (OIML R76) ± 0.0233% Cn Temperature effect on zero (TC0) / ratio Y ± 0.0140% Cn/10K, Y=10,000 (100, 200, 500 kg) / ± 0.0093% Cn/10K, Y=15,000 (75, 150, 300, 750 kg) / ± 0.0112% Cn/10K, Y=12,500 (250 kg) / ± 0.0110% Cn/10K, Y=12,700 (635 kg) Mounting thread M8 (property class 10.9, 35 N·m for 75–500 kg; property class 12.9, 42 N·m for 635/750 kg) Weight, approx. 2.4 kg Cable 6-wire shielded cable, 1.5/3/6/12 m options; 3 m standard 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code HBM 1-PW12CC3/200KG-1 200 kg Single Point Load Cell 11125 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

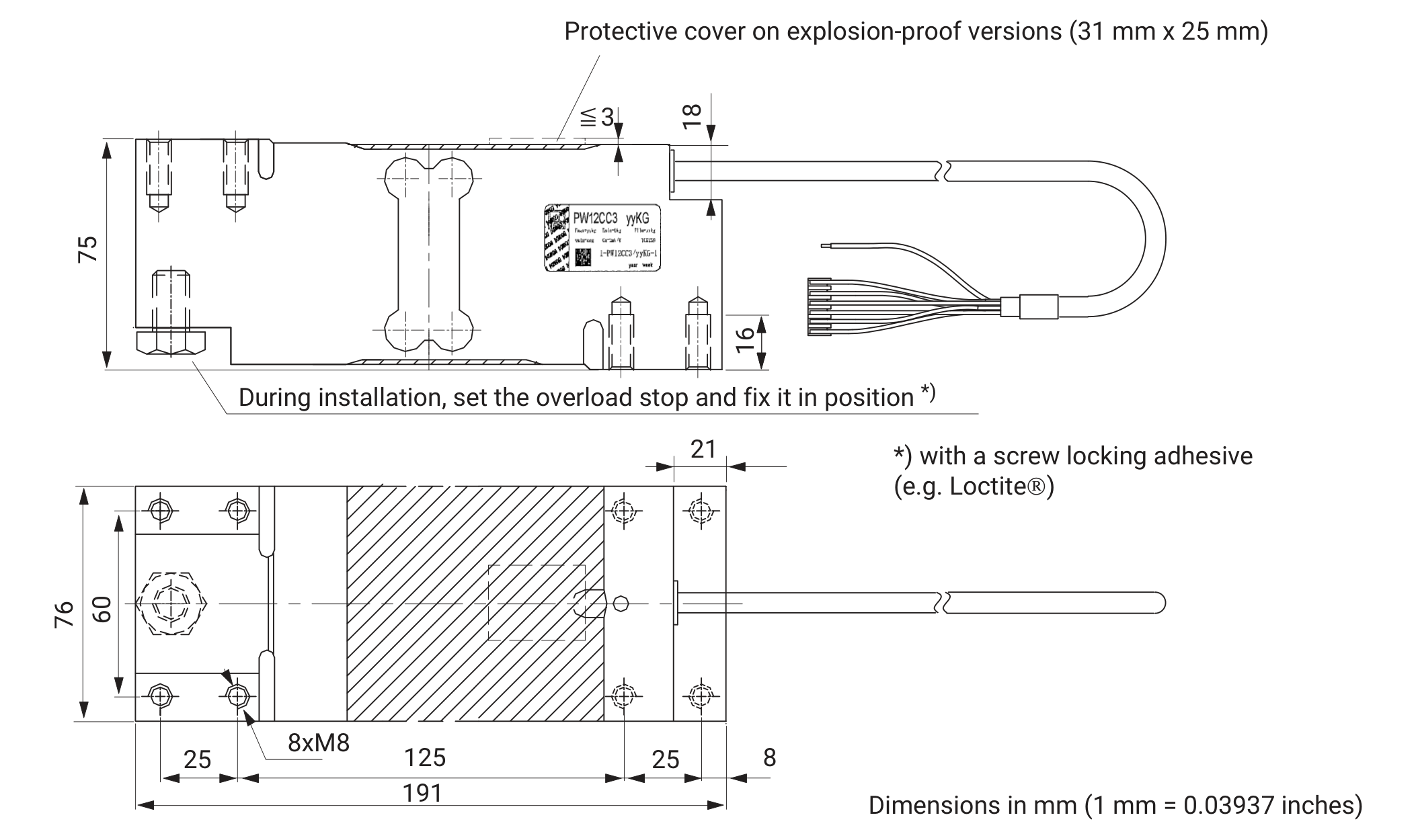

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
