Revere ASC2 Self-Aligning Compression Load Cell
Vishay-Revere · Load cell

ASC2 Compression Load Cell

SKU ASC2
IP69K; Stainless Steel; Analog signal; OIML R60 C3; 2.0mV/V
630.00
$660.00
  • ASC2 - Revere ASC2 Self-Aligning Compression Load Cell
  • Type: Compression load cell
  • Manufacturer: Revere (Vishay Precision Group)
  • Capacity range: 30 t – 40 t currently listed (series covers 30–50 t)
  • Material: Stainless steel, welded seal
  • Protection: IP66/IP68 (100 hr at 1 m)/IP69K
  • Signal: Analog
  • Approval: OIML R60 C3
  • Available in 2 capacities, from 30 t to 40 t. See the table below for each SKU and part number.

Datasheet

* Required

OR
  • Description
  • Additional Information
  • 01 / 02Compression Load Cell

    Revere ASC2 compression load cell family.

    The Revere ASC2 is a compression load cell family. This page describes the family; use the table below to select the SKU your application requires.

    30,000 t – 40,000 t
    T-line capacity range
    Stainless steel, welded seal
    Material
    02 / 02Technical data

    Series-wide catalog attributes.

    Values that differ per SKU are listed in the table below and on each SKU's own page.

    MaterialStainless steel, welded seal
    ProtectionIP66/IP68 (100 hr at 1 m)/IP69K
    SignalAnalog
    Input impedance1160 ± 60 Ω
    Output impedance1011.5 ± 11.5 Ω
    Insulation resistance> 2000 MΩ
    Recommended excitation10 VDC or VAC RMS
    Maximum excitation15 VDC or VAC RMS
    Compensated temperature−10 to +40 °C
    Operating temperature−30 to +70 °C
    Storage temperature−40 to +90 °C
    Safe overload150 %R.C.
    Ultimate overload300 %R.C.
    Cable length15 m (49 ft)
    Rated output2.0 mV/V
    CAPACITY TABLE

    Available capacities.

    CapacityManufacturer part numberSKUApprovalPrice
    30 t0ASC2-030T-31-00XOIML R60 C3$660.00
    40 t0ASC2-040T-31-01XNTEP, OIML$660.00
    ——11281NTEP, OIML$900.00
    ——11282NTEP, OIML$700.00
    DIMENSIONS

    Outline dimensions.

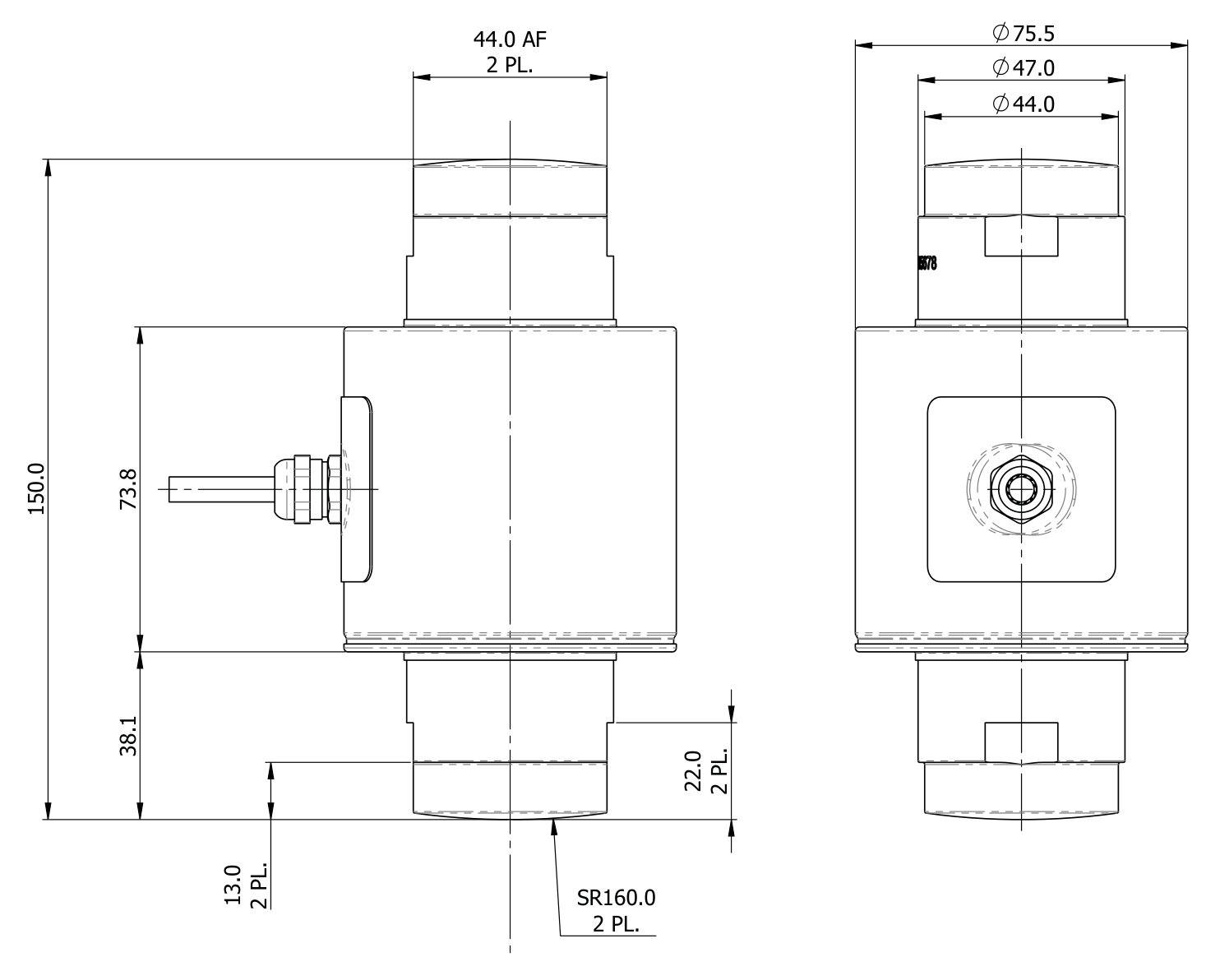

    Revere ASC2 Self-Aligning Compression Load Cell dimensions drawing
    Source: manufacturer datasheet
