Tedea-Huntleigh 01260-150K-D5-01X 150 kg Single Point Load Cell
SKU 10244
IP66; Aluminum; Analog signal; NTEP; 2.0 mV/V
650.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Tedea-Huntleigh 01260-150K-D5-01X is a 150 kg capacity variation of the Tedea-Huntleigh 1260 single-point load cell family, manufactured in plated (anodized) aluminum with IP66 ingress protection. This model is Accuracy class D5 — NTEP, 5,000 divisions single.
150 kgRated capacityPlated (anodized) aluminumMaterialIP66Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Tedea-Huntleigh Manufacturer part number 01260-150K-D5-01X Capacity 150 kg Approval Accuracy class D5 — NTEP, 5,000 divisions single Rated output 2.0 mV/V Material Plated (anodized) aluminum Protection IP66 Signal Analog Cable length 3 m Cable type 6-wire, braided, polyurethane, dual floating screen Rated output tolerance 0.2 ± mV/V Zero balance 0.2 ± mV/V Compensated temperature range -10 to +40 °C Safe temperature range -20 to +70 °C Maximum safe central overload 150 % of R.C. Ultimate central overload 300 % of R.C. Recommended excitation 10 VDC or VAC RMS Maximum excitation 15 VDC or VAC RMS Input impedance 415 ± 15 Ω Output impedance 350 ± 3 Ω Insulation resistance > 2000 MΩ Platform size (max) 600 x 600 mm 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Tedea-Huntleigh 01260-150K-D5-01X 150 kg Single Point Load Cell 10244 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

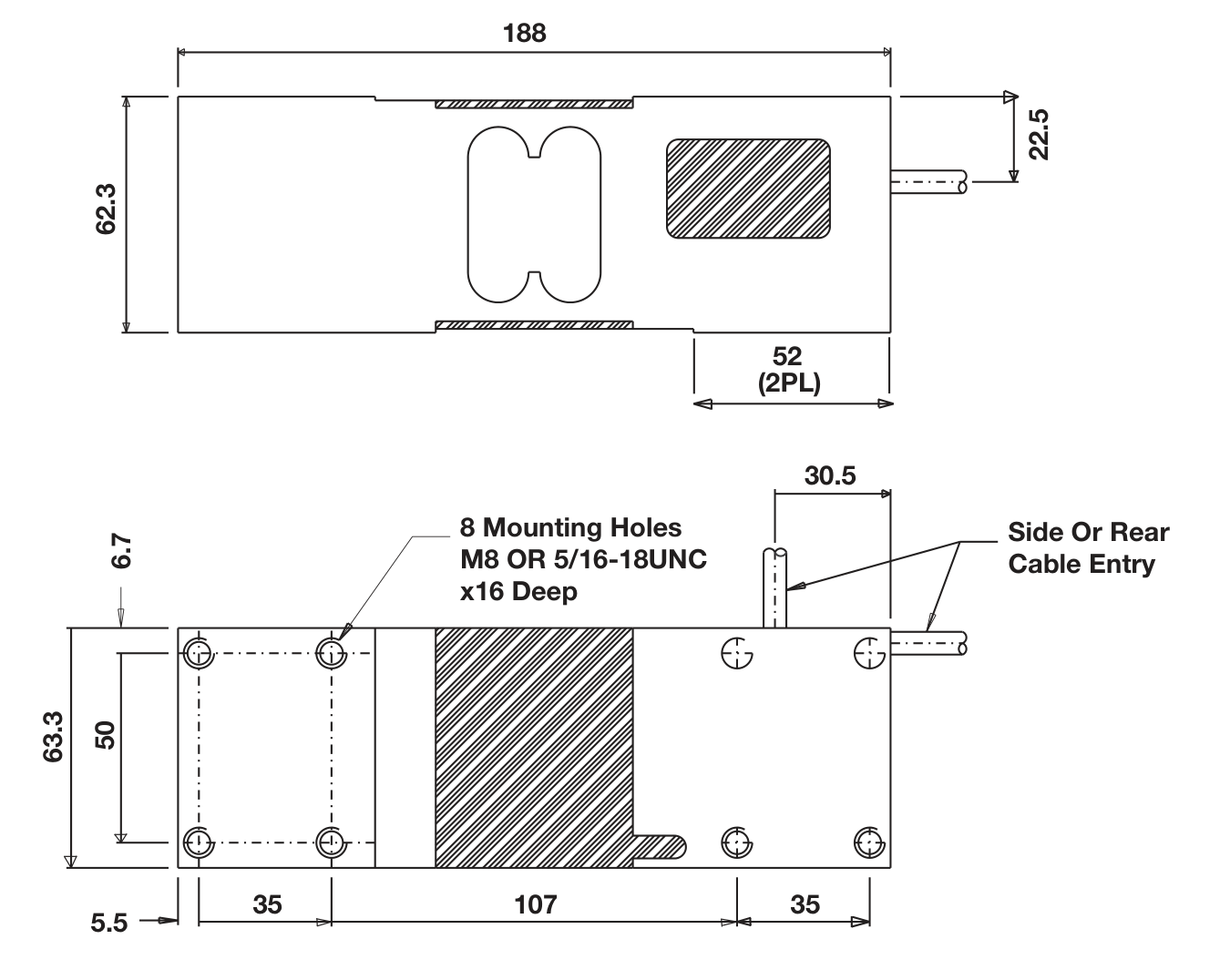

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP66 Material Aluminum Combined error ≤ ±0.0350 %RO (D5) Creep error 20mins ≤ ±0.0330 % / 30 min (D5) Internal Battery -- Maximum excitation 15 VDC or VAC RMS Maximum safe overload - Max platform size - NTEP/OIML NTEP Operating temp range -20 to +70 C Rated capacity 150 kg Rated output 2.0 mV/V Recommended excitation 10 VDC or VAC RMS Recommended torque 16 Nm Sensitivity 2.0 mV/V Storage temp range - Manufacturer Vishay-Tedea Cable type Polyurethane jacket Cable length 10 ft/3 m Interchangeable HBM PW16, Rice Lake RL1260, Rice Lake RLPWM16, Coti CG-50-1, Tedea 1260S, Toledo MT1260 Manufacturer's Part Number 01260-150K-D5-01X Approval NTEP Hero chips IP66; Aluminum; Analog signal; NTEP; 2.0 mV/V
