Tedea-Huntleigh 620 S-Type Load Cell
SKU Vishay-620
IP68; Stainless Steel; Analog signal; OIML R60 C3; 2.0±0.0035 mV/V
650.00
- Description
- Additional Information
- 01 / 02S-Type Tension/Compression Load Cell
Tedea-Huntleigh 620 s-type tension/compression load cell family.
The Tedea-Huntleigh 620 is an S-type tension/compression load cell family. This page describes the family; use the table below to select the SKU your application requires.
500 kg – 5,000 kgKg-line capacity rangeStainless steelMaterial02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Material Stainless steel Protection IP68 Signal Analog Cable length 5 m Cable type 6-wire, shielded, polyurethane jacket cable Rated output tolerance 0.002 ± mV/V Compensated temperature range -10 to +40 °C Safe temperature range -30 to +90 °C Maximum safe static overload 150 % of R.C. Recommended excitation 10 VDC or VAC RMS Maximum excitation 15 VDC or VAC RMS Input impedance 400 ± 20 Ω Output impedance 350 ± 3 Ω Insulation resistance > 2000 MΩ Rated output 2.0 mV/V CAPACITY TABLEAvailable capacities.

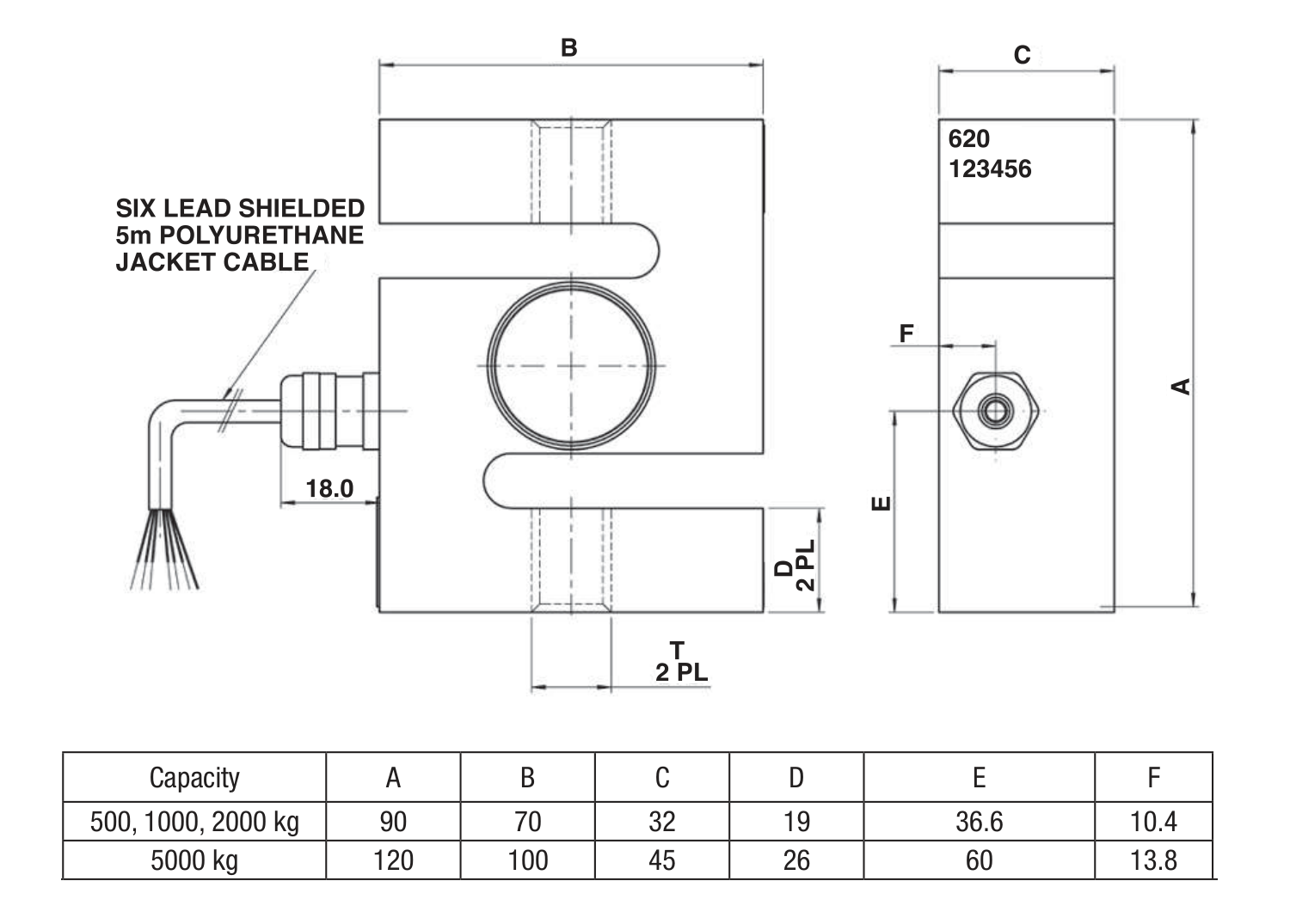

Capacity Manufacturer part number SKU Approval Price 500 kg 00620-500K-A5-01X 10001 OIML R60 C3 $650.00 1,000 kg 00620-001T-A5-01X 10002 OIML R60 C3 $1,544.00 2,000 kg 00620-002T-C3-00X 10003 OIML R60 C3 $1,520.00 5,000 kg 00620-005T-C3-00X 10004 OIML R60 C3 $510.00 DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which 620 SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.0200 %RO (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0170 % / 30 min (C3) Input impedance 400 ± 20 Ω Insulation resistance > 2000 MΩ Internal Battery -- Maximum excitation 15 VDC / VAC RMS Maximum safe overload 150 %RC Max platform size - Operating temp range −30 to +90 °C Output impedance 350 ± 3 Ω Rated output 2.0 mV/V Recommended excitation 10 VDC / VAC RMS Recommended torque - Sensitivity 2.0±0.0035 mV/V Storage temp range -10°C ... +40°C Zero balance ± 0.04 mV/V Manufacturer Vishay-Tedea Cable type 6 lead shielded polyurethane jacket cable Cable length 5m Approval OIML R60 C3 Hero chips IP68; Stainless Steel; Analog signal; OIML R60 C3; 2.0±0.0035 mV/V
