B9F-10K lb N10 Double-Ended Shear Beam Load CellZemic B9F 10000 lb Double-Ended Shear Beam Load Cell (B9F-N10-10K-9B)
- Description
- Additional Information
- 01 / 03Double-Ended Shear Beam Load Cell
Double-Ended Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Zemic B9F-N10-10K-9B is the 10000 lb capacity Zemic B9F, a dual shear beam load cell, potted by adhesive inside, oil proof, waterproof and resistant to corrosive gas and media, for electronic truck scales, hopper scales, track scales and other electronic weighing devices, manufactured in stainless steel with IP67 ingress protection. This model is NTEP Class III L 10000.
10000 lbRated capacityStainless SteelMaterialIP67Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number B9F-N10-10K-9B Capacity 10000 lb Approval NTEP Class III L 10000 Rated output 3.0 ± 0.003 mV/V Dimensions 203.2 × 36.58 × 58.8 mm Material Stainless steel, potted by adhesive inside, dual shear beam Protection IP67 Signal Analog Input resistance 700 ± 7 Ω Output resistance 703 ± 4 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Cable 4-conductor shielded, 9 m, 5 mm diameter, 1/2-14NPT cable fitting Wiring Input (+) red, Input (−) black, Output (+) green, Output (−) white Accuracy class N10 (NTEP Class III L, 10000 divisions) Maximum verification intervals (nmax) 10000 Mounting Double-ended: 2 × Ø25.4 mm end journals (Ø20.32 mm at the groove); R9.52 mm top center notch 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic B9F 10000 lb Double-Ended Shear Beam Load Cell (B9F-N10-10K-9B) 24224 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther B9F capacities.

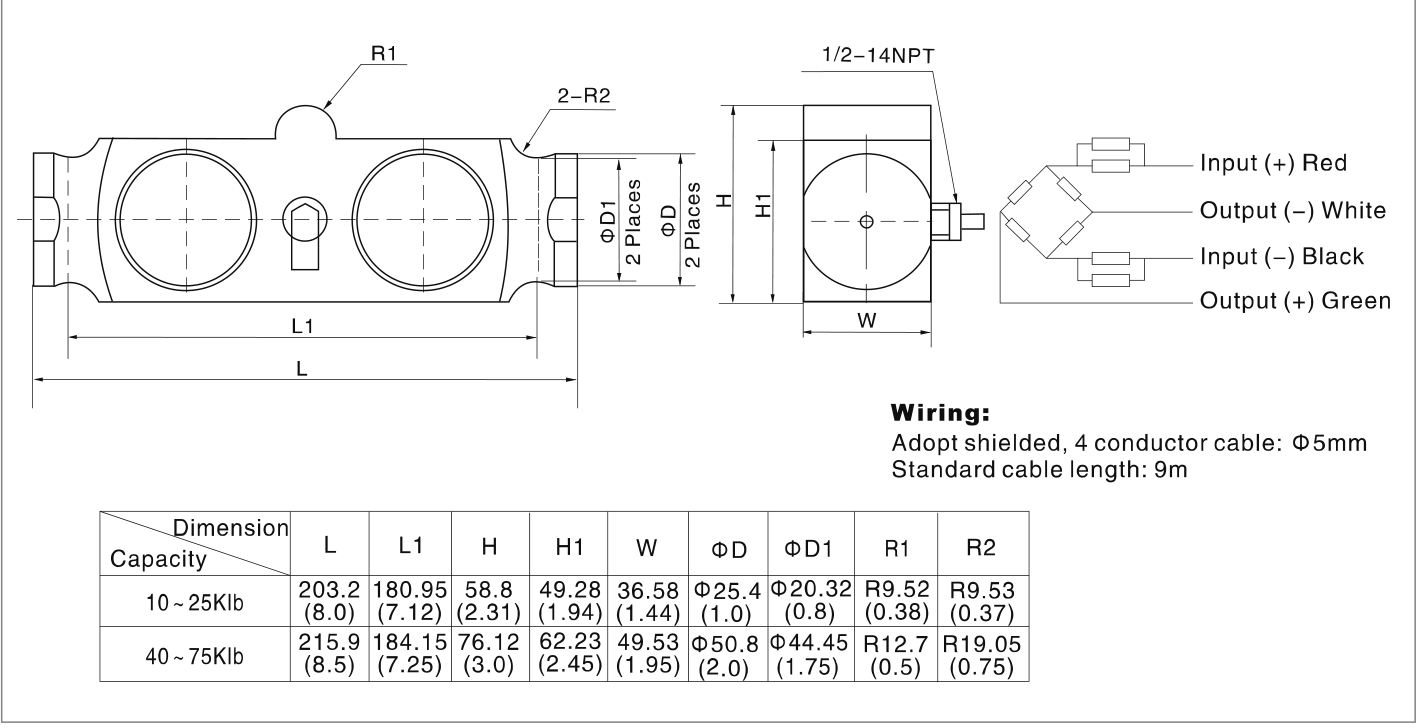

Capacity Manufacturer part number SKU Approval Price 15000 lb B9F-N10-15K-9B 24225 NTEP Class III L 10000 $886.00 20000 lb B9F-N10-20K-9B 24226 NTEP Class III L 10000 $886.00 25000 lb B9F-N10-25K-9B 24227 NTEP Class III L 10000 $886.00 40000 lb B9F-N10-40K-9B 24229 NTEP Class III L 10000 $1,012.00 50000 lb B9F-N10-50K-9B 24230 NTEP Class III L 10000 $1,012.00 60000 lb B9F-N10-60K-9B 24231 NTEP Class III L 10000 $1,012.00 75000 lb B9F-N10-75K-9B 24232 NTEP Class III L 10000 $1,214.00 DIMENSIONSOutline dimensions.
Source: Zemic B9F datasheet Signal Analog Protection class IP67 Material Stainless Steel Compensated temp range −10 to +40 °C Input impedance 700 ± 7 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 10000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 703 ± 4 Ω Rated capacity 10000 lb Rated output 3.0 ± 0.003 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.0 %FS Manufacturer Zemic Accuracy N10 Number of Wires 4 wires Manufacturer's Part Number B9F-N10-10K-9B Approval NTEP Short name B9F-10K lb N10 Double-Ended Shear Beam Load Cell Hero chips IP67; Stainless Steel; Analog signal; NTEP Class III L 10000; 4 wires
