BM14A-60t C3 Compression Load CellZemic BM14A 60 t Compression Load Cell (BM14A-C3-60t-20B-SC)
- Description
- Additional Information
- 01 / 03Compression Load Cell
Compression Load Cell for confirmed-fit replacement and scale builds.
The Zemic BM14A-C3-60t-20B-SC is the 60 t capacity Zemic BM14A, a stainless steel four-column compression load cell with good self-aligning ability, for electronic platform scales, automobile testing facilities, hopper scales and other electronic weighing devices, manufactured in stainless steel with IP68 ingress protection. This model is OIML R60 C3.
60 tRated capacityStainless SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number BM14A-C3-60t-20B-SC Capacity 60 t Approval OIML R60 C3 Rated output 2.0 ± 0.002 mV/V Dimensions Ø105 × 127 mm Material Stainless steel, hermetically welded Protection IP68 Signal Analog Input resistance 450 ± 4.5 Ω Output resistance 480 ± 4.8 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +70 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Wiring Input (+) green, Output (−) red, Input (−) black, Output (+) white Certificates PTB approval D09-07.01 Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.016 %FS Temperature effect on sensitivity ≤ ±0.011 %FS/10 °C Temperature effect on zero ≤ ±0.015 %FS/10 °C Cable 4-conductor shielded, 20 m, 7.7 mm diameter Mounting M20 × 2.5 threaded hole 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic BM14A 60 t Compression Load Cell (BM14A-C3-60t-20B-SC) 24259 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther BM14A capacities.

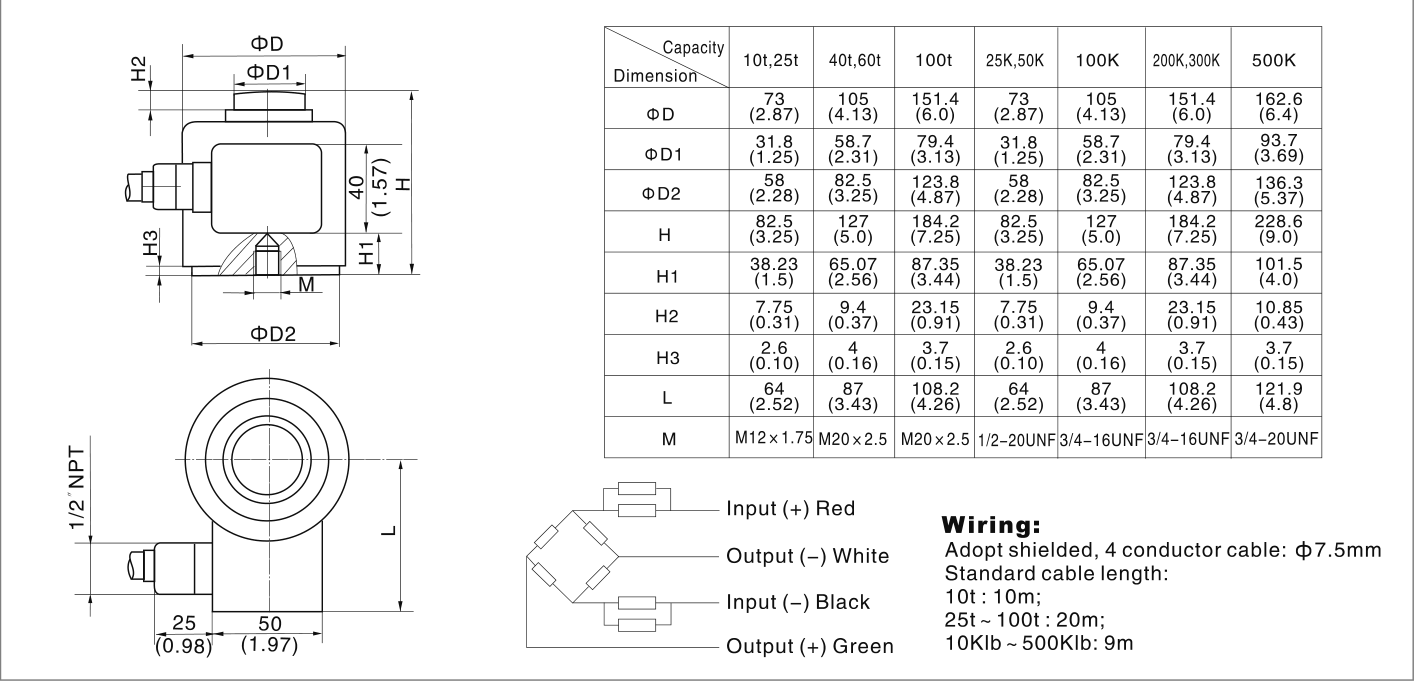

Capacity Manufacturer part number SKU Approval Price 25 t BM14A-C3-25t-20B-SC 24257 OIML R60 C3 $899.00 40 t BM14A-C3-40t-20B-SC 24258 OIML R60 C3 $1,067.00 25000 lb BM14A-N10-25K-9YB 24260 — $899.00 50000 lb BM14A-N10-50K-9YB 24261 — $899.00 DIMENSIONSOutline dimensions.

Source: Zemic BM14A datasheet Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Input impedance 450 ± 4.5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +70 °C Output impedance 480 ± 4.8 Ω Rated capacity 60 t Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.0 %FS Manufacturer Zemic Accuracy C3 Number of Wires 4 wires Manufacturer's Part Number BM14A-C3-60t-20B-SC Approval OIML R60 C3 Short name BM14A-60t C3 Compression Load Cell Hero chips IP68; Stainless Steel; Analog signal; OIML R60 C3; 4 wires
