BM14A-50K lb N10 Compression Load CellZemic BM14A 50000 lb Compression Load Cell (BM14A-N10-50K-9YB)
- Description
- Additional Information
- 01 / 03Compression Load Cell
Compression Load Cell for confirmed-fit replacement and scale builds.
The Zemic BM14A-N10-50K-9YB is the 50000 lb capacity Zemic BM14A, a stainless steel four-column compression load cell with good self-aligning ability, for electronic platform scales, automobile testing facilities, hopper scales and other electronic weighing devices, manufactured in stainless steel with IP68 ingress protection. This model is NTEP Class III L 10000.
50000 lbRated capacityStainless SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number BM14A-N10-50K-9YB Capacity 50000 lb Approval NTEP Class III L 10000 Rated output 2.0 ± 0.002 mV/V Dimensions Ø73 × 82.5 mm Material Stainless steel, hermetically welded Protection IP68 Signal Analog Input resistance 450 ± 4.5 Ω Output resistance 480 ± 4.8 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Wiring Input (+) red, Output (−) white, Input (−) black, Output (+) green Certificates PTB approval D09-07.01 Accuracy class N10 (NTEP Class III L, 10000 divisions) Maximum verification intervals (nmax) 10000 Cable 4-conductor shielded, 9 m, 7.5 mm diameter Mounting 1/2-20UNF threaded hole 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic BM14A 50000 lb Compression Load Cell (BM14A-N10-50K-9YB) 24261 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther BM14A capacities.

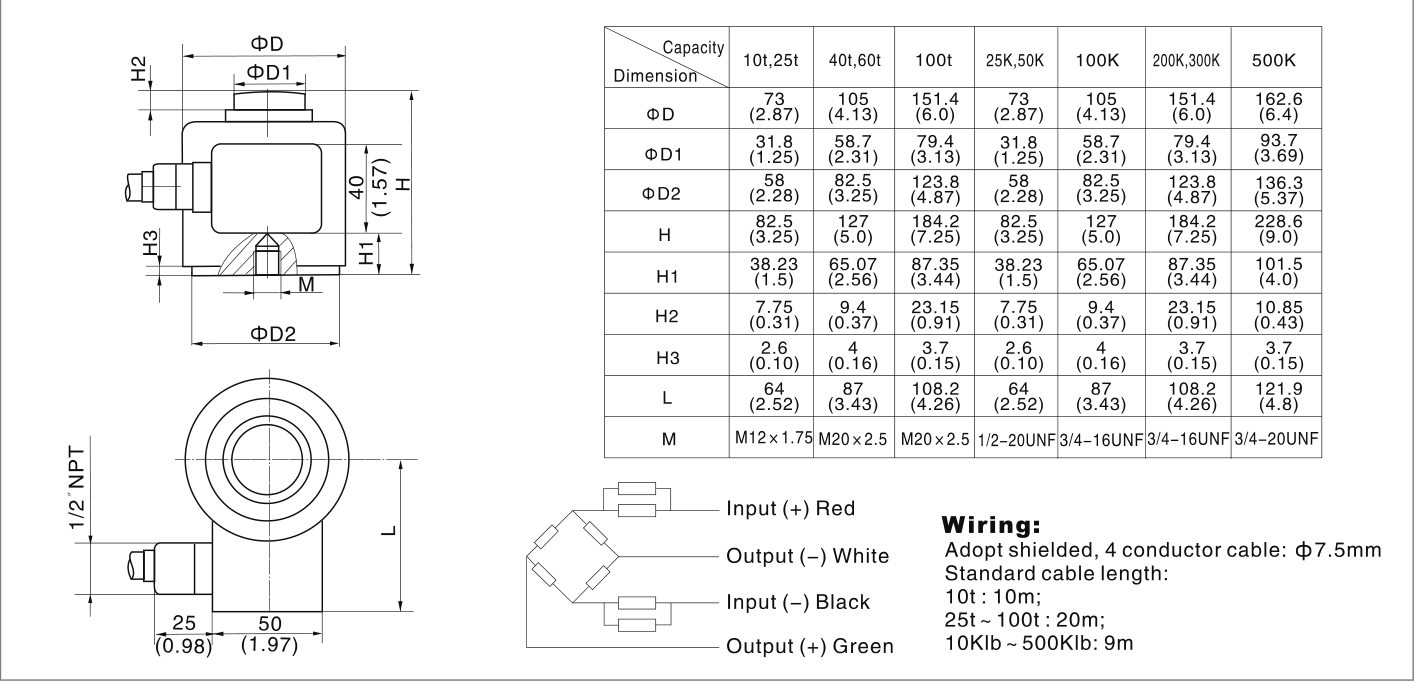

Capacity Manufacturer part number SKU Approval Price 25 t BM14A-C3-25t-20B-SC 24257 OIML R60 C3 $899.00 40 t BM14A-C3-40t-20B-SC 24258 OIML R60 C3 $1,067.00 60 t BM14A-C3-60t-20B-SC 24259 OIML R60 C3 $1,067.00 25000 lb BM14A-N10-25K-9YB 24260 NTEP Class III L 10000 $899.00 DIMENSIONSOutline dimensions.
Source: Zemic BM14A datasheet Signal Analog Protection class IP68 Material Stainless Steel Compensated temp range −10 to +40 °C Input impedance 450 ± 4.5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 10000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 480 ± 4.8 Ω Rated capacity 50000 lb Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.0 %FS Manufacturer Zemic Accuracy N10 Number of Wires 4 wires Manufacturer's Part Number BM14A-N10-50K-9YB Approval NTEP Short name BM14A-50K lb N10 Compression Load Cell Hero chips IP68; Stainless Steel; Analog signal; NTEP Class III L 10000; 4 wires
