BM24R-60kg C3 Ring Torsion Load CellZemic BM24R 60 kg Ring Torsion Load Cell (BM24R-C3-60kg-3G)
SKU 24271
IP68; Stainless Steel; Analog signal; OIML R60 C3; 4 wires
2,564.00
- Description
- Additional Information
- 01 / 03Ring Torsion Load Cell
Ring Torsion Load Cell for confirmed-fit replacement and scale builds.
The Zemic BM24R-C3-60kg-3G is the 60 kg capacity Zemic BM24R, a hermetically sealed, stainless steel low-profile ring torsion load cell for hopper, platform and pallet scales, manufactured in stainless steel with IP68 ingress protection. This model is OIML R60 C3.
60 kgRated capacityStainless SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number BM24R-C3-60kg-3G Capacity 60 kg Approval OIML R60 C3 Rated output 1.0 ± 0.01 mV/V Dimensions Ø63 × 22 mm Material Stainless steel, hermetically sealed Protection IP68 Signal Analog Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ±1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +70 °C Storage temperature −40 to +70 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Recommended bolt torque M5: 3.5 N·m; M6: 10 N·m Wiring Input (+) pink, Output (−) white, Input (−) gray, Output (+) brown Certificates OIML test certificate TC7865 Revision 1; OIML R60 certificate of conformity R60/2000-NL1-11.21; NTEP Certificate of Conformance 11-103A1 (BM24R series, Class III, nmax 5000) Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.0230 %FS Creep (30 min) ≤ ±0.0245 %FS Temperature effect on sensitivity ≤ ±0.0117 %FS/10 °C Temperature effect on zero ≤ ±0.0150 %FS/10 °C Input resistance 1260 ± 100 Ω Output resistance 1020 ± 0.5 Ω Cable Shielded 4-conductor AWG 24, 3 m, 6.2 ± 0.1 mm diameter, polyurethane jacket; shield connected to the load cell body Mounting 3 × M5-6H threaded holes on 120°, 8 mm deep 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic BM24R 60 kg Ring Torsion Load Cell (BM24R-C3-60kg-3G) 24271 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther BM24R capacities.

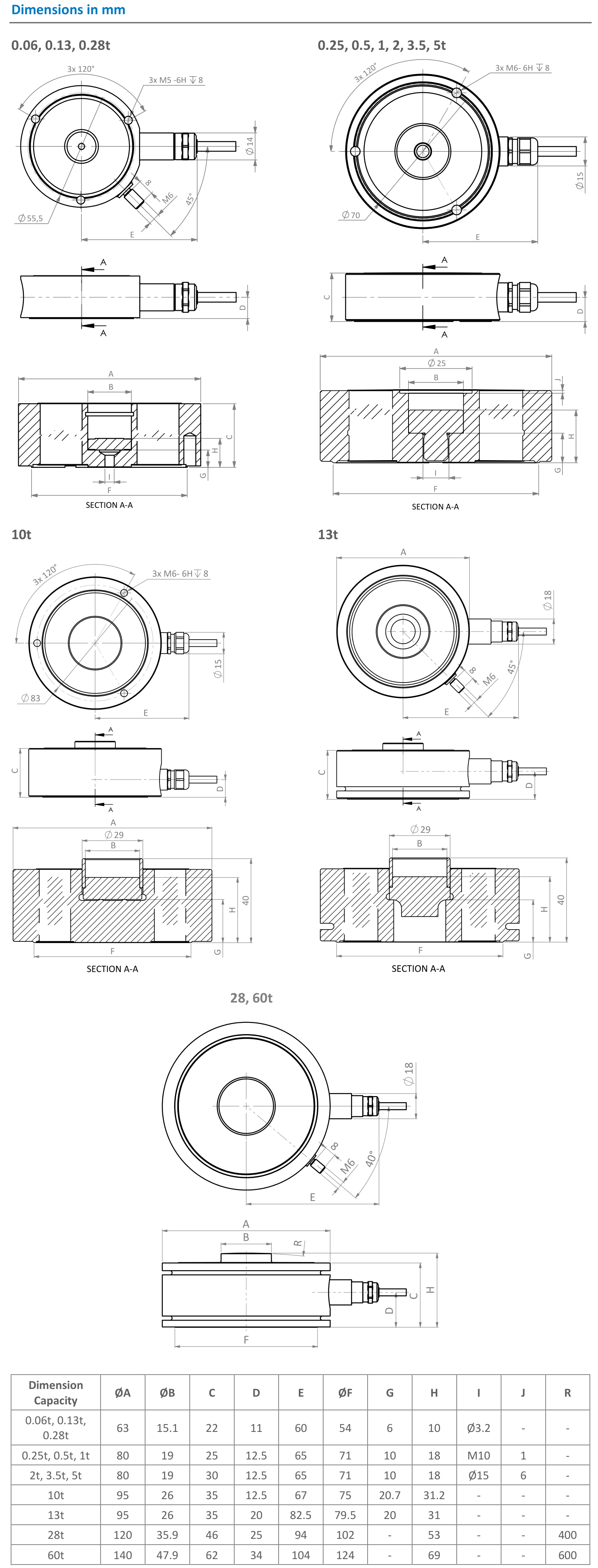

Capacity Manufacturer part number SKU Approval Price 250 kg BM24R-C3-250kg-3G 24269 OIML R60 C3 $2,471.00 500 kg BM24R-C3-500kg-3G 24270 OIML R60 C3 $2,471.00 130 kg BM24R-C3-130kg-3G 24272 OIML R60 C3 $2,564.00 280 kg BM24R-C3-280kg-3G 24273 OIML R60 C3 $2,564.00 1 t BM24R-C3-1t-3G 24274 OIML R60 C3 $2,471.00 2 t BM24R-C3-2t-6G 24275 OIML R60 C3 $2,471.00 3.5 t BM24R-C3-3.5t-6G 24276 OIML R60 C3 $2,671.00 5 t BM24R-C3-5t-6G 24277 OIML R60 C3 $2,671.00 10 t BM24R-C3-10t-15G 24278 OIML R60 C3 $3,206.00 13 t BM24R-C3-13t-15G 24279 OIML R60 C3 $3,339.00 28 t BM24R-C3-28t-15G 24280 OIML R60 C3 $4,221.00 60 t BM24R-C3-60t-15G 24281 OIML R60 C3 $5,276.00 DIMENSIONSOutline dimensions.
Source: Zemic BM24R datasheet Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.0230 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0245 %FS / 30 min (C3) Input impedance 1260 ± 100 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +70 °C Output impedance 1020 ± 0.5 Ω Rated capacity 60 kg Rated output 1.0 ± 0.01 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.0 %FS Manufacturer Zemic Accuracy C3 Number of Wires 4 wires Manufacturer's Part Number BM24R-C3-60kg-3G Approval OIML R60 C3 Short name BM24R-60kg C3 Ring Torsion Load Cell Hero chips IP68; Stainless Steel; Analog signal; OIML R60 C3; 4 wires
