BM8G-500kg C3 Shear Beam Load CellZemic BM8G 500 kg Shear Beam Load Cell (BM8G-C3-500Kg-5B)
SKU 24171
IP68; Stainless Steel; Analog signal; OIML R60 C3; 4 wires
472.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Zemic BM8G-C3-500Kg-5B is the 500 kg capacity Zemic BM8G, a hermetically sealed stainless steel single shear beam load cell with a robust, wide mounting surface, for weighing in harsh environments, manufactured in stainless steel with IP68 ingress protection. This model is OIML R60 C3.
500 kgRated capacityStainless SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number BM8G-C3-500Kg-5B Capacity 500 kg Approval OIML R60 C3 Rated output 2.0 ± 0.004 mV/V Dimensions 203.2 × 36.48 × 47.63 mm Material Stainless steel, hermetically sealed Protection IP68 Signal Analog Input resistance 350 ± 3.5 Ω Output resistance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ±2.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Storage temperature −40 to +70 °C Recommended excitation 5 to 15 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Recommended bolt torque M12: 100 N·m; M20: 375 N·m; M24: 650 N·m Cable Shielded 4-conductor AWG 22, 5 m, Ø5.0 mm, black silicone rubber jacket; shield not connected to the load cell body Wiring Input (+) red, Output (−) white, Input (−) black, Output (+) green Certificates OIML R60/2000-DE1-10.07 (certificate of conformity); test certificate D09-07.22 Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.023 %FS Creep (30 min) ≤ ±0.016 %FS Temperature effect on sensitivity ≤ ±0.018 %FS/10 °C Temperature effect on zero ≤ ±0.014 %FS/10 °C Maximum deflection ~0.2 mm Load cell weight ~2.3 kg Mounting 2 × Ø13.9 mm through holes; loading hole Ø17.48 mm, Ø30.3 mm counterbore 11.9 mm deep 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic BM8G 500 kg Shear Beam Load Cell (BM8G-C3-500Kg-5B) 24171 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther BM8G capacities.

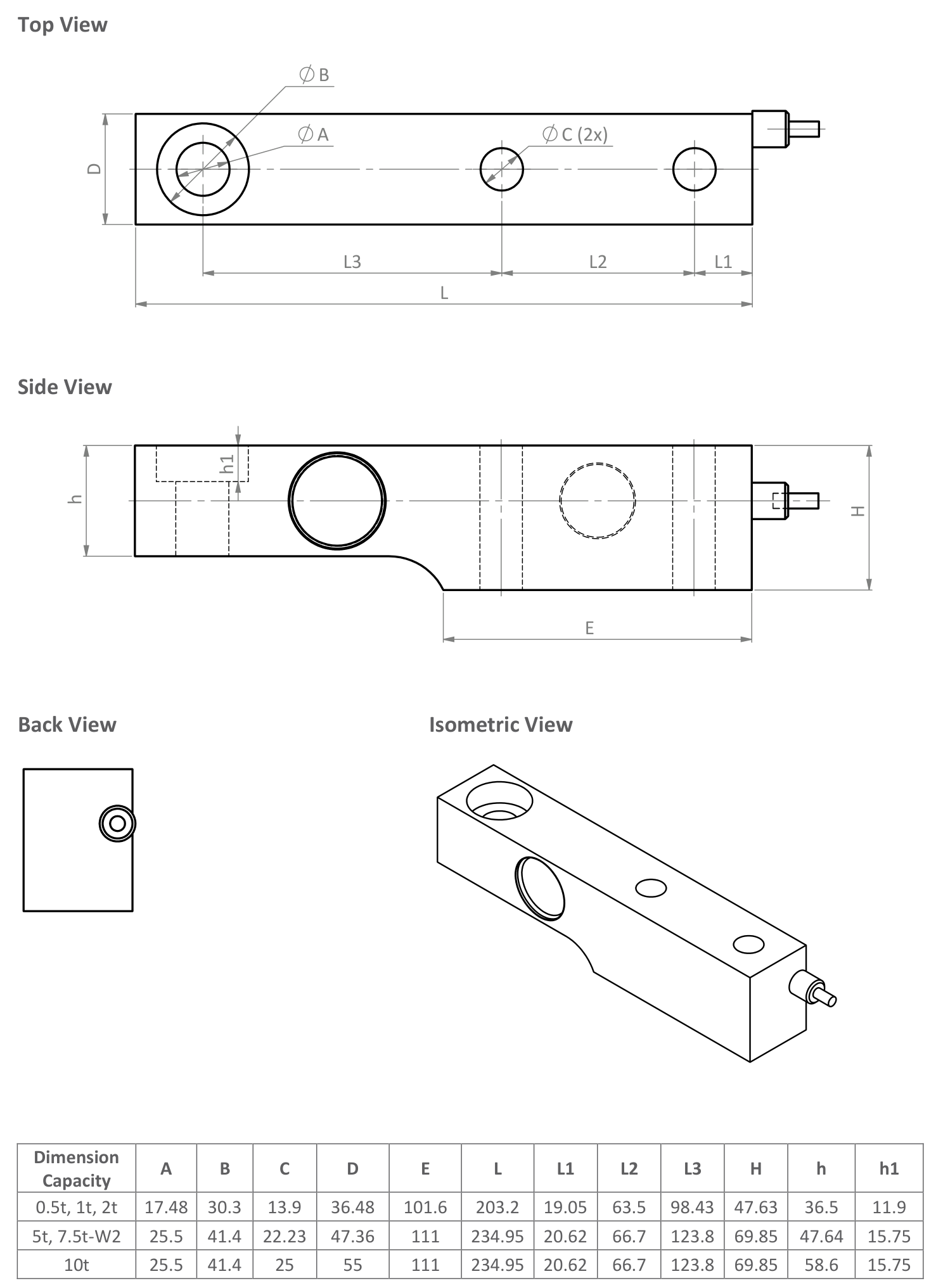

Capacity Manufacturer part number SKU Approval Price 1 t BM8G-C3-1.0t-5B 24172 OIML R60 C3 $472.00 2 t BM8G-C3-2.0t-5B 24173 OIML R60 C3 $472.00 5 t BM8G-C3-5.0t-5B 24174 OIML R60 C3 $824.00 DIMENSIONSOutline dimensions.
Source: Zemic BM8G datasheet Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.023 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Input impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 350 ± 3.5 Ω Rated capacity 500 kg Rated output 2.0 ± 0.004 mV/V Recommended excitation 5 ~ 15 VDC Ultimate central overload 300 %FS Zero balance 2.0 %FS Manufacturer Zemic Accuracy C3 Number of Wires 4 wires Manufacturer's Part Number BM8G-C3-500Kg-5B Approval OIML R60 C3 Short name BM8G-500kg C3 Shear Beam Load Cell Hero chips IP68; Stainless Steel; Analog signal; OIML R60 C3; 4 wires
