H3G-75 lb N3 S-Type Load CellZemic H3G 75 lb S-Type Load Cell (H3G-N3-75-6YB)
SKU 24157
IP67; Nickel-Plated Alloy Steel; Analog signal; NTEP Class III 3000; 4 wires
141.00
- Description
- Additional Information
- 01 / 03S-Type Load Cell
S-Type Load Cell for confirmed-fit replacement and scale builds.
The Zemic H3G-N3-75-6YB is the 75 lb capacity Zemic H3G, an S-beam load cell for tension and compression applications, suitable for hanging, hopper and other weighing devices, manufactured in nickel-plated alloy steel with IP67 ingress protection. This model is NTEP Class III 3000.
75 lbRated capacityNickel-Plated Alloy SteelMaterialIP67Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number H3G-N3-75-6YB Capacity 75 lb Approval NTEP Class III 3000 Rated output 3.0 ± 0.008 mV/V Dimensions 50.8 × 16.07 × 63.5 mm Material Nickel-plated alloy steel, S-beam Protection IP67 (EN 60529) Signal Analog Input resistance 430 ± 60 Ω Output resistance 351 ± 2 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ±1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Cable 4-conductor shielded polyurethane, AWG 22, 6 m, 5.0 mm diameter, shield not connected to element Wiring Input (+) red, Input (−) black, Output (+) green, Output (−) white Accuracy class N3 (NTEP Class III, 3000 divisions) Maximum verification intervals (nmax) 3000 Mounting 2 × 1/4-28UNF threaded holes 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic H3G 75 lb S-Type Load Cell (H3G-N3-75-6YB) 24157 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther H3G capacities.
Capacity Manufacturer part number SKU Approval Price 50 lb H3G-N3-50-6YB 24156 NTEP Class III 3000 $141.00 DIMENSIONSOutline dimensions.

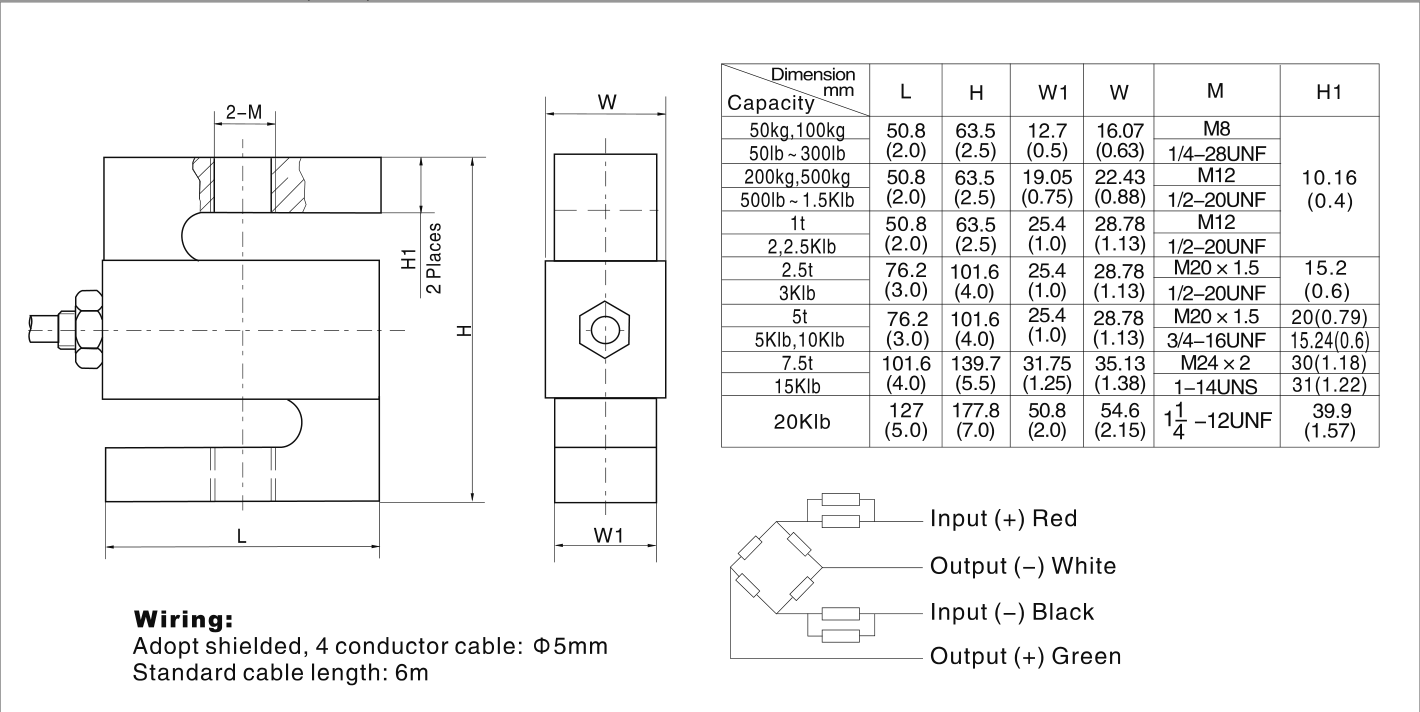

Source: Zemic H3G datasheet Signal Analog Protection class IP67 Material Nickel-Plated Alloy Steel Compensated temp range −10 to +40 °C Input impedance 430 ± 60 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 351 ± 2 Ω Rated capacity 75 lb Rated output 3.0 ± 0.008 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance ≤ ±1.0 %FS Manufacturer Zemic Accuracy N3 Number of Wires 4 wires Manufacturer's Part Number H3G-N3-75-6YB Approval NTEP Short name H3G-75 lb N3 S-Type Load Cell Hero chips IP67; Nickel-Plated Alloy Steel; Analog signal; NTEP Class III 3000; 4 wires
