Zemic · Load cell
H8-25t C3 Shear Beam Load CellZemic H8 25 t Shear Beam Load Cell (H8-C3-25t-12B6)
SKU 24185
IP67; Alloy Steel; Analog signal; OIML R60 C3; 6 wires
515.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.

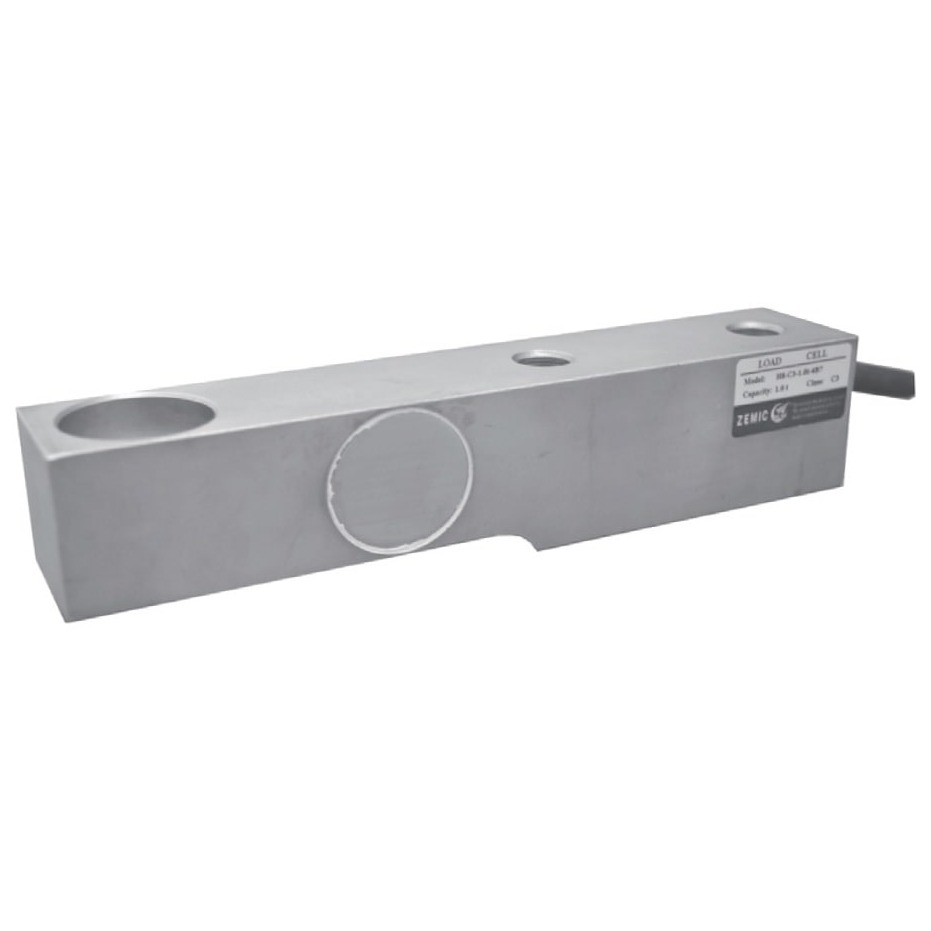

The Zemic H8-C3-25t-12B6 is the 25 t capacity Zemic H8, a low-profile single shear beam load cell, adhesive-sealed against oil, water and corrosion, for electronic truck scales, track scales, hopper scales and other electronic weighing devices, including hazardous areas, manufactured in alloy steel with IP67 ingress protection. This model is OIML R60 C3.
25 tRated capacityAlloy SteelMaterialIP67Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number H8-C3-25t-12B6 Capacity 25 t Approval OIML R60 C3 Rated output 2.0 ± 0.002 mV/V Dimensions 318 × 70 × 143.5 mm Material Alloy steel, adhesive-sealed inside Protection IP67 Signal Analog Input resistance 350 ± 3.5 Ω Output resistance 351 ± 2.0 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Wiring Input (+) red, Sense (+) brown, Output (−) white, Sense (−) black, Input (−) yellow, Output (+) blue Certificates OIML R60/2000-CN1-06.09; PTB approval D09-05.20 Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.016 %FS Temperature effect on sensitivity ≤ ±0.011 %FS/10 °C Temperature effect on zero ≤ ±0.015 %FS/10 °C Cable 6-conductor shielded, Ø6.2 mm, 12 m standard length Mounting 2 × Ø34 mm through holes 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic H8 25 t Shear Beam Load Cell (H8-C3-25t-12B6) 24185 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther H8 capacities.
Capacity Manufacturer part number SKU Approval Price 500 kg H8-C3-500kg-4B6 24176 OIML R60 C3 $303.00 1 t H8-C3-1.0t-4B6 24177 OIML R60 C3 $303.00 2 t H8-C3-2.0t-4B6 24178 OIML R60 C3 $303.00 2.5 t H8-C3-2.5t-4B6 24179 OIML R60 C3 $303.00 3 t H8-C3-3.0t-4B6 24180 OIML R60 C3 $303.00 5 t H8-C3-5.0t-7B6 24181 OIML R60 C3 $331.00 10 t H8-C3-10t-12B6 24182 OIML R60 C3 $427.00 15 t H8-C3-15t-12B6 24183 OIML R60 C3 $427.00 20 t H8-C3-20t-12B6 24184 OIML R60 C3 $515.00 30 t H8-C3-30t-12B6 24186 OIML R60 C3 $1,158.00 50 t H8-C3-50t-12B6 24187 OIML R60 C3 $1,677.00 DIMENSIONSOutline dimensions.

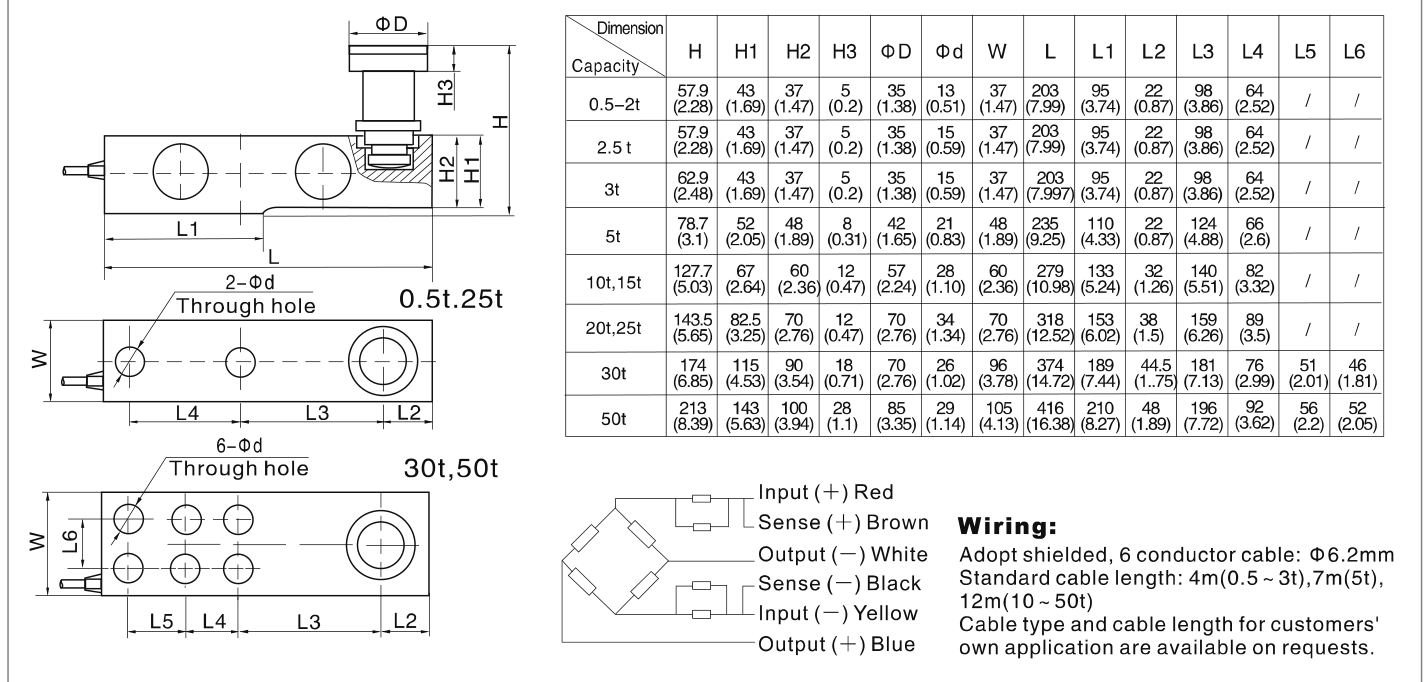

Source: Zemic H8 datasheet Signal Analog Protection class IP67 Material Alloy Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Input impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 351 ± 2.0 Ω Rated capacity 25 t Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.0 %FS Manufacturer Zemic Accuracy C3 Number of Wires 6 wires Manufacturer's Part Number H8-C3-25t-12B6 Approval OIML R60 C3 Short name H8-25t C3 Shear Beam Load Cell Hero chips IP67; Alloy Steel; Analog signal; OIML R60 C3; 6 wires
