Zemic HM9C 40000 lb Double-Ended Shear Beam Load Cell (HM9C-N10-40K-9.3B)
Zemic · Load cell

HM9C-40K lb N10 Double-Ended Shear Beam Load Cell

SKU 24214
IP68; Nickel-Plated Alloy Steel; Analog signal; 4 wires
752.00
$752.00
  • 24214 - Zemic HM9C 40000 lb Double-Ended Shear Beam Load Cell (HM9C-N10-40K-9.3B)
  • Type: Double-Ended Shear Beam Load Cell
  • Manufacturer part number: HM9C-N10-40K-9.3B
  • Capacity: 40000 lb
  • Material: Nickel-Plated Alloy Steel
  • Protection: IP68

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 03Double-Ended Shear Beam Load Cell

    Double-Ended Shear Beam Load Cell for confirmed-fit replacement and scale builds.

    The Zemic HM9C-N10-40K-9.3B is the 40000 lb capacity Zemic HM9C, a hermetically sealed dual shear beam load cell, optimized for mechanical shock load resistance, for onboard, truck and rail scales and other heavy weighing devices such as silos, manufactured in nickel-plated alloy steel with IP68 ingress protection.

    40000 lb
    Rated capacity
    Nickel-Plated Alloy Steel
    Material
    IP68
    Protection
    02 / 03Technical data

    Verified specifications for this SKU.

    ManufacturerZemic
    Manufacturer part numberHM9C-N10-40K-9.3B
    Capacity40000 lb
    Approval—
    Rated output3.0 ± 0.008 mV/V
    Dimensions260.4 × Ø76.2 mm
    MaterialNickel-plated alloy steel, hermetically sealed
    ProtectionIP68 (EN 60529)
    SignalAnalog
    Input resistance700 ± 7 Ω
    Output resistance703 ± 4 Ω
    Insulation resistance≥ 5000 MΩ @ 50 VDC
    Zero balance≤ ±1.0 %FS
    Compensated temperature−10 to +40 °C
    Operating temperature−35 to +65 °C
    Recommended excitation5 to 12 VDC
    Maximum excitation18 VDC
    Safe overload150 %FS
    Ultimate overload300 %FS
    WiringExcitation (+) red, Signal (−) white, Excitation (−) black, Signal (+) green
    Accuracy classN10
    Maximum verification intervals (nmax)10000
    Cable4-conductor shielded polyurethane, AWG 22, Ø8 mm, shield not connected to the element
    Mounting2 × Ø26.9 mm through holes
    03 / 03Part number reference

    Order code and fit FAQ.

    ProductOrder code
    Zemic HM9C 40000 lb Double-Ended Shear Beam Load Cell (HM9C-N10-40K-9.3B)24214

    Is the SKU enough to confirm replacement?

    Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

    Can WeightechUSA help identify a match?

    Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

    Talk to a WeightechUSA load-cell specialist.

    Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

    Email SalesView DatasheetCall +1 (954) 666-0877 × 305
    CAPACITY TABLE

    Other HM9C capacities.

    CapacityManufacturer part numberSKUApprovalPrice
    20000 lbHM9C-N10-20K-9.3B—$527.00
    30000 lbHM9C-N10-30K-9.3B—$670.00
    50000 lbHM9C-N10-50K-9.3B—$670.00
    60000 lbHM9C-N10-60K-9.3B—$670.00
    DIMENSIONS

    Outline dimensions.

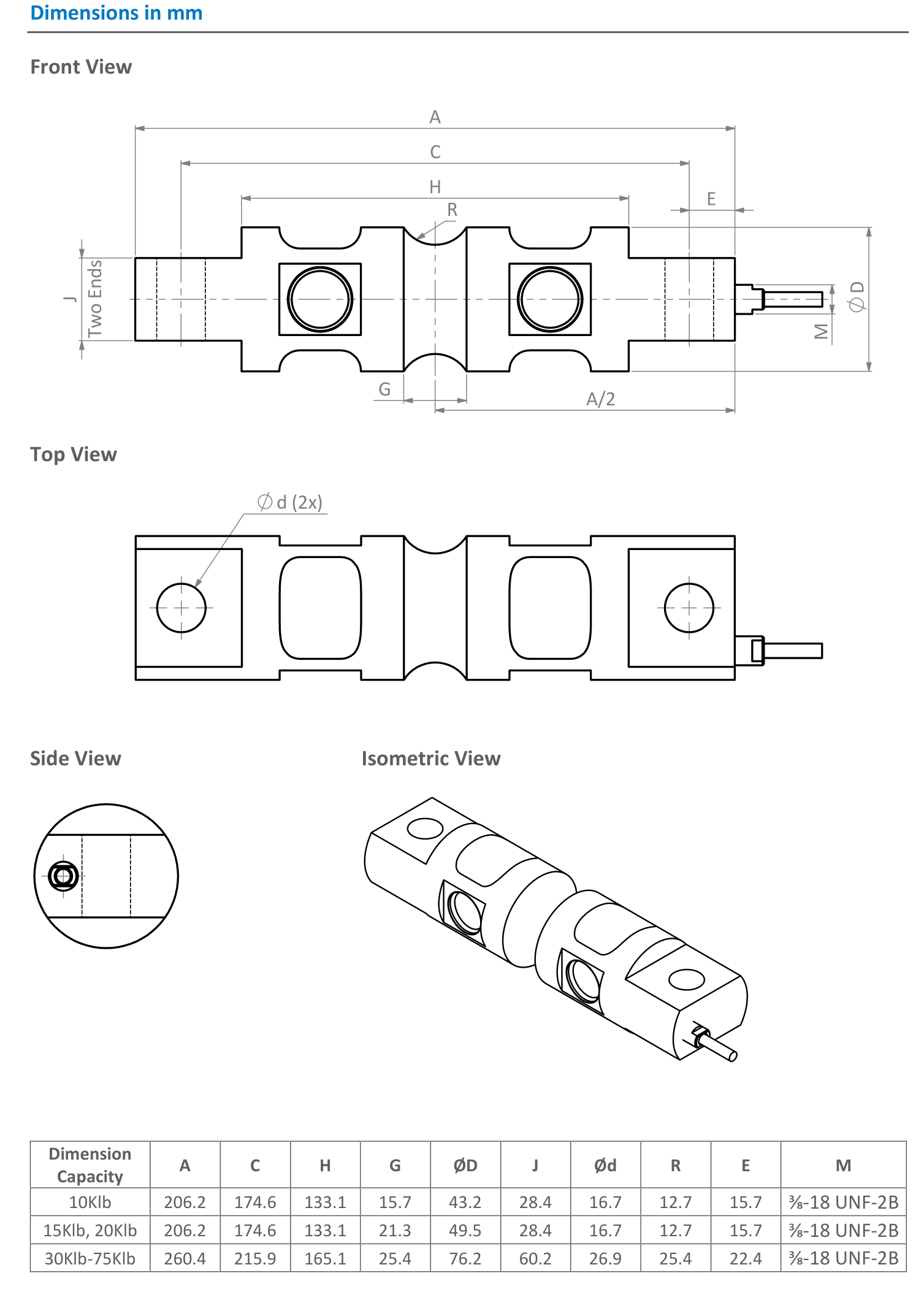

    Zemic HM9C 40000 lb Double-Ended Shear Beam Load Cell (HM9C-N10-40K-9.3B) outline dimensions drawing
    Source: Zemic HM9C datasheet
