L6T-50kg C3 Single Point Load CellZemic L6T 50 kg Single Point Load Cell (L6T-C3-50kg-3B6)
SKU 24059
IP65; Aluminum; Analog signal; OIML R60 C3; 6 wires
338.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Zemic L6T-C3-50kg-3B6 is the 50 kg capacity Zemic L6T, a parallel-beam single point load cell for electronic pricing scales, electronic platform scales and other electronic weighing devices, manufactured in aluminum with IP65 ingress protection. This model is OIML R60 C3.
50 kgRated capacityAluminumMaterialIP65Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number L6T-C3-50kg-3B6 Capacity 50 kg Approval OIML R60 C3 Rated output 2.0 ± 0.2 mV/V Dimensions 191 × 76.2 × 75.4 mm Material Aluminum, anodized, silicone-sealed parallel beam Protection IP65 Signal Analog Input resistance 409 ± 6 Ω Output resistance 350 ± 3 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 2 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Corner (eccentric load) correction 0.02 % of load value per 100 mm Cable 6-conductor shielded PVC, 3 ± 0.1 m, 5.0 ± 0.2 mm diameter Wiring Input (+) red, Sense (+) blue, Output (−) white, Sense (−) brown, Input (−) black, Output (+) green Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/7000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.0167 %FS Temperature effect on sensitivity ≤ ±0.0175 %FS/10 °C Temperature effect on zero ≤ ±0.020 %FS/10 °C Maximum platform size 600 × 600 mm Mounting 8 × M6 threaded holes, 15 mm deep (4 per end) 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic L6T 50 kg Single Point Load Cell (L6T-C3-50kg-3B6) 24059 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther L6T capacities.

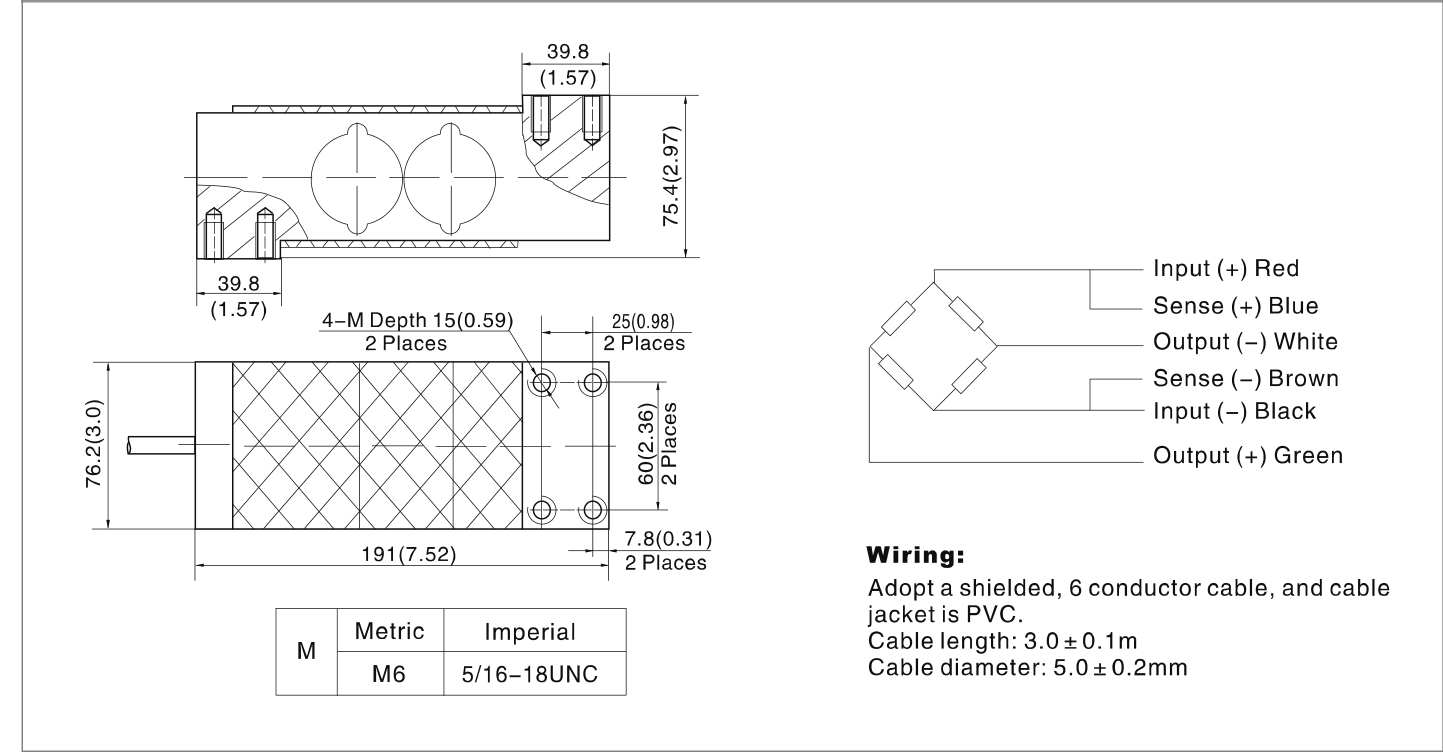

Capacity Manufacturer part number SKU Approval Price 75 kg L6T-C3-75kg-3B6 24060 OIML R60 C3 $338.00 100 kg L6T-C3-100kg-3B6 24061 OIML R60 C3 $338.00 150 kg L6T-C3-150kg-3B6 24062 OIML R60 C3 $338.00 200 kg L6T-C3-200kg-3B6 24063 OIML R60 C3 $338.00 250 kg L6T-C3-250kg-3B6 24064 OIML R60 C3 $338.00 300 kg L6T-C3-300kg-3B6 24065 OIML R60 C3 $338.00 500 kg L6T-C3-500kg-3B6 24066 OIML R60 C3 $338.00 635 kg L6T-C3-635kg-3B6 24067 OIML R60 C3 $338.00 1000 kg L6T-C3-1000kg-3B6 24068 OIML R60 C3 $338.00 50 kg L6T-C3-50kg-3YB6 24069 OIML R60 C3 $338.00 75 kg L6T-C3-75kg-3YB6 24070 OIML R60 C3 $338.00 100 kg L6T-C3-100kg-3YB6 24071 OIML R60 C3 $338.00 150 kg L6T-C3-150kg-3YB6 24072 OIML R60 C3 $338.00 200 kg L6T-C3-200kg-3YB6 24073 OIML R60 C3 $338.00 250 kg L6T-C3-250kg-3YB6 24074 OIML R60 C3 $338.00 300 kg L6T-C3-300kg-3YB6 24075 OIML R60 C3 $338.00 500 kg L6T-C3-500kg-3YB6 24076 OIML R60 C3 $338.00 635 kg L6T-C3-635kg-3YB6 24077 OIML R60 C3 $338.00 1000 kg L6T-C3-1000kg-3YB6 24078 OIML R60 C3 $338.00 DIMENSIONSOutline dimensions.
Source: Zemic L6T datasheet Signal Analog Protection class IP65 Material Aluminum Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0167 %FS / 30 min (C3) Eccentric loading error 0.02 %LD/100 mm Input impedance 409 ± 6 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Max platform size 600 × 600 mm Operating temp range −35 to +65 °C Output impedance 350 ± 3 Ω Rated capacity 50 kg Rated output 2.0 ± 0.2 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 2 %FS Manufacturer Zemic Accuracy C3 Number of Wires 6 wires Manufacturer's Part Number L6T-C3-50kg-3B6 Approval OIML R60 C3 Short name L6T-50kg C3 Single Point Load Cell Hero chips IP65; Aluminum; Analog signal; OIML R60 C3; 6 wires
