BLCQ Double-Ended Beam Load CellBerman BLCQ Double-Ended Beam Load Cell
SKU Berman-BLCQ
IP68; Alloy Steel; Analog signal; 4 wires
375.00
- Description
- Additional Information
- 01 / 02Double-Ended Beam Load Cell
Berman BLCQ double-ended beam load cell family.
The Berman BLCQ is a double-ended beam load cell family. This page describes the family; use the table below to select the SKU your application requires.
30,000 kg – 40,000 kgKg-line capacity rangeAlloy steelMaterial02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Material Alloy steel Protection IP68 (EN 60529) Signal Analog Input impedance 750 ± 10 Ω Output impedance 703 ± 2 Ω Insulation resistance ≥ 5000 MΩ Zero balance ± 1 %FS Compensated temperature −10 to +40 °C Operating temperature −30 to +70 °C Recommended excitation 5 ~ 12 VDC Maximum excitation 15 VDC Safe overload 150 %FS Lateral load limit 300 %FS CAPACITY TABLEAvailable capacities.

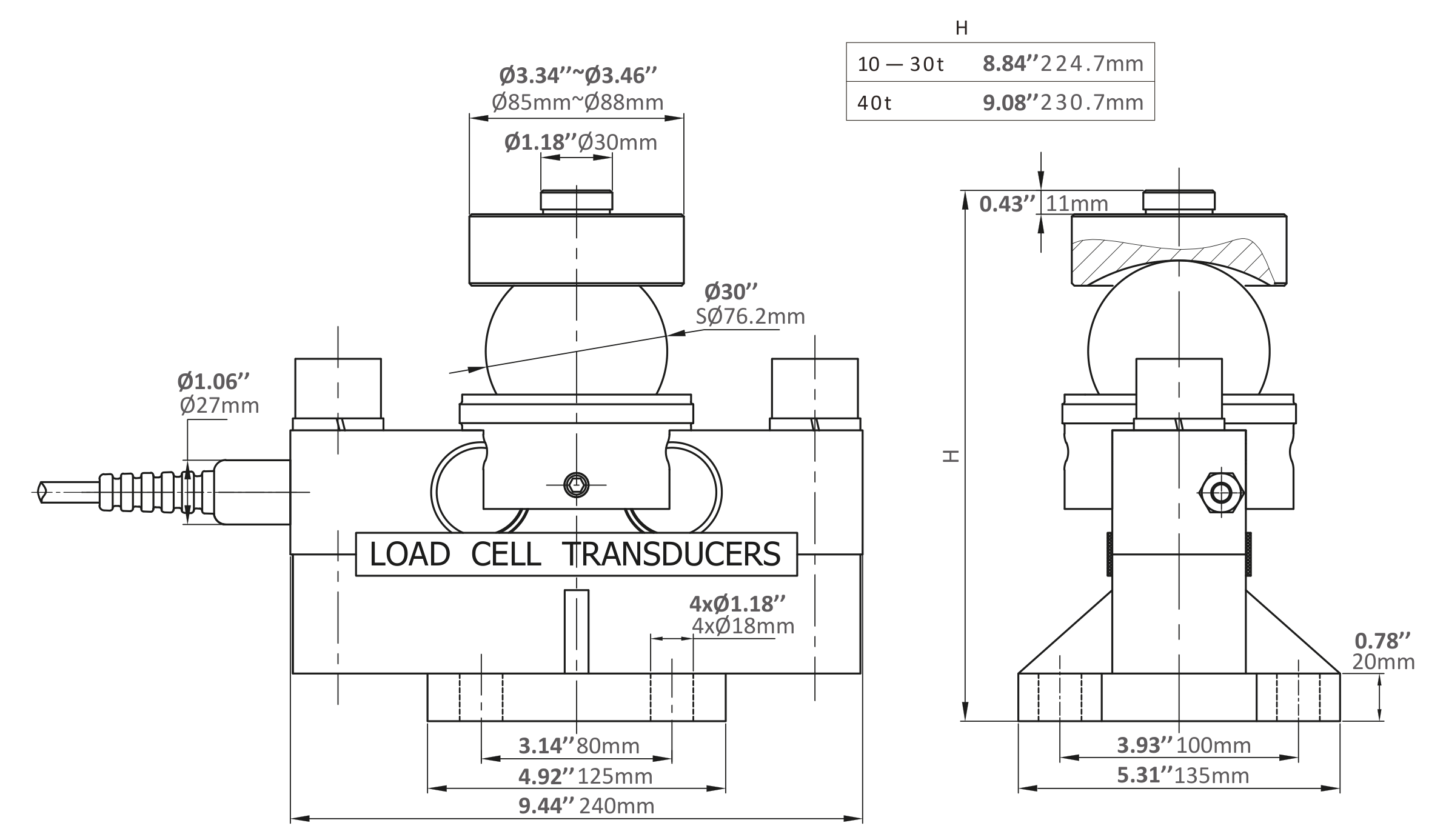

Capacity Manufacturer part number SKU Approval Price 30 t BLCQ-30T 10561 — $339.00 40 t BLCQ-40T 10562 — $375.00 DIMENSIONSOutline dimensions.
Source: Berman BLCQ datasheet (WeightechUSA) Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which BLCQ SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Alloy Steel Combined error ≤ ±0.03 %FS Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.02 % / 30 min Input impedance 750 ± 10 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Maximum excitation 15 VDC Maximum safe overload 150 %FS Operating temp range −30 to +70 °C Output impedance 703 ± 2 Ω Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Zero balance ± 1 %FS Manufacturer Berman Weighing Technology Number of Wires 4 wires Short name BLCQ Double-Ended Beam Load Cell Hero chips IP68; Alloy Steel; Analog signal; 4 wires
