Zemic BM14D 30 t Compression Load Cell (BM14D-C2-30t-20B)
Zemic · Load cell

BM14D-30t C2 Compression Load Cell

SKU 24265
IP68; Stainless Steel; Analog signal; 4 wires
2,839.00
$2,839.00
  • 24265 - Zemic BM14D 30 t Compression Load Cell (BM14D-C2-30t-20B)
  • Type: Compression Load Cell
  • Manufacturer part number: BM14D-C2-30t-20B
  • Capacity: 30 t
  • Material: Stainless Steel
  • Protection: IP68

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 03Compression Load Cell

    Compression Load Cell for confirmed-fit replacement and scale builds.

    The Zemic BM14D-C2-30t-20B is the 30 t capacity Zemic BM14D, a stainless steel column compression load cell with threaded studs, an anti-reversal design and good self-aligning ability, for electronic platform scales, automobile testing facilities, hopper scales, other electronic weighing devices and force measurement, manufactured in stainless steel with IP68 ingress protection.

    30 t
    Rated capacity
    Stainless Steel
    Material
    IP68
    Protection
    02 / 03Technical data

    Verified specifications for this SKU.

    ManufacturerZemic
    Manufacturer part numberBM14D-C2-30t-20B
    Capacity30 t
    Rated output1.5 ± 0.003 mV/V
    DimensionsØ88.9 × 200 mm
    MaterialStainless steel, hermetically welded
    ProtectionIP68
    SignalAnalog
    Input resistance700 ± 7 Ω
    Output resistance703 ± 4 Ω
    Insulation resistance≥ 5000 MΩ @ 50 VDC
    Zero balance1.0 %FS
    Compensated temperature−10 to +40 °C
    Operating temperature−35 to +65 °C
    Recommended excitation5 to 12 VDC
    Maximum excitation18 VDC
    Safe overload150 %FS
    Ultimate overload300 %FS
    Cable4-conductor shielded, 20 m, 7.7 mm diameter
    WiringInput (+) red, Output (−) white, Input (−) black, Output (+) green
    Accuracy classC2
    Maximum verification intervals (nmax)2000
    Minimum verification interval (vmin)Emax/5000
    Combined error≤ ±0.030 %FS
    Creep (30 min)≤ ±0.024 %FS
    Temperature effect on sensitivity≤ ±0.017 %FS/10 °C
    Temperature effect on zero≤ ±0.023 %FS/10 °C
    Mounting2 × M42 × 3-6g threaded studs
    03 / 03Part number reference

    Order code and fit FAQ.

    ProductOrder code
    Zemic BM14D 30 t Compression Load Cell (BM14D-C2-30t-20B)24265

    Is the SKU enough to confirm replacement?

    Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

    Can WeightechUSA help identify a match?

    Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

    Talk to a WeightechUSA load-cell specialist.

    Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

    Email SalesView DatasheetCall +1 (954) 666-0877 × 305
    CAPACITY TABLE

    Other BM14D capacities.

    CapacityManufacturer part numberSKUPrice
    10 tBM14D-C2-10t-20B$1,940.00
    20 tBM14D-C2-20t-20B$1,940.00
    25 tBM14D-C2-25t-20B$2,530.00
    40 tBM14D-C2-40t-20B$3,542.00
    50 tBM14D-C2-50t-20B$3,542.00
    100 tBM14D-C2-100t-20B$5,735.00
    DIMENSIONS

    Outline dimensions.

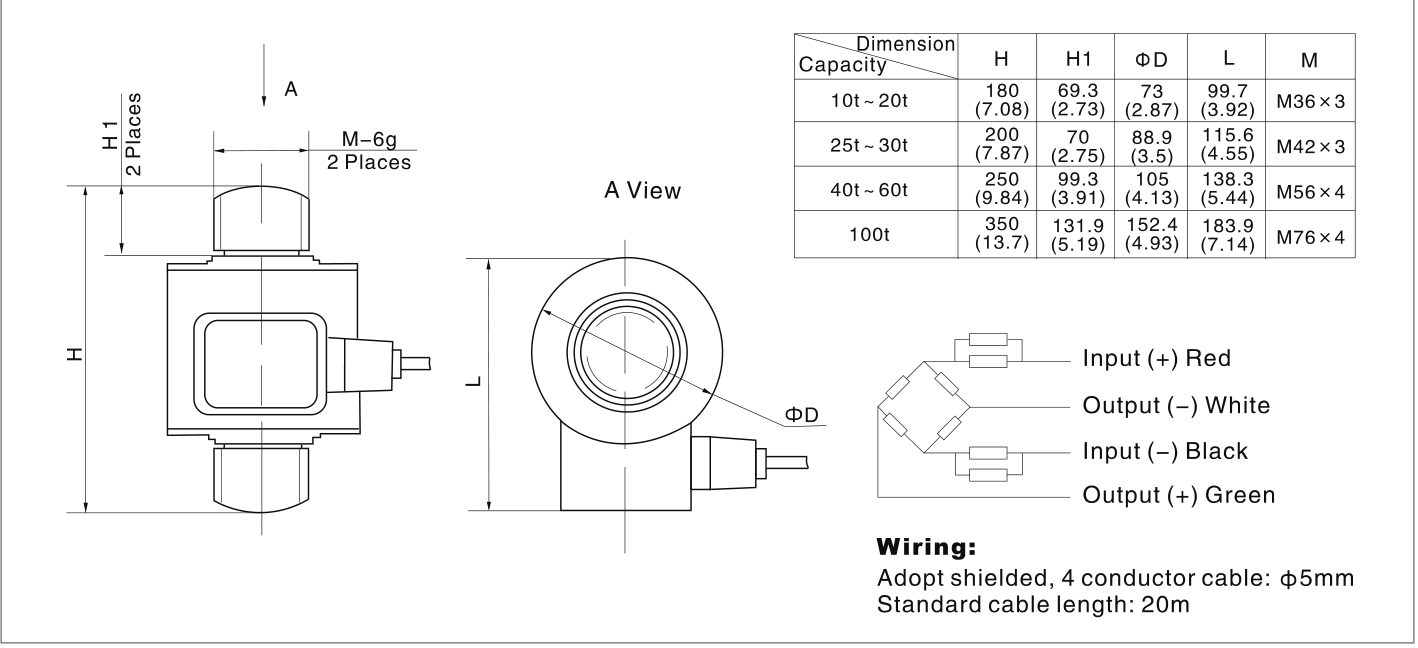

    Zemic BM14D 30 t Compression Load Cell (BM14D-C2-30t-20B) outline dimensions drawing
    Source: Zemic BM14D datasheet
